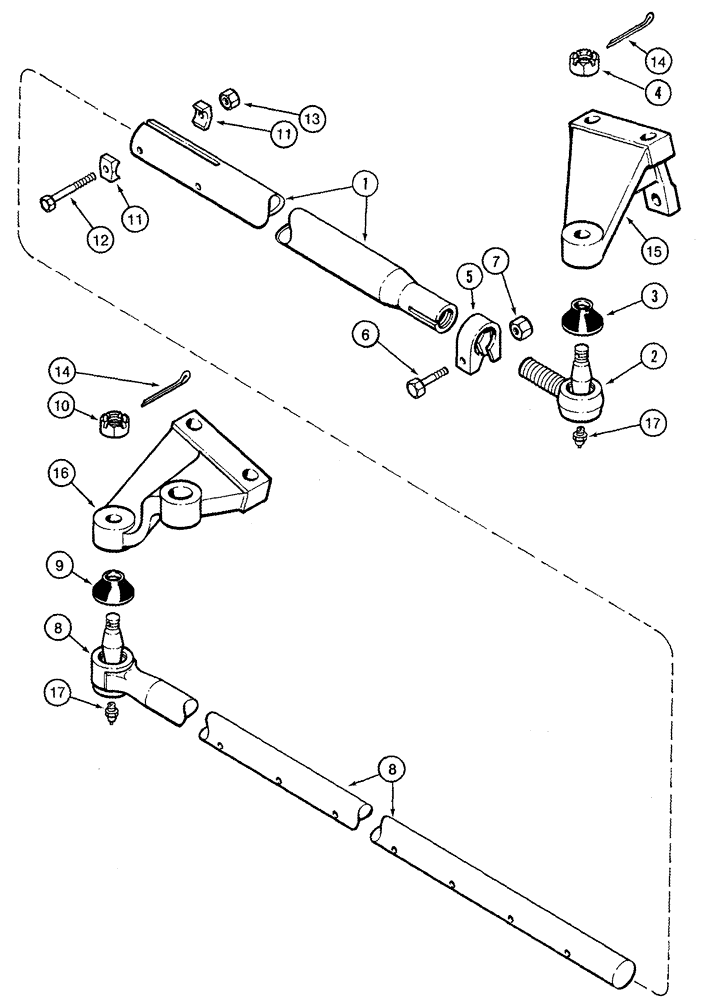

Запчасти Case IH 2388 (05-12) - AXLE, ADJUSTABLE - TIE ROD, STEERING BTW JJC0267150 & JJC0272999 (11) - TRACKS/STEERING

186139C92

DRAG LINK

Includes 1 - 13

1шт.

1

180801C1

TUBE

1шт.

2

359775A1

END ASSY.

RH, Includes 3, 4

1шт.

3

359773A1

BOOT

1шт.

4

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

446308C91

CLAMP

Includes 5 - 7

1шт.

5

1319476C91

CLAMP

1-1/2"

1шт.

6

426-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

1шт.

7

231-4137

LOCK NUT,7/16"-14, GB

1шт.

8

359774A1

TIE-ROD

LH, Includes 9, 10

1шт.

9

359773A1

BOOT

1шт.

10

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

11

A145857

CLAMP,9.91mm ID x 25.4mm OD x 7.365mm Thk

4шт.

12

326-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 8

2шт.

13

232-4136

LOCK NUT,3/8"-16, GC

2шт.

13a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

14

432-816

COTTER PIN,1/8" x 1"

2шт.

15

186639C1

LEVER

RH

1шт.

16

186641C1

LEVER

LH

1шт.
