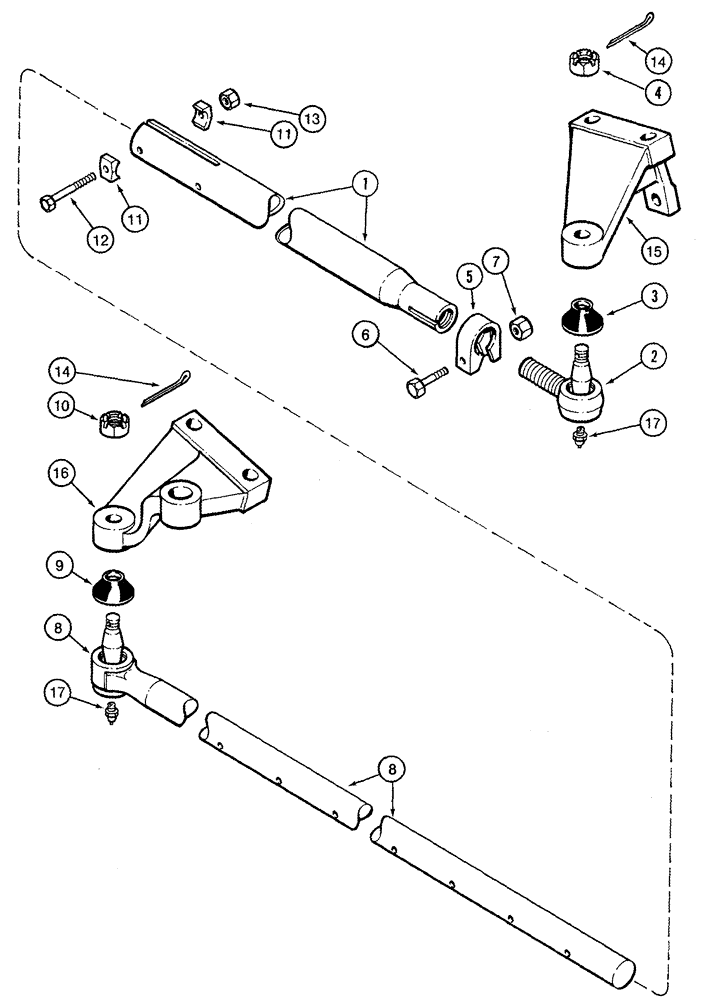

Запчасти Case IH 2388 (05-11) - AXLE, ADJUSTABLE - TIE ROD, STEERING BSN JJC0267149 (11) - TRACKS/STEERING

186139C91

DRAG LINK

Includes 1 - 13

1шт.

1

180801C1

TUBE

1шт.

2

A43376

JOINT

RH, Includes 3, 4

1шт.

3

A31186

BOOT

1шт.

4

358901R1

SLOTTED NUT

5/8" NF

1шт.

446308C91

CLAMP

Includes 5 - 7

1шт.

5

1319476C91

CLAMP

1-1/2"

1шт.

6

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

1шт.

7

231-4117

LOCK NUT,7/16"-14, GB

1шт.

8

180799C91

TIE-ROD

LH, Includes 9, 10

1шт.

9

A31186

BOOT

1шт.

10

358901R1

SLOTTED NUT

5/8" NF

1шт.

11

A43369

CLAMP

4шт.

12

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

2шт.

13

232-4636

LOCK NUT,3/8"-24, GC

2шт.

14

432-816

COTTER PIN,1/8" x 1"

2шт.

15

186639C1

LEVER

RH

1шт.

16

186641C1

LEVER

LH

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
