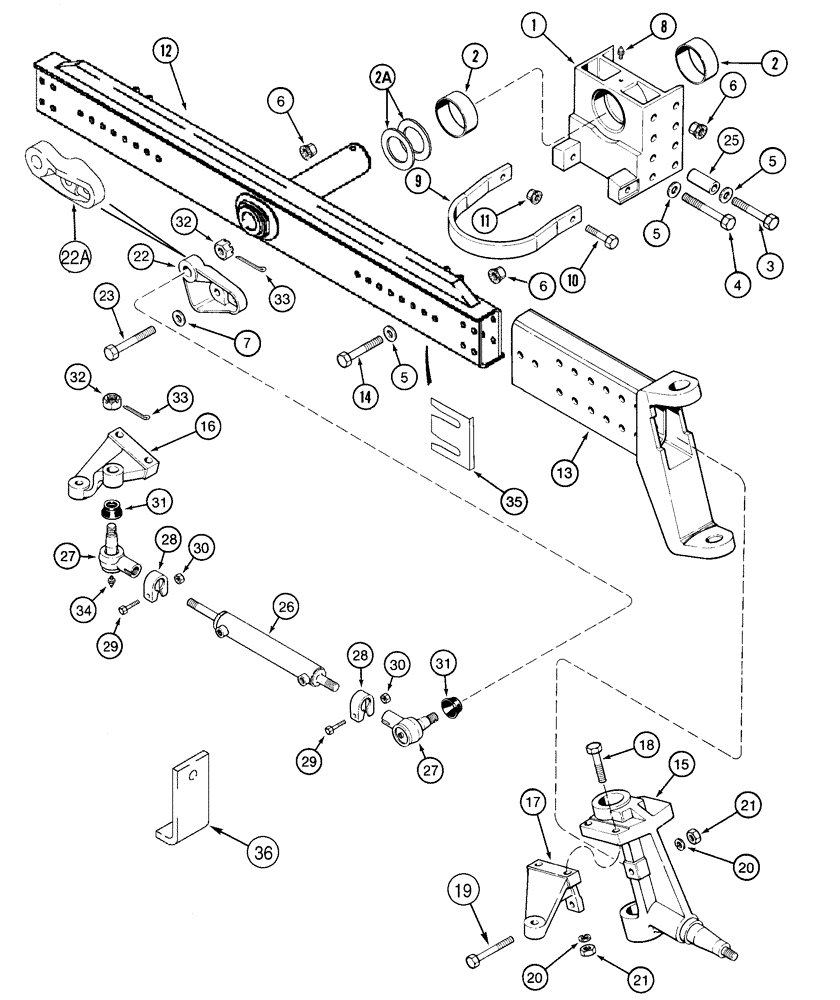

Запчасти Case IH 2388 (05-10) - AXLE, ADJUSTABLE STEERING, DUAL CYLINDER, ASN JJC0270500 (11) - TRACKS/STEERING

1

186599C94

SUPPORT

Axle Pivot, Includes 2

1шт.

With Hillside Option

1шт.

1a

386235A2

SUPPORT

Includes 2

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

2a

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

2шт.

3

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

3

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

4

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

12шт.

7

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

2шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

1302625C1

CHANNEL

Tow 249 mm wide, 13 mm Drop

1шт.

Use with 186599C94

1шт.

10

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2шт.

Use with 186599C94

1шт.

11

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

2шт.

Use with 186599C94

1шт.

12

321534A2

AXLE

Adjustable, Serial Range: 120-144"

1шт.

13

186045C4

AXLE

2шт.

14

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

8шт.

14

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

8шт.

15

REF

INSTRUCTION

Knuckle Assy, LH, See Figure 05-15

1шт.

15

REF

INSTRUCTION

Knuckle Assy, RH, See Figure 05-15

1шт.

16

358125A1

STEERING ARM

LH

1шт.

With 120 - 144" Adjustable Axle

1шт.

17

358126A1

ARM

RH, Serial Range: -JJC0272999

1шт.

With 120 - 144" Adjustable Axle

1шт.

17

412305A1

STEERING ARM

RH, Start Serial: JJC0273000

1шт.

With 120 - 144" Adjustable Axle

1шт.

18

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

4шт.

19

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

20

492-11062

BEARING WASHER,5/8"

6шт.

21

429-1010

NUT,5/8"-11, G8

6шт.

22

412304A1

ARM

Steering Cylinder, RH

1шт.

22a

316945A1

SUPPORT

1шт.

23

413-1292

BOLT,Hex, 3/4" -10 x 5-3/4", Gr 5

1шт.

25

177748C1

SPACER

13/16" x 1-1/4" x 2-13/16"

8шт.

26

127913C93

STEERING CYLINDER

See Figure 05-32

2шт.

27

437222A1

BALL JOINT

Includes 28 - 32

4шт.

28

446308C91

CLAMP

Includes 29, 30

1шт.

29

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

1шт.

30

231-4117

LOCK NUT,7/16"-14, GB

1шт.

31

87301009

BOOT

End

1шт.

32

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

33

432-824

COTTER PIN,1/8" x 1 1/2"

4шт.

33

432-1228

COTTER PIN,3/16" x 1 3/4"

4шт.

34

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

35

236028A2

SHIM,127mm OD x 0.9mm Thk

1шт.

36

365992A1

SHIM

Rear Axle, Top

2шт.

With 120 - 144" Adjustable Axle

1шт.
