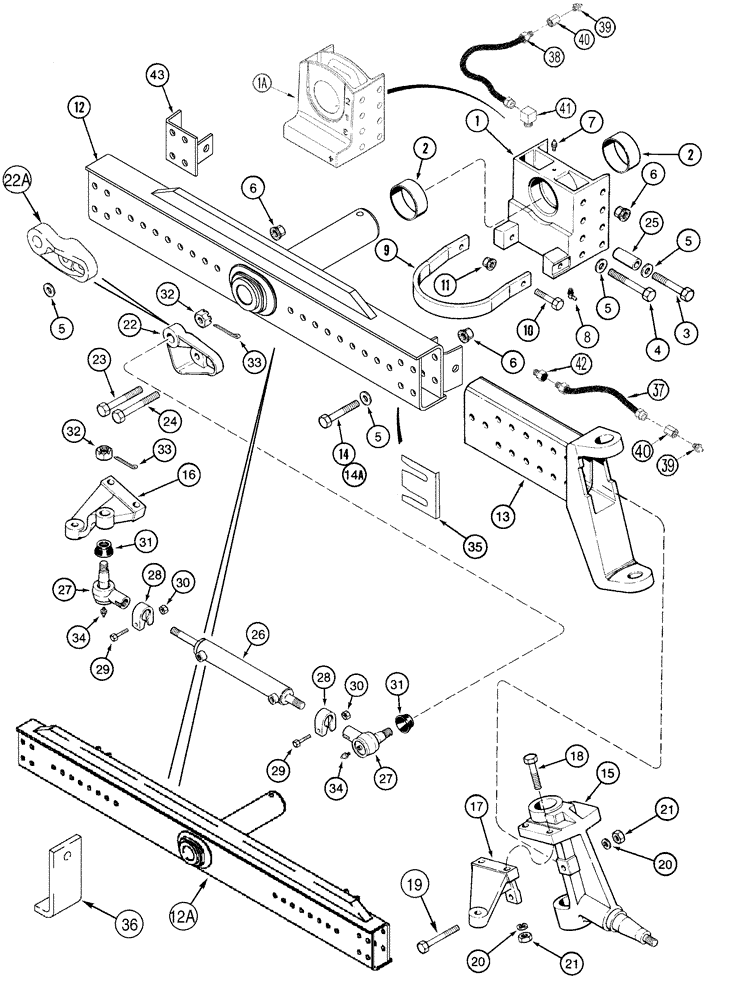

Запчасти Case IH 2388 (05-09) - AXLE, ADJUSTABLE STEERING, SINGLE CYLINDER, ASN JJC0270500 (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
1
186599C94
SUPPORT
Axle Pivot, Includes 2
1шт.
With Hillside Option
1шт.
1a
386235A2
SUPPORT
Includes 2
1шт.
2
177751C1
BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L
2шт.
3
326-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8
4шт.
3
326-1296
BOLT,Hex, 3/4" - 10 x 6", Gr 8
2шт.
4
326-1288
BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8
2шт.
5
496-21081
WASHER,13/16" x 1 1/2" x .179", HDN
1шт.
6
232-51312
FLANGE NUT,Flg, USR, 3/4"-10
1шт.
7
219-93
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
1шт.
8
219-87
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
9
1302625C1
CHANNEL
Tow 249 mm wide, 13 mm Drop, Serial Range: -JJC0268799
1шт.
Use with 186599C94
1шт.
Use with 186599C94
1шт.
11
232-51310
FLANGE NUT,Flg, USR, 5/8"-12
, Serial Range: -JJC0268799
2шт.
Use with 186599C94
1шт.
12
242643A2
AXLE
Adjustable, 92 - 120", Standard N.A. Before JJC0274396
1шт.
12
243747A2
AXLE
Adjustable, 92 - 120", Optional N.A. Before JJC0274450, Standard After JJC0274450, Standard Australia, Shown
1шт.
12a
321534A2
AXLE
Adjustable, Serial Range: 120-144"
1шт.
13
186045C4
AXLE
2шт.
14
413-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
2шт.
14
413-1288
BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5
Australia Only
2шт.
14a
413-1280
BOLT,Hex, 3/4" - 10 x 5", Gr 5
1шт.
15
417904A1
STEERING KNUCKLE
LH, See Figure 05-15, Serial Range: -JJC0274396
1шт.
15
185439C91
STEERING KNUCKLE
LH, See Figure 05-15, Start Serial: JJC0274450
1шт.
15
417903A1
STEERING KNUCKLE
RH, See Figure 05-15, Serial Range: -JJC0274396
1шт.
15
185440C91
STEERING KNUCKLE
RH, See Figure 05-15, Start Serial: JJC0274450
1шт.
16
186641C1
LEVER
LH, 5/8" Stud Threads, Order Kit 86987811 For 7/8" Conversion, Serial Range: -JJC0272999
1шт.
With 92 - 120" Adjustable Axle
1шт.
16
358125A1
STEERING ARM
LH, 7/8" Stud Threads, Start Serial: JJC0273000
1шт.
With 92 - 120" Adjustable Axle
1шт.
16
358125A1
STEERING ARM
LH
1шт.
With 120 - 144" Adjustable Axle
1шт.
17
186639C1
LEVER
RH, 5/8" Stud Threads, Order Kit 86987811 For 7/8" Conversion, Serial Range: -JJC0272999
1шт.
With 92 - 120" Adjustable Axle
1шт.
17
412305A1
STEERING ARM
RH, 7/8" Stud Threads, Start Serial: JJC0273000
1шт.
With 92 - 120" Adjustable Axle
1шт.
17
412305A1
STEERING ARM
RH, Replaces 358126A1
1шт.
With 120 - 144" Adjustable Axle
1шт.
18
326-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8
4шт.
19
326-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 8
2шт.
20
492-11062
BEARING WASHER,5/8"
6шт.
21
429-1010
NUT,5/8"-11, G8
6шт.
22
133319A1
SUPPORT
Steering Cylinder
1шт.
With 92 - 120" Adjustable Axle
1шт.
22a
316945A1
SUPPORT
Steering Cylinder
1шт.
With 120 - 144" Adjustable Axle
1шт.
23
413-1292
BOLT,Hex, 3/4" -10 x 5-3/4", Gr 5
1шт.
24
413-1284
BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5
1шт.
25
177748C1
SPACER
13/16" x 1-1/4" x 2-13/16"
8шт.
26
1958024C1
STEERING CYLINDER
Steering, See Figure 05-31, Serial Range: -JJC0274396
1шт.
87337226R
REMAN-HYD CYLINDER
2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540 Serial Range : -JJCO274396 ( 1/98 - 8/04 ) Reman For New P/N 1958024C1
1шт.
87337226C
CORE-HYD CYLINDER
Return Number
1шт.
26
127913C93
STEERING CYLINDER
Steering, See Figure 05-32, Start Serial: JJC0274450
1шт.
27
437222A1
BALL JOINT
Includes 28 - 34
2шт.
30
231-4117
LOCK NUT,7/16"-14, GB
1шт.
31
87301009
BOOT
End, Replaces 110373R1
1шт.
32
425-1314
SLOTTED NUT,7/8"-14, G5
1шт.
33
432-816
COTTER PIN,1/8" x 1"
1шт.
34
219-8
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
35
236028A2
SHIM,127mm OD x 0.9mm Thk
Shim
1шт.
36
365992A1
SHIM
Rear Axle, Top
2шт.
With 120 - 144" Adjustable Axle
1шт.
37
428853A1
FLEXIBLE HOSE
1282 mm (50")
1шт.
38
428285A1
FLEXIBLE HOSE
1129 mm (44")
1шт.
39
219-8
LUBE NIPPLE,1/4" - 28 NPTF
2шт.
40
F53473
LOCK NUT,1/8-27 NPSM
1/8"
2шт.
42
219-418
ADAPTER,1/4"-1/8 NPTF
1шт.
43
254425A1
SUPPORT
Axle Rod, Start Serial: JJC0274450
2шт.
86987811
SERVICE KIT
Service, 7/8" Stud Treads Conversion, Includes 16, 17, 18, 19, 21, 86984114, See Figure 05-13
1шт.
