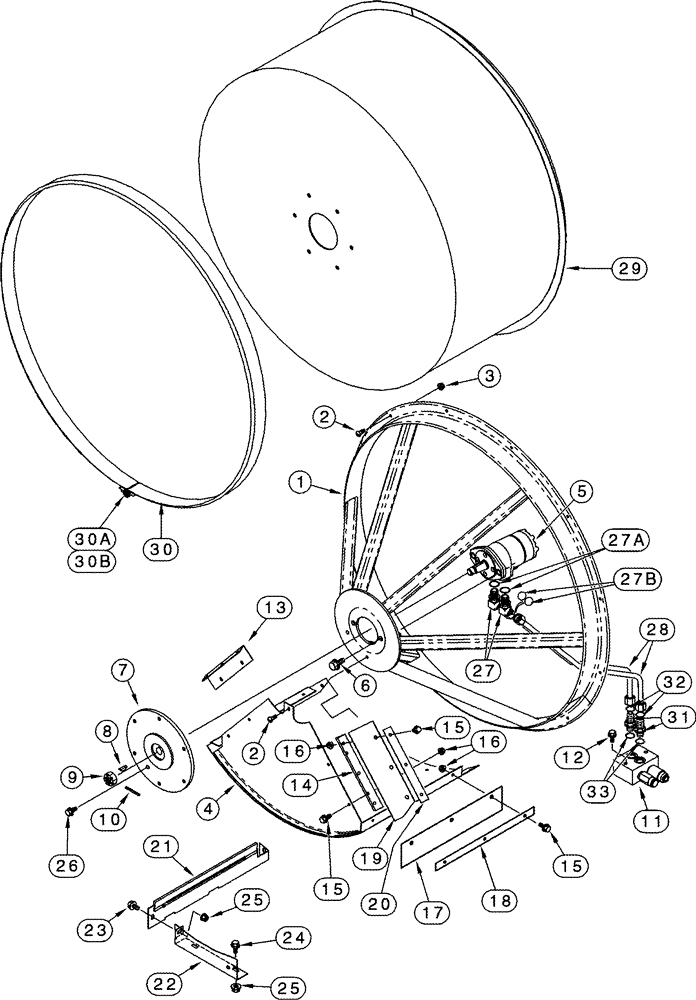

Запчасти Case IH 2388 (02-08) - ROTARY AIR SCREEN - BSN JJC0266000 (01) - ENGINE

1

257848A2

SUPPORT

1шт.

2

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

18шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

4

233256A3

BAFFLE

1шт.

5

258622A1

MOTOR, HYDRAULIC,97CC

See Figure 08-25

1шт.

6

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

7

194177A3

HUB

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

9

425-1212

SLOTTED NUT,3/4"-10, G5

1шт.

10

38-31016

PIN,5/32" x 1", Coiled

1шт.

11

327580A1

BY-PASS VALVE

See Figure(s) 08-25, 08-26

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

13

230213A1

ANGLE

LH

1шт.

14

230214A1

ANGLE

RH

1шт.

15

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

16шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

16шт.

17

233259A1

SEAL

2шт.

18

233260A1

SUPPORT

2шт.

19

194186A1

SEAL

Screen, Rear

2шт.

20

194184A1

BAR

2шт.

21

237046A1

CIRCULAR BRUSH

1шт.

22

229463A1

SUPPORT

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

24

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

26

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

27

201-377

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 27A, 27B, See Figure 08-25

2шт.

27a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

293604A1

HYD TUBE,0.5" OD, 625.4, 82.7 mm Length

See Figure 08-25

2шт.

29

345522A1

DUST SCREEN,Rotary

1шт.

30

326777A1

CIRCULAR BRUSH

Includes 30A, 30B

1шт.

30a

470-11016

SCREW,Pan HD, #10 - 24 x 1"

1шт.

30b

86625057

NUT,#10-24, GB

1шт.

31

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 32, 33

2шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
