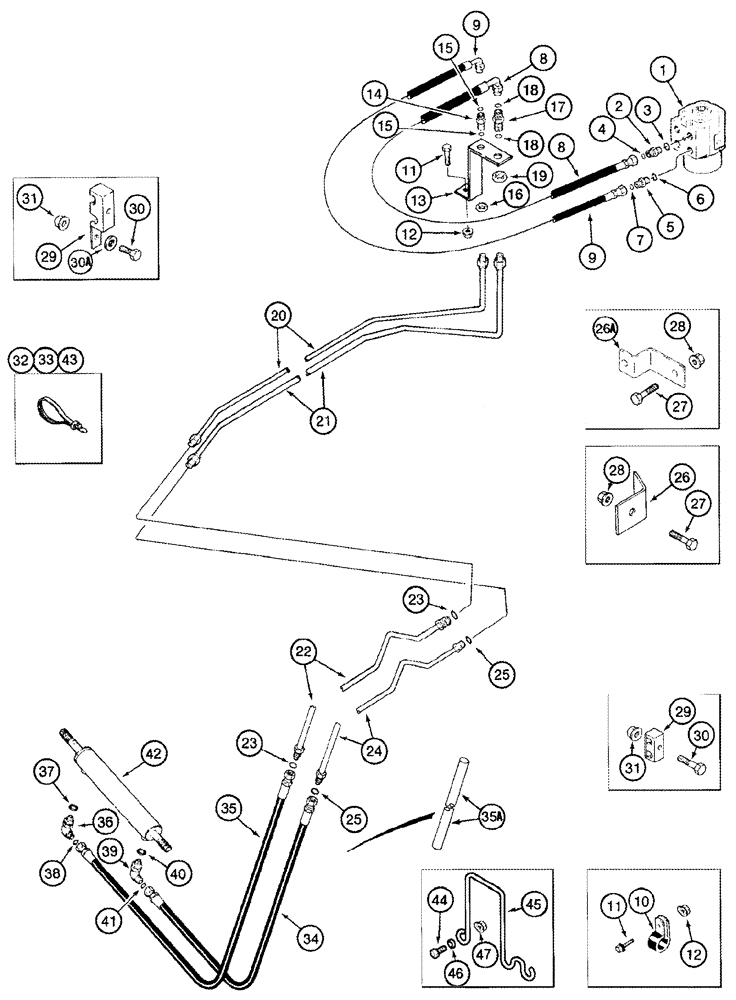

Запчасти Case IH 2388 (05-03) - HYDRAULICS - STEERING PUMP TO CYLINDER (11) - TRACKS/STEERING

1

123274A1

O-RING KIT

See Figure 05-04, Serial Range: -JJC0268799

1шт.

1

387542A1

HYDRAULIC VALVE

See Figure 05-05, Serial Range: JJC0268800-JJC0290799

1шт.

1

433742A1

HYDRAULIC VALVE

See Figure 05-05, Start Serial: JJC0290800

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

11/16 fc x 3/4 Or, Includes 6, 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

128017A2

FLEXIBLE HOSE

2670 mm (105"), LH Turn

1шт.

9

128019A2

FLEXIBLE HOSE

2670 mm (105"), RH Turn

1шт.

10

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

128539A1

SUPPORT

1шт.

14

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

Includes 15

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

17

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes 18

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

19

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

20

128571A1

TUBE,0.375" OD, 1911,264 mm Length

9.52 mm dia, Upper Front

1шт.

21

128572A1

TUBE,0.5" OD, 1696,984 mm Length

12.70 mm dia, Lower Front

1шт.

22

135941A1

HYD TUBE,0.375" Diameter, 802, 99 mm Length

Upper Rear, Serial Range: -JJC0268799

1шт.

22

364369A1

TUBE

Upper Rear JJC0268800 to

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

24

135942A1

HYD TUBE,0.5" Diameter, 769, 687 mm Length

Lower Rear, Serial Range: -JJC0268799

1шт.

24

364370A1

TUBE

Lower Rear JJC0268800 to

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

26

178960C1

BRACKET

, Serial Range: -JJC0268799

1шт.

, Start Serial: JJC0273000

1шт.

26a

196517C1

SUPPORT TUBE

1шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

28

231-5146

FLANGE NUT,3/8"-16

2шт.

29

1316613C1

CLAMP

Replaces 183825C1

5шт.

30

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

5шт.

30a

495-11028

WASHER,1/4", SAE

5шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

32

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" Tie

1шт.

33

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

34

128083A2

FLEXIBLE HOSE

1730 mm (68 in), To Cylinder Closed End

1шт.

With 92 - 120" Adjustable Axle

1шт.

34

128084A2

FLEXIBLE HOSE

1960 mm (77-1/8 in), To Cylinder Closed End

1шт.

With Power Guide Axle

1шт.

With 120 - 144" Adjustable Axle

1шт.

35

128088A2

FLEXIBLE HOSE

1960 mm (77 in), To Cylinder Rod End

1шт.

With 92 - 120" Adjustable Axle

1шт.

35

128091A2

FLEXIBLE HOSE

2160 mm (85 in), To Cylinder Rod End

1шт.

With Power Guide Axle

1шт.

With 120 - 144" Adjustable Axle

1шт.

35a

229298A1

BOOT

1шт.

36

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes 37, 38

1шт.

36

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

Dual Steering Cylinder, 12 Row Ready, See Figure 05-21

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

39

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 40, 41

1шт.

39

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Dual Steering Cylinder, 12 Row Ready, See Figure 05-21

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

1958024C1

STEERING CYLINDER

64 ID x 229 mm strk, See Figure 05-31, Single Steering Cylinder

1шт.

87337226R

REMAN-HYD CYLINDER

2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540 ( 1/98 - 8/04 ) Reman For New P/N 1958024C1 Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

42

127913C93

STEERING CYLINDER

57 ID x 229 mm strk, See Figure 05-32, Dual Steering Cylinder

2шт.

43

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 711 mm (28")

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

44

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

45

232707A1

GUIDE

1шт.

46

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

47

231-5146

FLANGE NUT,3/8"-16

2шт.
