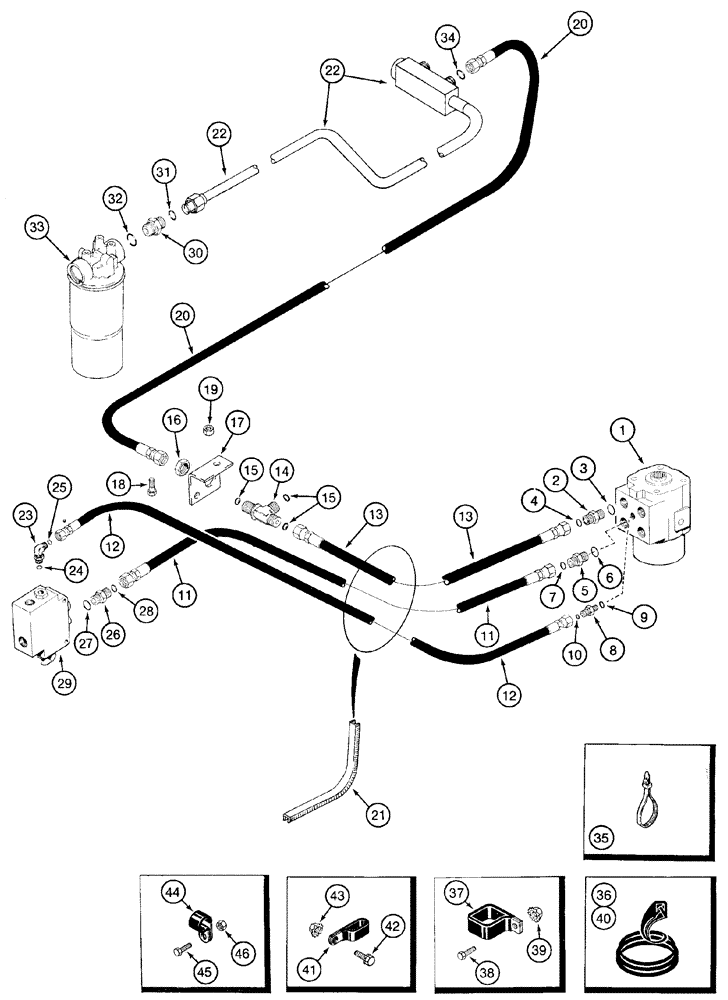

Запчасти Case IH 2388 (05-02) - HYDRAULICS - STEERING SUPPLY AND RETURN (11) - TRACKS/STEERING

1

123274A1

O-RING KIT

Steering, See Figure 05-04, Serial Range: -JJC0268799

1шт.

1

387542A1

HYDRAULIC VALVE

Steering, See Figure 05-05, Start Serial: JJC0268800

1шт.

1

433742A1

HYDRAULIC VALVE

Steering, See Figure 05-05, Start Serial: JJC0270500

1шт.

Use with Dual Axle Steering Cylinder

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

11/16 fc x 3/4 Or, Includes 6, 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Includes 9, 10

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

237430A1

FLEXIBLE HOSE

2160 mm (85-1/8"), Supply, Priority Valve to Steering Pump

1шт.

12

237432A1

FLEXIBLE HOSE

2235 mm (88"), Steering Signal, Pump to Priority Valve

1шт.

13

128009A2

HOSE

850 mm (33-1/2"), Return, at Steering, Serial Range: Pump-Filter

1шт.

14

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

Includes 15

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

16

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

17

305076A1

SUPPORT

Replaces 141130A1

1шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

20

237431A1

FLEXIBLE HOSE

1250 mm (49-1/4"), Return, at Manifold, Serial Range: Tube-Filter

1шт.

21

137818A1

GROMMET

210 mm (8-1/4"), Serial Range: -JJC0265305

1шт.

21

324826A1

GROMMET

294 mm (11-5/8") JJC0265306 to

1шт.

22

124380A1

TUBE

Manifold

1шт.

23

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Includes 24, 25

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 27, 28

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

114851A2

VALVE

See Figure 05-41

1шт.

30

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

Includes 31, 32

1шт.

31

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

32

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

33

87784C92

HYDRAULIC OIL FILTER

Return, See Figure 08-03

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" Tie

1шт.

35

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

1шт.

36

237682A1

PROTECTION STRIP

305 mm (12"), Cut from 1330108C2

1шт.

37

1301387C2

CLIP

2" ID, Square

1шт.

38

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

39

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

40

126046A1

GASKET,287.02mm L

292 mm (11-1/2"), Cut from 196707C1

1шт.

41

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

42

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

44

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

44

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

45

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

46

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
