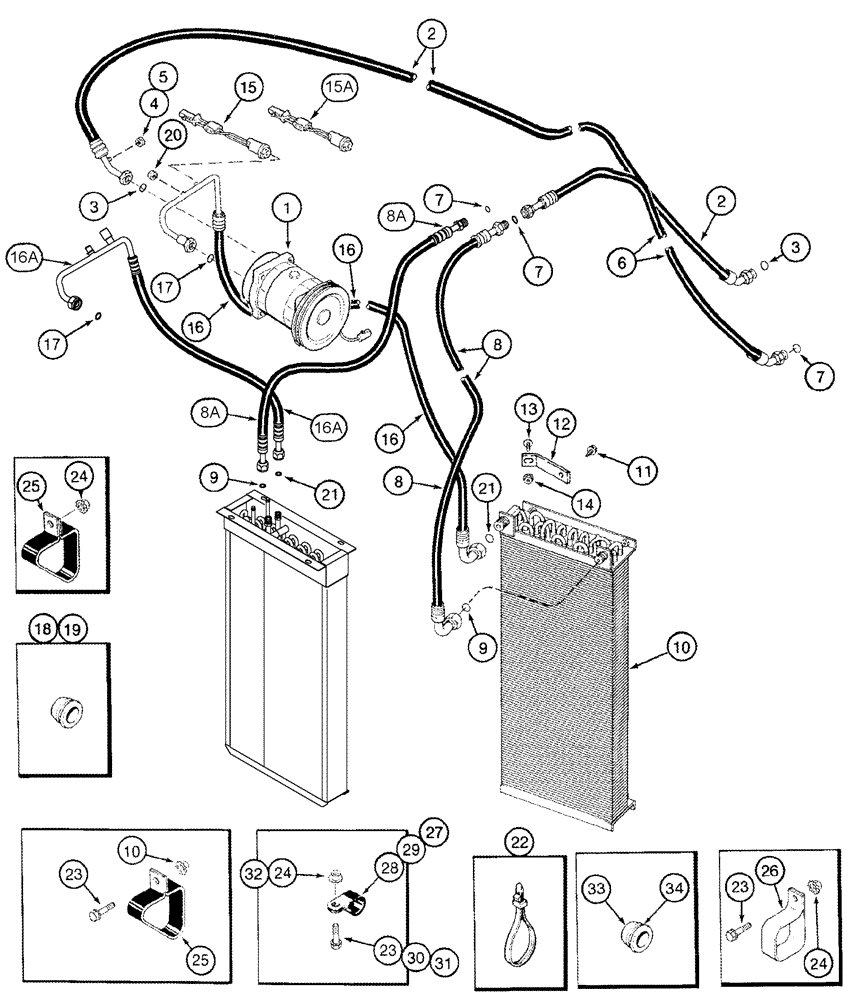

Запчасти Case IH 2388 (09G-24) - HEATER - AIR CONDITIONING - COMPRESSOR TO CONDENSER AND CAB/CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

86993462

AIRCOND. COMPRESSOR

See Figure 09G-25, Replaces 1999755C3

1шт.

1

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

1

86993462R

REMAN-COMPRESSOR

2388 BSN JJC0276540 (1/98-8/04)

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groosve Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

2

279158A1

HOSE

Includes 3 - 5

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16"

2шт.

4

1250594C1

CORE

1шт.

5

122553A1

CAP

1шт.

6

279159A1

HOSE

Includes 7

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16"

2шт.

8

279160A1

HOSE

Includes 9, Serial Range: -JJC0272999

1шт.

8a

87403249

HOSE,8mm ID x 4105mm L

Includes 9, Start Serial: JJC0273000

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16"

1шт.

10

275094A3

COOLER

Condenser

1шт.

11

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

12

197432A1

SUPPORT

2шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

15

232948A1

SWITCH, A/C HIGH PRE

, Serial Range: -JJC0267149

1шт.

15a

369798A2

SWITCH

High Pressure, Start Serial: JJC0267150

1шт.

16

279260A2

HOSE

Includes 17 - 21, Serial Range: -JJC0272999

1шт.

16a

87403250

HOSE

Includes 16A - 21, Start Serial: JJC0273000

1шт.

16b

414082A1

CORE

Valve, High Flow, Not Illustrated

1шт.

17

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16"

1шт.

18

1250594C2

CORE

1-2шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16"

1шт.

20

122554A1

CAP

, Serial Range: -JJC0272999

1шт.

20

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

, Start Serial: JJC0273000

1шт.

21

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16" ID x 1/16"

1шт.

22

702093C1

CABLE TIE

CABLE STRAP

1шт.

22

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" Tie

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15"

1шт.

23

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

23

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

25

1994983C2

CLAMP

3шт.

26

1301387C2

CLIP

2" ID, Square

4шт.

27

470375C1

CLAMP,1", Insul, 3/8" Bolt

2шт.

28

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

4шт.

29

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

1шт.

30

905-10020

BOLT,Hex Flg, M10 x 20mm

1шт.

31

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8" ID

1шт.

34

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4" ID

1шт.
