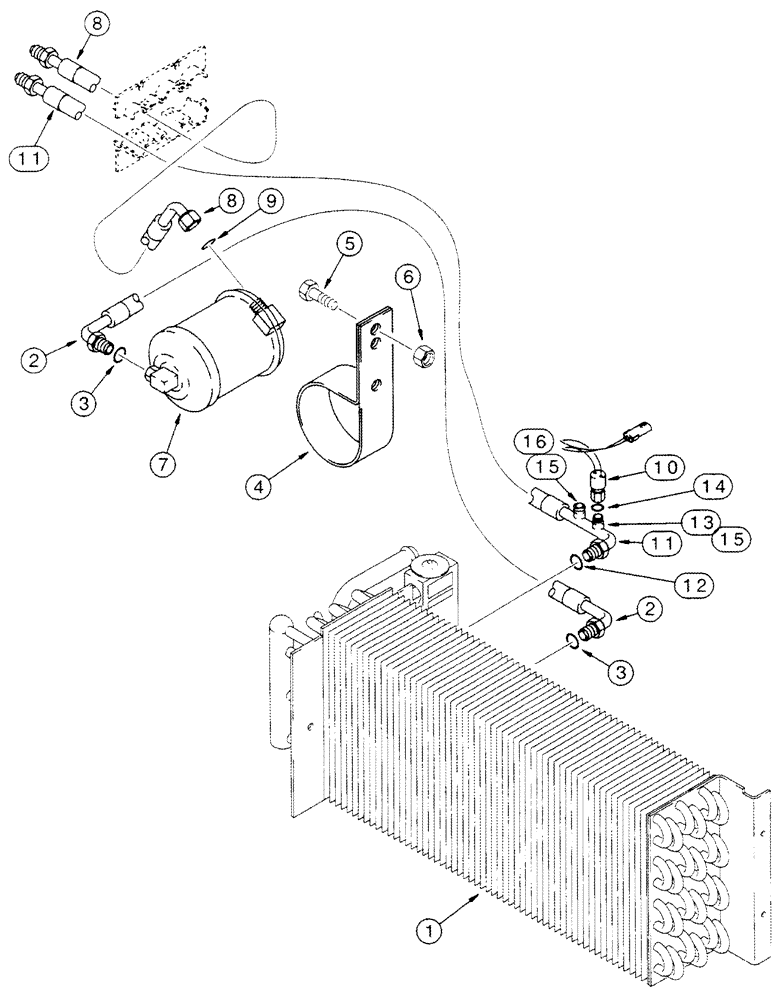

Запчасти Case IH 2388 (09G-23) - HEATER - AIR CONDITIONING - RECEIVER-DRYER SYSTEM - BSN JJC0267149 (10) - CAB & AIR CONDITIONING

1

121590A3

EVAPORATOR

See Figure 09G-18

1шт.

2

124912A1

LARGE HOSE

HOSE,LARGE 551 mm (21-3/4"), Includes 3, Serial Range: -JJC0270499

1шт.

2

124912A2

HOSE

540 mm (21-1/4"), Includes 3

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16"

2шт.

4

D145289

SUPPORT

1шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

6

829-1412

NUT,M12, Cl 10.9

2шт.

7

1990758C2

RECEIVER-DRYER

1шт.

8

124914A1

HOSE

662 mm (26-1/8"), Includes 9

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16"

1шт.

10

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

11

124913A2

HOSE

900 mm (35-7/16"), Includes 12 - 16

1шт.

12

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16"

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting

1шт.

14

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16"

1шт.

15

1250594C1

CORE

2шт.

16

122553A1

CAP

1шт.
