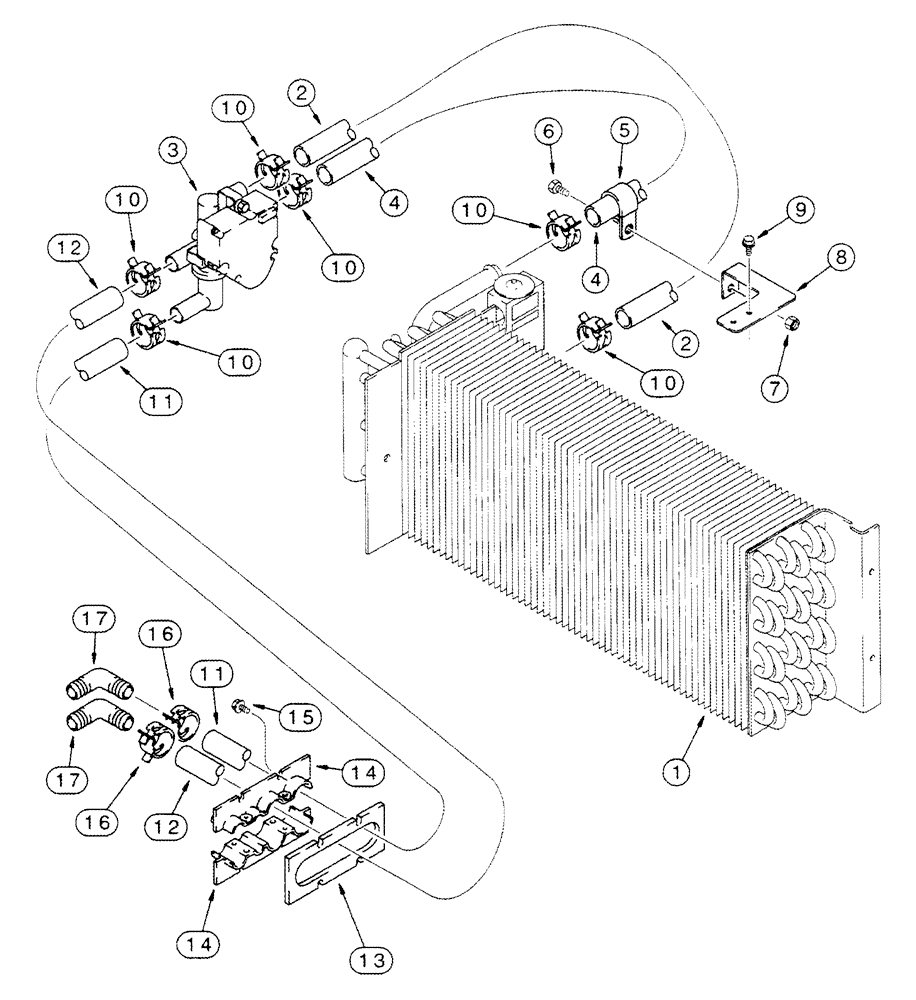

Запчасти Case IH 2388 (09G-21) - HEATING SYSTEM - EVAPORATOR CORE TO CAB/CHASSIS CONNECTIONS - BSN JJC0267149 (10) - CAB & AIR CONDITIONING

1

121590A3

EVAPORATOR

See Figure 09G-18

1шт.

2

141148A1

HOSE,15.50 mm ID x 247.60 mm

1шт.

3

141336A2

CONTROL VALVE

1шт.

4

141147A1

HOSE,15.50 mm ID x 190.30 mm

1шт.

5

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

6

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

181450A2

SUPPORT

Replaces 181450A1

1шт.

9

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

2шт.

10

1954736C1

HOSE CLAMP,#24

6шт.

11

1958774C1

HEATER HOSE

710 mm (28"), Cut from 97252CX

1шт.

12

121748A2

HEATER HOSE,15.50mm ID x 750mm L

1шт.

13

125000A2

GASKET

1шт.

14

125264A2

CLAMP

2шт.

15

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

8шт.

16

1954736C1

HOSE CLAMP,#24

2шт.

17

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.
