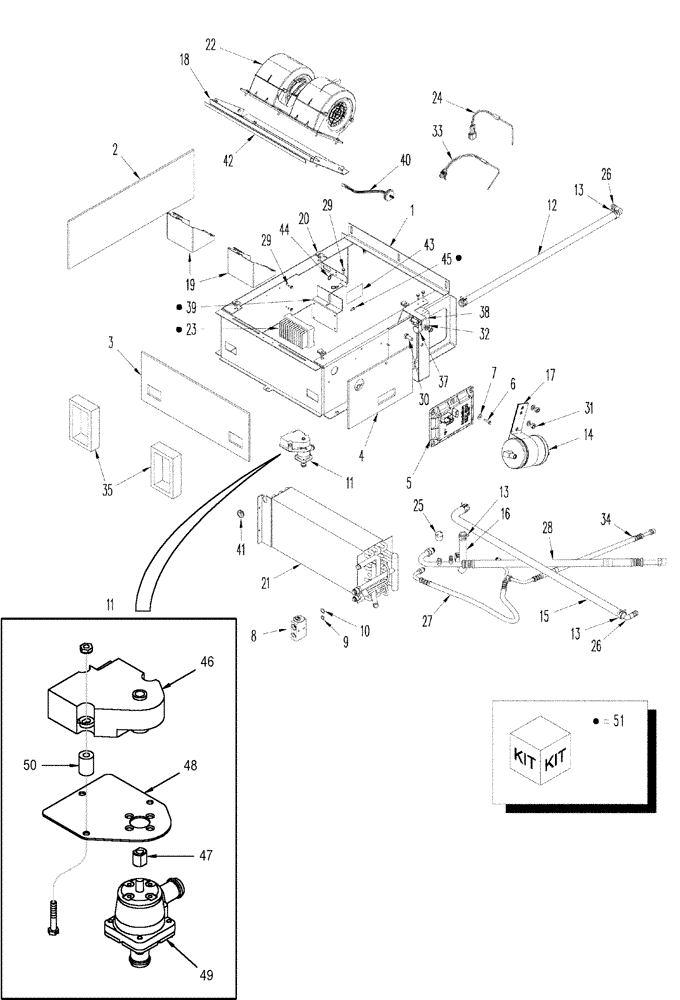

Запчасти Case IH 2388 (09G-20[02]) - BOX ASSY - AIR CONDITIONING, ASN JJC0270500 (10) - CAB & AIR CONDITIONING

431088A2

UNIT HEATER

Air Conditioning, Includes 1 - 45

1шт.

1

377374A1

SUPPORT

Air Conditioning Module

1шт.

2

279230A2

INSULATOR

RH

1шт.

3

279233A1

INSULATOR

Front

1шт.

4

377557A1

INSULATOR

LH

1шт.

5

411438A1

CONTROL

1шт.

87429902R

REMAN-MODULE

2388 BSN JJC0276540 ASN JJC0270500 (1/98-8/04), Reman for New P/N 411438A1

1шт.

87429902C

CORE-MODULE

Return Number

1шт.

6

281-54516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

1шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

449221A1

BODY

Core Assy, Includes 8 - 10, 21

1шт.

8

386535A1

VALVE

Thermal Expansion

1шт.

9

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16" ID x 1/16"

1шт.

10

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16"

1шт.

11

427356A1

CONTROL VALVE

Heater, Includes 46 - 50

1шт.

12

1958774C1

HEATER HOSE

710 mm (28"), Cut from 97252CX

1шт.

13

1954736C1

HOSE CLAMP,#24

6шт.

14

1990758C2

RECEIVER-DRYER

1шт.

15

377551A1

HEATER HOSE,15.50 mm ID x 838.00 mm

Return

1шт.

16

377547A1

HOSE,15.50 mm ID

Valve to Core

1шт.

17

377562A1

BRACKET

Receiver-Drier

1шт.

18

377565A2

PLATE

Blower Mounting

1шт.

19

377563A1

BAFFLE

Deflector

2шт.

20

488837C1

SPRING NUT

5/16"

4шт.

21

377560A1

CORE-COMPRESSOR

Evaporator And Heater

1шт.

22

323610A1

BLOWER

1шт.

84222524R

REMAN-BLOWER

2388 BSN JJC0276540 AIR CONDITIONING, ASN JJC0270500 (1/98-8/04), Reman for New P/N 323610A1

1шт.

84222524C

CORE-BLOWER

Return Number

1шт.

23

393289A1

ECU

Blower Motor

1шт.

23

393289A1R

REMAN ELECT CONTROL

2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540, Blower Motor, ASN JJC0270500 (1/98-8/04)

1шт.

23

393289A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

24

197319A2

SENSOR

Cab Temperature

1шт.

25

284272A3

SWITCH, A/C LOW PRES

Air Conditioning

1шт.

26

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

27

124912A2

HOSE

540 mm (21-1/4")

1шт.

28

124913A2

HOSE

900 mm (35-7/16")

1шт.

29

281-54510

SELF-TAP SCREW,HWH, #10 - 24 x 5/8"

16шт.

30

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

32

892-11010

LOCK WASHER,M10

3шт.

33

184720A2

SENSOR

Temperature, Evaporator

1шт.

34

124914A1

HOSE

662 mm (26-1/8"), Receiver-Dryer to Cab Wall

1шт.

35

124999A1

GASKET

2шт.

36

377567A1

SEAL

8 ft, Not Illustrated

1шт.

37

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

38

377564A1

BRACKET

1шт.

39

431090A1

BRACKET

Blower Controller

1шт.

40

431091A1

WIRE HARNESS

Heating and Air Conditioning, See Figure 04-11

1шт.

41

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

1шт.

42

377566A1

GASKET

3 ft

1шт.

43

NSS

NOT SOLD SEPARAT

Plate, Decal Name, Kysor Logo

1шт.

44

377559A1

STRAP

2шт.

45

280-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

4шт.

46

275602A1

ACTUATOR

1шт.

47

427360A1

INSERT

Coupler

1шт.

48

427353A1

PLATE

Valve Mount

1шт.

49

427352A1

VALVE

Heater

1шт.

50

427354A1

SPACER

Actuator

3шт.

51

429866A1

KIT

Automatic Temperature Control Linear Driver, Also Includes (1) 394350A1, (1) 432276A1 & (1) 432277A1

1шт.
