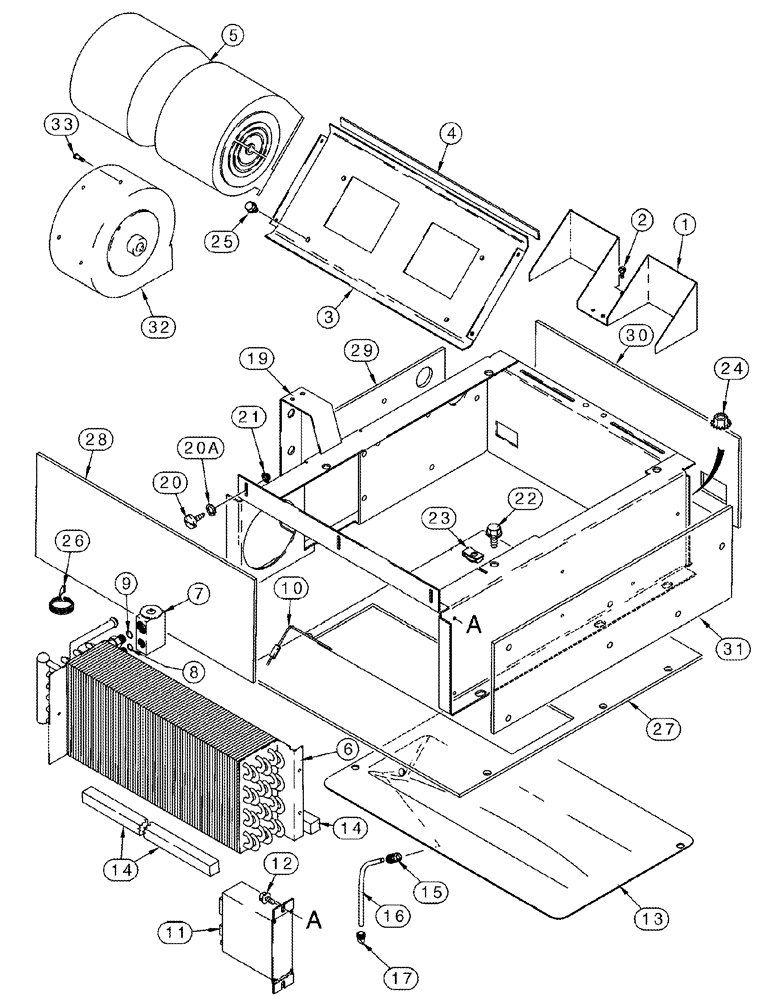

Запчасти Case IH 2388 (09G-18) - HEATER - AIR CONDITIONING - EVAPORATOR HEATER CORE AND BLOWER MOUNTING - BSN JJC0267149 (10) - CAB & AIR CONDITIONING

1

178910A1

DEFLECTOR

1шт.

2

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

4шт.

3

125066A1

PANEL

1шт.

4

1990257C1

SEALING STRIP

514 mm (20-1/4"), Cut from 187874C2

1шт.

5

1977564C2

BLOWER

1шт.

5

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

5

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

121590A3

EVAPORATOR

Includes 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Core

1шт.

7

1990756C2

VALVE

1шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16" ID x 1/16"

1шт.

9

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16"

1шт.

10

184720A2

SENSOR

Temperature, Evaporator

1шт.

10a

702093C1

CABLE TIE

CABLE STRAP Not Illustrated

1шт.

11

239951A2

CASE

1шт.

12

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

2шт.

13

121595A2

PAN

1шт.

14

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8"), Cut from 1971350C1

2шт.

15

1250522C3

FITTING

2шт.

16

122116A1

HEATER HOSE,12.95 mm ID x 1524.00 mm

Cut from Bulk

2шт.

17

109239C2

CHECK VALVE

2шт.

19

125875A5

SUPPORT

1шт.

20

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

3шт.

20a

492-11010

LOCK WASHER,#10

3шт.

21

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

22

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

786618C1

NUT

5/16"

4шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

25

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

6шт.

26

83822C1

TAPE

610 mm (24"), Cut from 1954475C1

1шт.

27

279438A1

INSULATOR

Center Floor

1шт.

28

279305A2

INSULATOR

Rear Wall

1шт.

29

279232A2

INSULATOR

LH

1шт.

30

279233A1

INSULATOR

Center

1шт.

31

279230A2

INSULATOR

RH

1шт.

32

175435A3

BLOWER

Pressurizer

1шт.

33

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

5шт.
