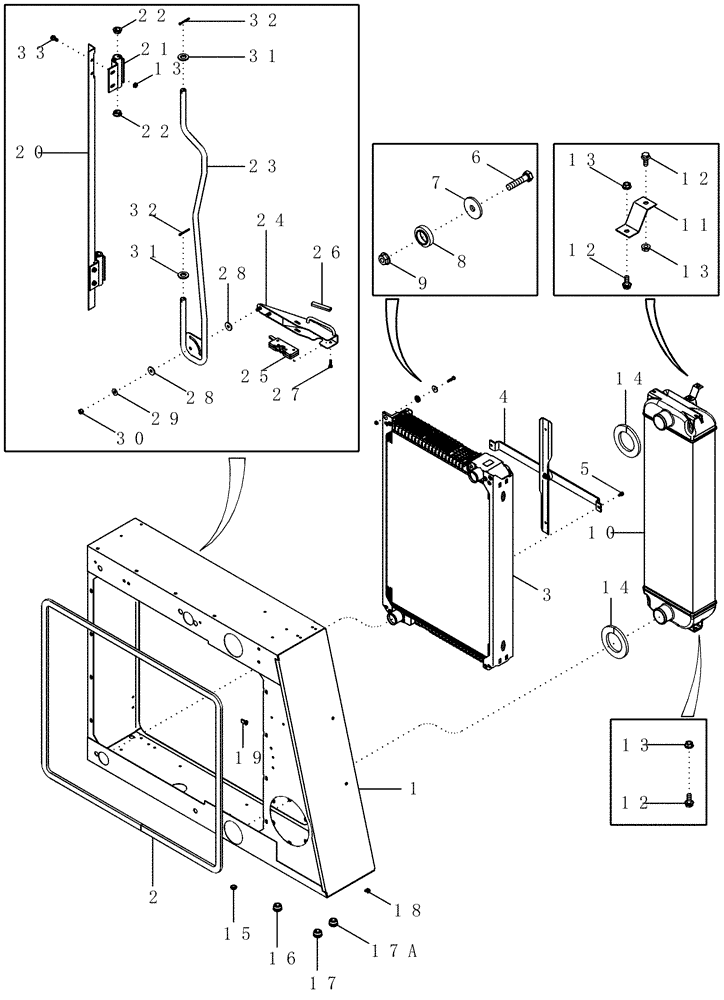

Запчасти Case IH 2388 (02-07[01]) - COOLER BOX ASSY - ASN JJC0273000 (01) - ENGINE

1

87423406

BOX

Cooler

1шт.

2

87432788

DOOR SEAL

1шт.

3

435361A3

RADIATOR,Engine, 1151mm High x 740 Wide

See Figure 02-02

1шт.

4

87432132

FAN

Radiator, See Figure 02-02

1шт.

5

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

6

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

7

495-81120

WASHER,.344" x 1 1/4" x .120"

4шт.

8

434177A1

ISOLATOR

2шт.

9

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

10

438250A2

COOLER

Charge Air Cooler, 1210mm OAL

1шт.

11

413012A1

BRACKET

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

14

87419199

FOAM INSULATION,31.8mm W x 520mm L x 12.7mm Thk

520 mm (20.5 Inch), Cut From 1974883CX

2шт.

15

248-2146

GROMMET,5/8" ID x 7/8" Groove Dia

2шт.

16

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

17

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

17a

87423314

GROMMET,1.5" ID x 2.125" ID x 0.562" Thk

1-1/2" ID

2шт.

18

131-137

SPRING NUT,Ret, 5/16"-18

2шт.

19

410009A1

SPRING NUT

5/16", U-type

8шт.

20

87414310

HINGE

1шт.

21

450736A1

PIVOT

RH Trim Door

2шт.

22

353-478

PLUG

4шт.

23

87413877

TUBE,1148.5, 110 mm L

RH Rear Latch

1шт.

24

87413880

HOUSING

Door Latch

1шт.

25

141224A1

LATCH

1шт.

26

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

1шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

28

403388A1

WASHER

3/8" x 1-1/4" x 1/8"

4шт.

29

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

30

231-4246

LOCK NUT,3/8"-16, GB

2шт.

31

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

2шт.

32

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

33

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

34

131-440

PUSH-ON NUT

Retainer 5/16, Bolt Pushon, Not Illustrated

8шт.
