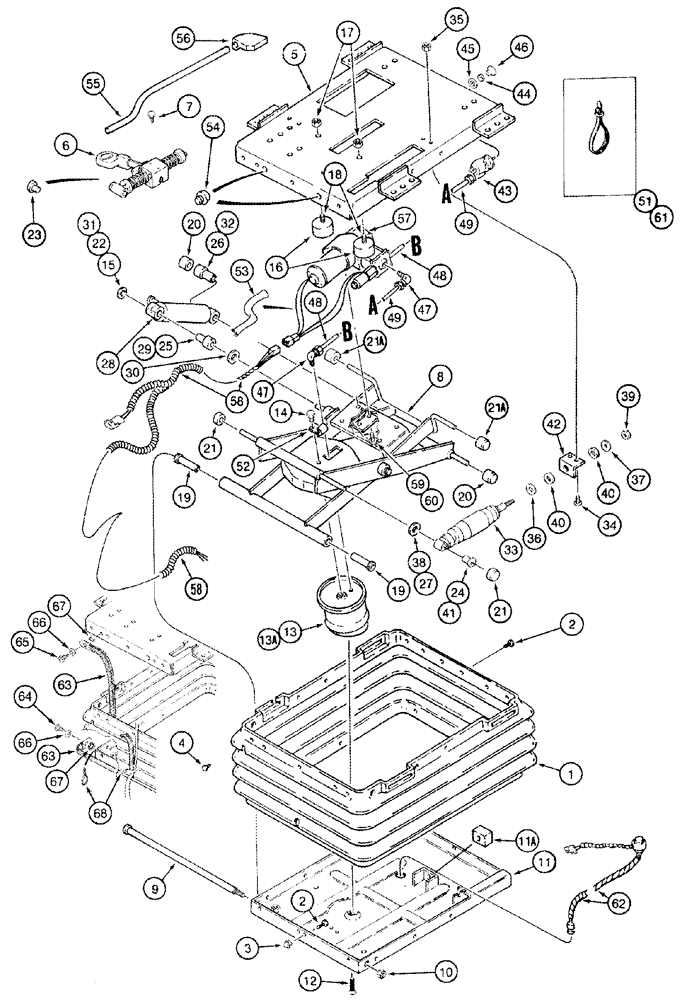

Запчасти Case IH 2388 (09G-15) - SEAT, OPERATOR - SUSPENSION (10) - CAB & AIR CONDITIONING
№
Артикул
Название
Примечание
Количество
180577A4
SEAT ASSY.
Includes 1 - 68, Includes Figure(s) 09G-13 (01), 09G-14 (01), Serial Range: -JJC0272999
1шт.
86989910
SEAT
Includes 1 - 68, Includes Figure(s) 09G-13 (02), 09G-14 (02), Start Serial: JJC0273000
1шт.
1990647C2
KIT
Boot, Suspension, Includes 1 - 4
1шт.
1
NSS
NOT SOLD SEPARAT
Boot
1шт.
132872A1
KIT
Incl. 2 - 4
1шт.
2
NSS
NOT SOLD SEPARAT
Fastener
20шт.
3
NSS
NOT SOLD SEPARAT
Nut
3шт.
4
NSS
NOT SOLD SEPARAT
Clip
3шт.
180590A3
SUSPENSION
Service Kit, Includes 5 - 63, Serial Range: -JJC0272999
1шт.
87416447
KIT
Suspension Service, Includes 5 - 63, Start Serial: JJC0273000
1шт.
5
180591A1
PLATE
Upper
1шт.
6
180592A1
SHOCK ABSORBER
1шт.
7
276-24812
SELF-TAP SCREW,5/16" - 18 x 3/4"
2шт.
8
1990643C1
FRAME ASSY
1шт.
9
A49529
SHAFT
1шт.
10
231-4206
LOCK NUT,Hex, 3/8"-16, GB
1шт.
11
226560A1
HOUSING
Lower, Also Order 132872A1, A45054
1шт.
11a
A45054
BUMPER,Neoprene
1шт.
12
443-13812
SCREW,Cross Flat Hd, 3/8"-16 x 3/4"
1шт.
197793A1
SPRING
Includes 13, 13A
1шт.
13
NSS
NOT SOLD SEPARAT
Spring
1шт.
13a
NSS
NOT SOLD SEPARAT
Clamp
1шт.
14
413-68
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
1шт.
15
131-425
PUSH-ON NUT,Push, 1/2"
1шт.
180593A1
KIT
Bumper, Includes 16 - 18
2шт.
16
NSS
NOT SOLD SEPARAT
Bumper
2шт.
17
231-1444
NUT,1/4"-20, GB
2шт.
18
340-12520
SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"
2шт.
180594A3
KIT
Rollers and Bearings, Includes 19 - 27
1шт.
19
NSS
NOT SOLD SEPARAT
Bushing
2шт.
20
NSS
NOT SOLD SEPARAT
Roller
2шт.
21
NSS
NOT SOLD SEPARAT
Roller
4шт.
21a
NSS
NOT SOLD SEPARAT
Roller
2шт.
22
131-425
PUSH-ON NUT,Push, 1/2"
1шт.
23
NSS
NOT SOLD SEPARAT
Bearing, Pivot
1шт.
24
NSS
NOT SOLD SEPARAT
Bearing, Pivot
1шт.
25
NSS
NOT SOLD SEPARAT
Bearing, Pivot
1шт.
26
NSS
NOT SOLD SEPARAT
Bearing, Pivot
1шт.
27
NSS
NOT SOLD SEPARAT
Spacer
1шт.
1344250C2
KIT
Shock Absorber, Includes 28 - 32
1шт.
28
NSS
NOT SOLD SEPARAT
Shock Absorber
1шт.
29
NSS
NOT SOLD SEPARAT
Bearing, Pivot
1шт.
30
A45519
WASHER
1шт.
31
131-425
PUSH-ON NUT,Push, 1/2"
1шт.
32
NSS
NOT SOLD SEPARAT
Bearing, Pivot
1шт.
227546A1
KIT
Shock, Fore/Aft, Includes 33 - 41
1шт.
33
NSS
NOT SOLD SEPARAT
Shock Absorber
1шт.
34
434-48
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5
2шт.
35
231-1444
NUT,1/4"-20, GB
2шт.
36
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
2шт.
37
NSS
NOT SOLD SEPARAT
Washer
1шт.
38
NSS
NOT SOLD SEPARAT
Spacer
1шт.
39
230-4715
LOCK NUT,5/16"-24, GA
1шт.
40
A49679
BUSHING
2шт.
41
NSS
NOT SOLD SEPARAT
Bearing, Pivot
1шт.
42
1981845C1
ANGLE
1шт.
1981852C3
SWITCH
Air Control, Includes 43 - 46
1шт.
43
NSS
NOT SOLD SEPARAT
Switch
1шт.
44
NSS
NOT SOLD SEPARAT
Nut
1шт.
45
493-11065
LOCK WASHER,Ext-Int Tooth, 5/8"
1шт.
46
1987186C2
KNOB
1шт.
1990548C4
KIT
Includes 47 - 52
1шт.
47
NSS
NOT SOLD SEPARAT
Elbow, 90
2шт.
48
NSS
NOT SOLD SEPARAT
Tube
1шт.
49
NSS
NOT SOLD SEPARAT
Tube
1шт.
51
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15"
4шт.
52
NSS
NOT SOLD SEPARAT
Clamp
1шт.
53
179026A1
TUBE
3/8" ID x 24-1/4"
1шт.
54
133422A1
BUMPER
2шт.
55
180596A2
LEVER
1шт.
56
180597A2
HANDLE
1шт.
358903A1
COMPRESSOR
Kit, Includes 57 - 61, Replaces 180600A1, Serial Range: -JJC0272999
1шт.
358903A2
KIT
Compressor, Includes 57 - 61, Start Serial: JJC0273000
1шт.
57
NSS
NOT SOLD SEPARAT
Compressor
1шт.
58
180599A1
WIRE HARNESS
, Serial Range: -JJC0272999
1шт.
58
87413247
WIRE HARNESS
, Start Serial: JJC0273000
1шт.
59
495-31022
WASHER,#10
2шт.
60
440-1086
SCREW,Cross Pan Hd, #8-32 x 3/8"
2шт.
61
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15"
6шт.
62
180601A1
WIRE HARNESS
, Serial Range: -JJC0272999
1шт.
291280A1
KIT
Ground Strap, Includes 63 - 68
1шт.
63
NSS
NOT SOLD SEPARAT
Strap, Ground
1шт.
64
NSS
NOT SOLD SEPARAT
Screw
1шт.
65
NSS
NOT SOLD SEPARAT
Screw
1шт.
66
NSS
NOT SOLD SEPARAT
Washer
2шт.
67
NSS
NOT SOLD SEPARAT
Washer, Lock
2шт.
68
NSS
NOT SOLD SEPARAT
Strap, Tie Down
2шт.
Выбрано товаров: 87
