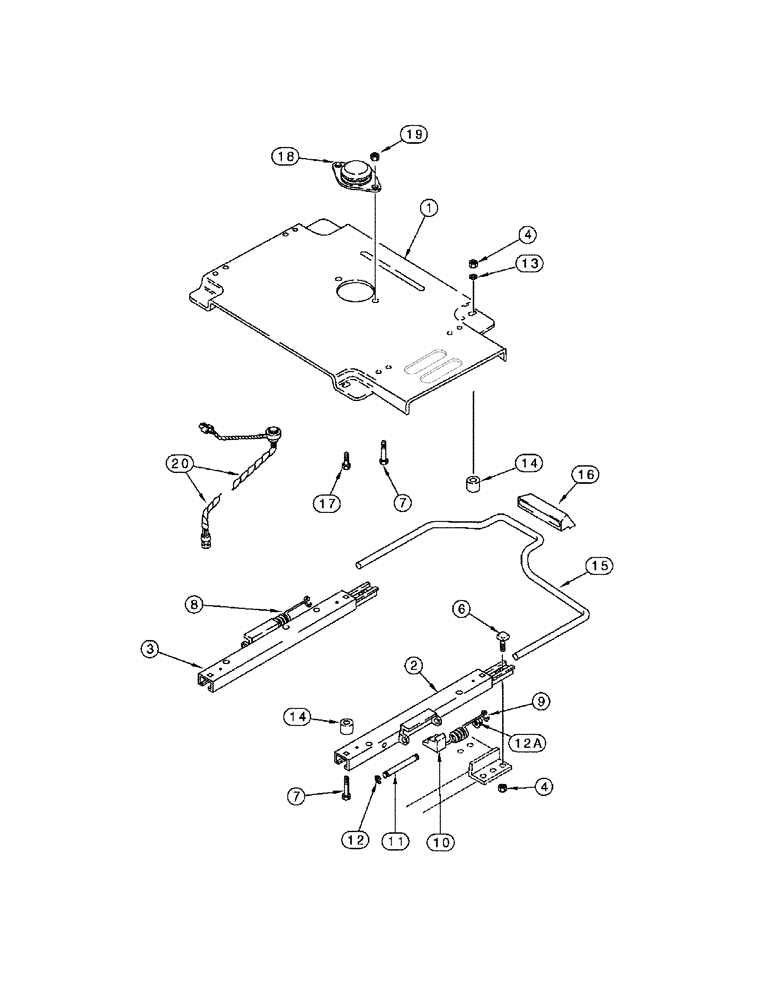

Запчасти Case IH 2388 (09G-14[01]) - SEAT, OPERATOR - AIR SUSPENSION - PLATE AND SLIDES - BSN JJC0273000 (10) - CAB & AIR CONDITIONING

180577A4

SEAT ASSY.

Includes 1 - 20, Includes Figure(s) 09G-13 (01), 09G-15

1шт.

1

390991A1

PLATE

1шт.

132875A1

SLIDE

Includes 2 - 12A

1шт.

2

NSS

NOT SOLD SEPARAT

Slide, RH

1шт.

3

NSS

NOT SOLD SEPARAT

Slide, LH

1шт.

4

230-4215

NUT,5/16"-18, GA

8шт.

6

417-524

BOLT,Sq Hd, 5/16" - 18 x 1-1/2", Gr 2

4шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

8

135513A1

SPRING

LH

1шт.

9

135514A1

SPRING

RH

1шт.

10

NSS

NOT SOLD SEPARAT

Block

2шт.

11

NSS

NOT SOLD SEPARAT

Pin

2шт.

12

103-1131

SNAP RING,#31, Ext

2шт.

12a

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

2шт.

13

495-11034

WASHER,5/16", SAE

4шт.

14

134144A1

SPACER

4шт.

15

180585A1

LEVER

1шт.

16

180587A1

HANDLE

1шт.

17

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

2шт.

18

242306A2

SWITCH

Seat

1шт.

19

NSS

NOT SOLD SEPARAT

Nut

2шт.

20

180601A1

WIRE HARNESS

Seat, Operator Present

1шт.
