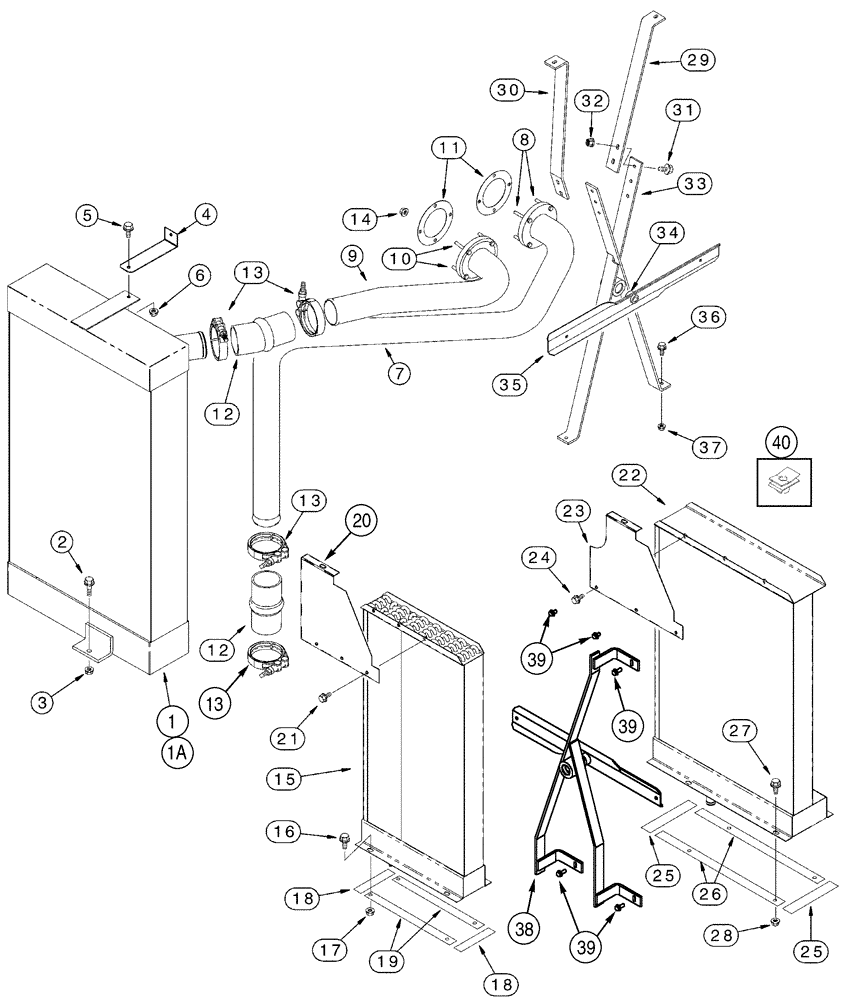

Запчасти Case IH 2388 (02-06) - COOLER - AIR CHUTE - BSN JJC0273000 (01) - ENGINE

1

275097A1

COOLER

, Serial Range: -JJC0267149

1шт.

1a

363505A1

INTERCOOLER

, Start Serial: JJC0267150

1шт.

2

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

4

303572A1

SUPPORT

1шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

7

259971A1

TUBE,76.2 mm OD, 260.8 mm Length

Includes 8

1шт.

8

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

9

225967A1

TUBE,76.2 mm OD

Includes 10

1шт.

10

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

11

J917892

GASKET,0.79mm Thk

4шт.

12

275308A1

INTAKE AIR HOSE,76.20 mm ID x 165.10 mm

2шт.

13

292622A1

CLAMP

Replaces J926702

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

15

275094A3

COOLER

Fuel, Serial Range: -JJC0270499

1шт.

15

275094A4

COOLER

Fuel, Start Serial: JJC0270500

1шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

17

231-5146

FLANGE NUT,3/8"-16

4шт.

18

278842A1

SEAL

141 mm (5-1/2"), Cut from 195917C1

2шт.

19

278843A1

SEAL

372 mm (14-5/8"), Cut from 195917C1

2шт.

20

277423A2

SHEET

1шт.

21

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

22

275096A2

OIL COOLER,Corn/Grain

1шт.

Corn and Grain Combine

1шт.

22

275098A2

OIL COOLER

1шт.

Rice Combine

1шт.

23

277806A3

SHEET

Also, See Figure 02-12, Order Ref. 3 or 3A

1шт.

24

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

25

278844A1

SEAL

192 mm (7-1/2") Cut from 195917C1

2шт.

26

278845A1

SEAL

524 mm (20-5/8") Cut from 195917C1

2шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

28

231-5146

FLANGE NUT,3/8"-16

4шт.

29

221728A1

SUPPORT

1шт.

30

221877A1

SUPPORT

1шт.

31

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

33

1345404C1

SUPPORT

1шт.

34

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

1шт.

35

1345399C1

FAN

1шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

38

339571A1

FAN

1шт.

39

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

40

488837C1

SPRING NUT

5/16"

1шт.

360870A1

KIT

Includes 38, 39, 360869A1, Also see Figure 02-09, Includes Ref. 30, 33 - 35

1шт.
