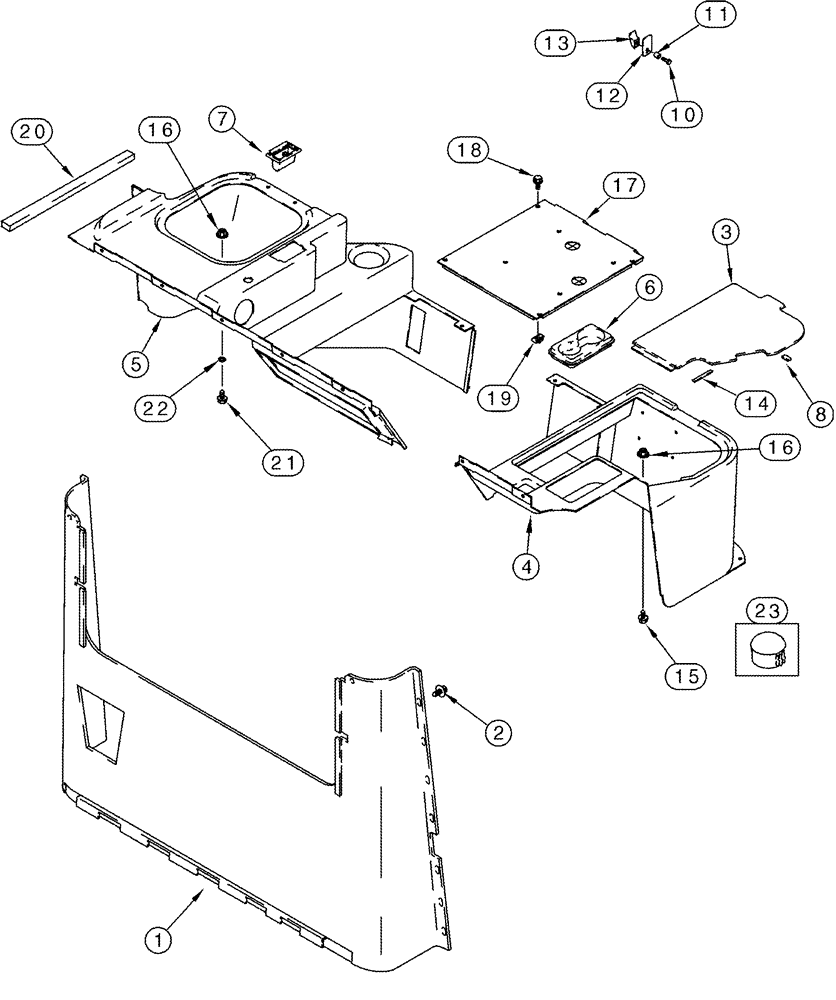

Запчасти Case IH 2388 (09G-08) - CAB - INTERIOR BSN JJC0267149 (10) - CAB & AIR CONDITIONING

224515A1

PANEL

Rear Trim, Includes 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Panel

1шт.

2

121064A1

CLASP

14шт.

3

140320A1

COVER

Fuse Access

1шт.

4

140322A2

COVER

Pedestal, RH, No Longer Available, For Service Order 376432A1, REF 4A

1шт.

4a

376432A1

COVER

Pedestal, RH, Service Only

1шт.

5

376431A1

COVER

Pedestal, LH, Service Only

1шт.

6

1344244C1

TRAY

Utility

1шт.

7

124234A1

TRAY

1шт.

8

121067A1

FASTENER

1 x 12", Cut from 121068A1

4шт.

10

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

1шт.

11

2-3010T1

SPACER

1шт.

12

60-6520T1

PLATE

1шт.

13

3234176R1

COAT HOOK

1шт.

14

1990258C1

SEAL

80 mm (3-5/32"), Cut from 187874C2

2шт.

15

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

11шт.

16

231-51409

SERRATED NUT,Flg, USR, #10-24

23шт.

17

NSS

NOT SOLD SEPARAT

Support

1шт.

18

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

19

786618C1

NUT

5/16"

4шт.

20

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8"), Cut from 1971350C1

1шт.

21

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

12шт.

22

492-11010

LOCK WASHER,#10

12шт.

23

353-400

PLUG,Dome, .250" hole, Nylon

4шт.

Without Automatic Temperature Control

1шт.

24

353-405

PLUG,Dome, .562" hole, Nylon

PLUG, Dome, .562" hole, Nylon

2шт.

Without Automatic Temperature Control

1шт.

25

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.
