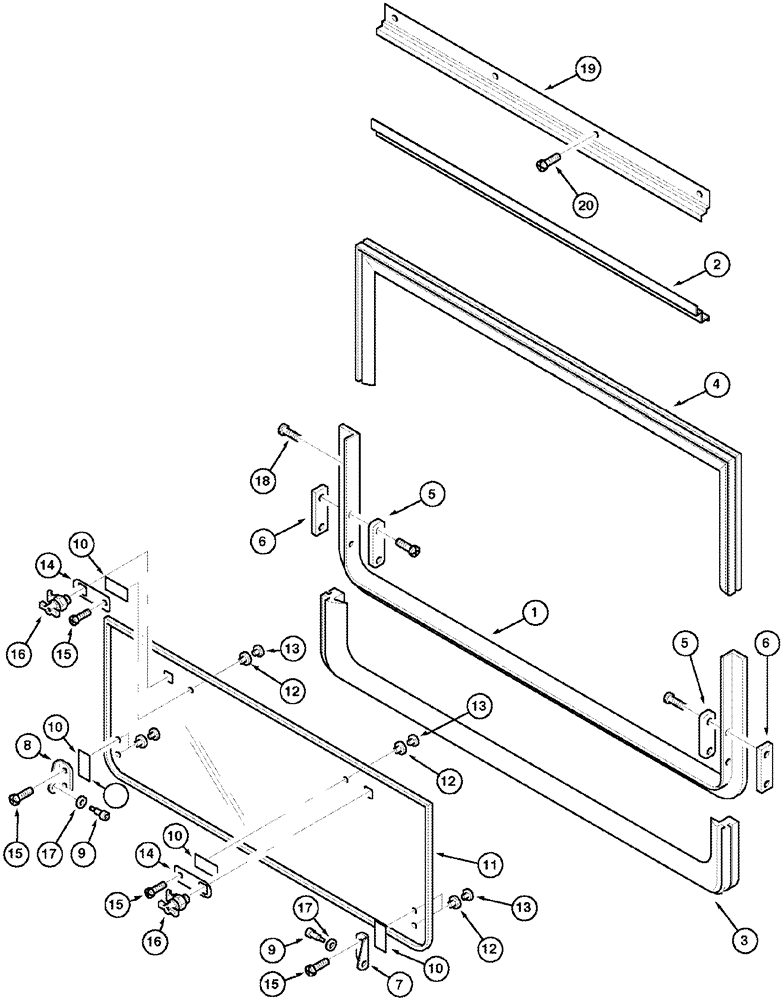

Запчасти Case IH 2388 (09G-05) - CAB - WINDOW, REAR - OPENABLE (10) - CAB & AIR CONDITIONING

247703A1

GLASS

Openable, Includes 1 - 18

1шт.

1

247904A1

WINDOW FRAME

Lower

1шт.

2

247903A1

WINDOW FRAME

Upper

1шт.

3

246010A1

SEAL,1102.5mm L

Lower Frame

1шт.

4

246009A1

SEAL,1782.9mm L

Upper Frame

1шт.

5

248379A1

PLATE

Hinge, Inner

2шт.

6

248377A1

PLATE

Hinge, Outer

2шт.

7

248380A1

HINGE

RH

1шт.

8

248381A1

HINGE

LH

1шт.

9

248410A1

HEX SOC SCREW

5/16"

2шт.

10

249363A1

ADHESIVE STRIP

40 mm, Cut from 248383A1

4шт.

11

248375A1

GLASS

1шт.

12

248385A1

BUSHING,5.16mm ID x 6.35mm OD x 8.58mm L

6шт.

13

248384A1

FLANGE NUT

6шт.

14

248376A1

PLATE

2шт.

15

249009A1

SELF-TAP SCREW,Cross Pan Hd, #8-32 x 3/8"

8шт.

16

249364A1

LOCK

2шт.

17

249684A1

WASHER

2шт.

18

260-14416

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

4шт.

19

253771A1

SUPPORT

1шт.

20

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.
