Запчасти Case IH 2388 (08-42) - VALVE ASSY - FEEDER REVERSER ASN JJC0268800 (07) - HYDRAULICS

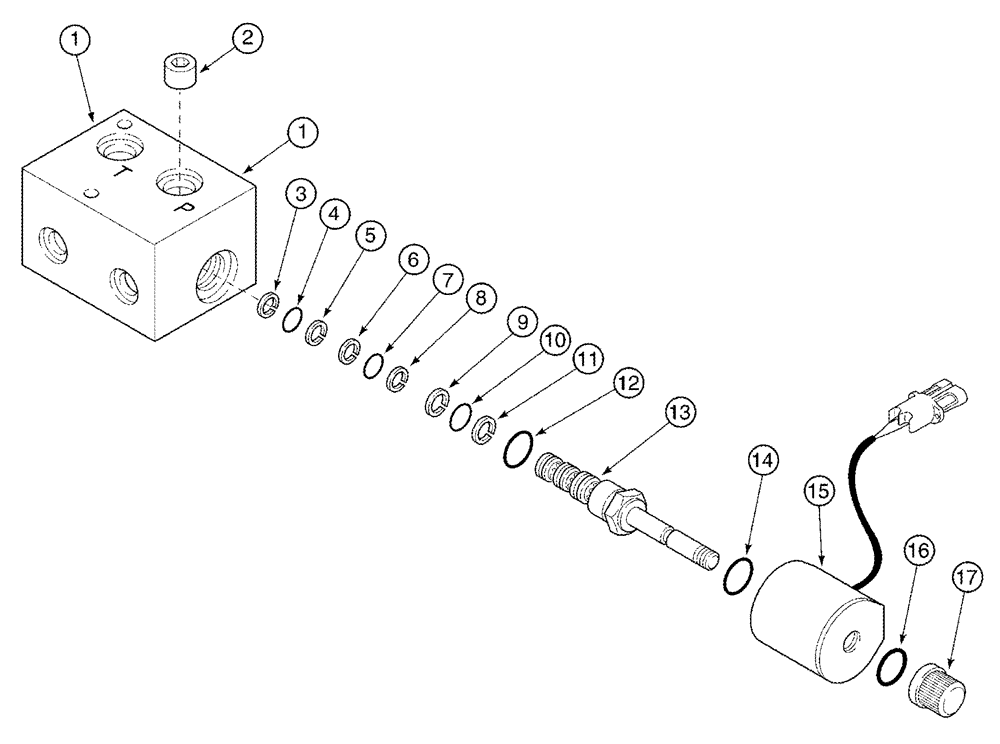

Схема запчастей Case IH 2388 - (08-42) - VALVE ASSY - FEEDER REVERSER ASN JJC0268800 (07) - HYDRAULICS
17
12
10
8
13
9
6
11
7
5
2
15
1
16
3
4
1
14

Артикул

Название

Примечание

Количество

393904A1

VALVE

Feeder Reverser Motor, Includes 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

397923A1

ORIFICE

1шт.

397921A1

VALVE

Includes 3 - 13

1шт.

397925A1

SEAL KIT

Includes 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

405378A1

SEAL KIT

Includes 14 -17

1шт.

14

238-6120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Coil

1шт.

16

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

1шт.

17

397926A1

NUT

1шт.

18

9625178

PLUG,9/16" - 18 ORB

Not Illustrated

1шт.

Выбрано товаров: 22
