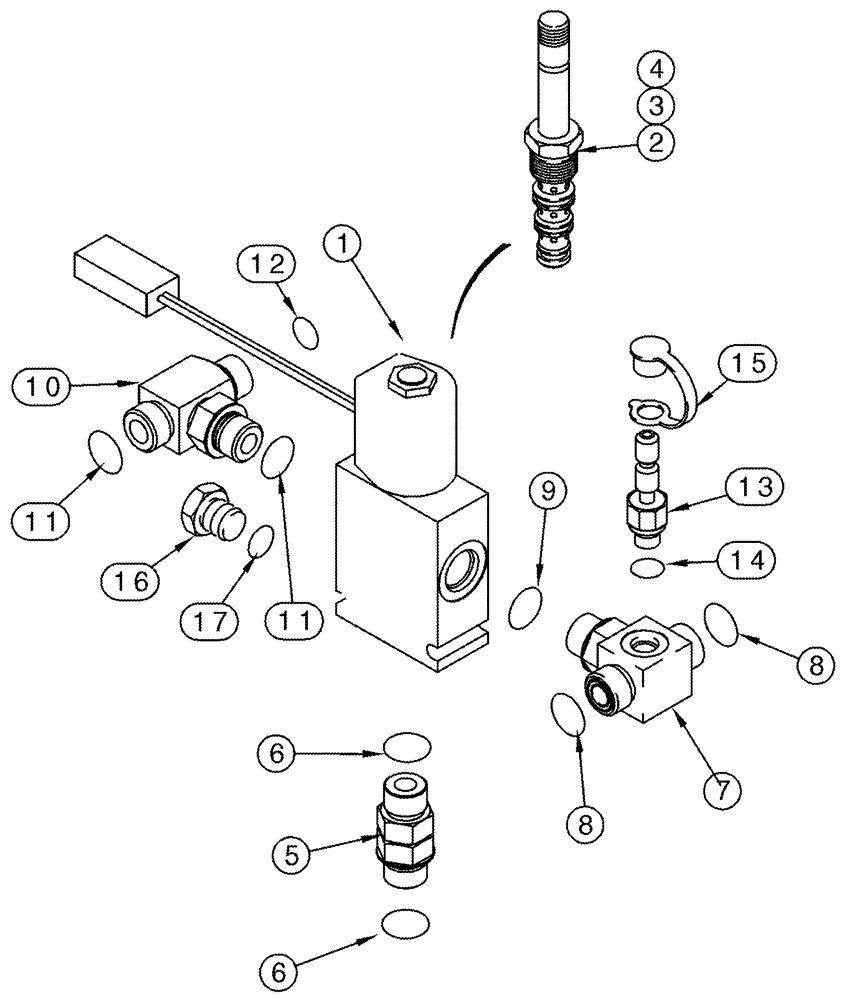

Запчасти Case IH 2388 (08-33) - VALVE ASSY - SEPARATOR CLUTCH (07) - HYDRAULICS

275986A2

VALVE

PTO Clutch, Not Serviced as an Assembly, Order Component Parts Below, Includes 1 - 17

1шт.

1

275982A1

VALVE

Includes 2 - 4

1шт.

2

187849C1

SOLENOID VALVE

4-Way, Cartridge Only, Includes 3

1шт.

3

187850C1

SEAL KIT

1шт.

4

1340843C1

SOLENOID,12V

12V

1шт.

5

183510A1

FITTING

Includes 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

292266A1

TEE

Includes 8, 9

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

292265A1

TEE

Includes 11, 12

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

13

R55912

NIPPLE

Diagnostic, Includes 15

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

H434163

DUST CAP

1шт.

16

214389

PLUG,3/4" - 16 ORB

Includes Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
