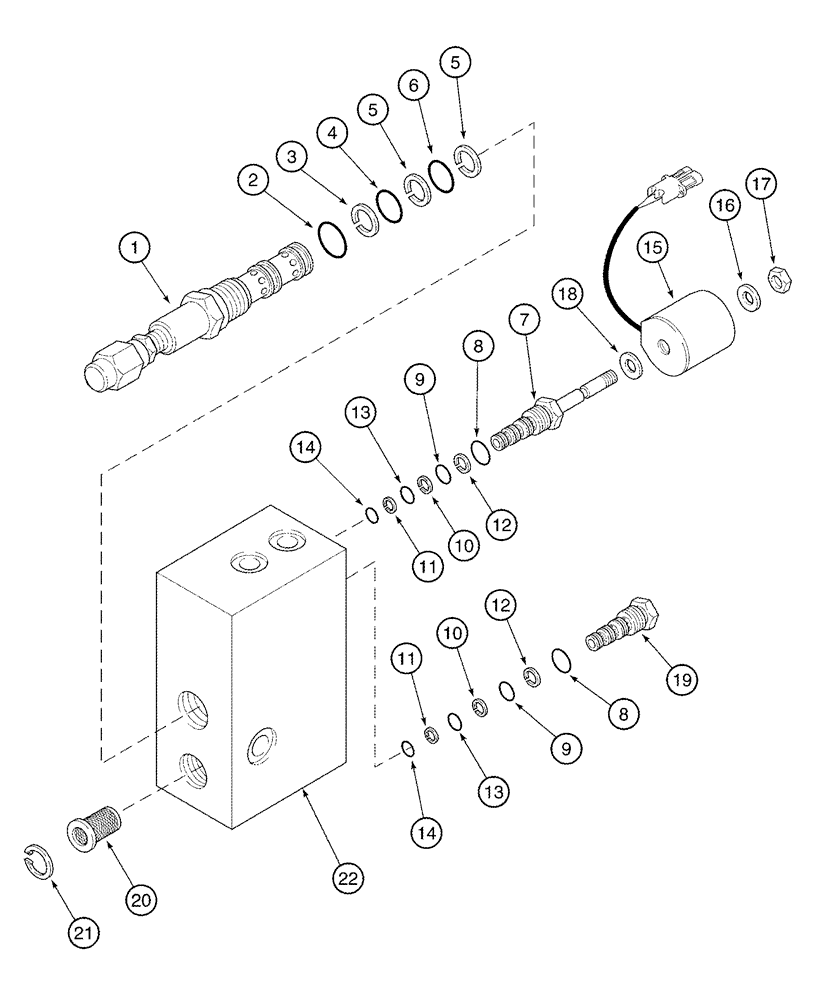

Запчасти Case IH 2388 (08-30[01]) - VALVE ASSY - UNLOADER CLUTCH, BTW JJC0268800 & JJC0270499 (07) - HYDRAULICS

399067A1

VALVE

Includes 1 - 22, Pressure Regulator

1шт.

1

377593A1

VALVE PRESSURE RELIE

Includes 190709A1, Pressure Reducing

1шт.

190709A1

SEAL KIT

Valve Cartridge, Includes 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Backup

11шт.

4

NSS

NOT SOLD SEPARAT

1, O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

187849C1

SOLENOID VALVE

4-Way, Includes 187850C1

1шт.

187850C1

SEAL KIT

Includes 8 - 14

2шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Washer

1шт.

13

NSS

NOT SOLD SEPARAT

Washer

1шт.

14

NSS

NOT SOLD SEPARAT

Washer

1шт.

1340843C1

SOLENOID,12V

12V, Includes 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Coil

1шт.

16

NSS

NOT SOLD SEPARAT

Plate

1шт.

17

NSS

NOT SOLD SEPARAT

Nut

1шт.

18

NSS

NOT SOLD SEPARAT

Plate

1шт.

19

399071A1

PLUG

Includes 187850C1

1шт.

20

241892A1

FILTER SCREEN

1шт.

21

100-2187

SNAP RING,0.875", Int, #87

1шт.

22

NSS

NOT SOLD SEPARAT

Body, Valve, Order 399067A1

1шт.
