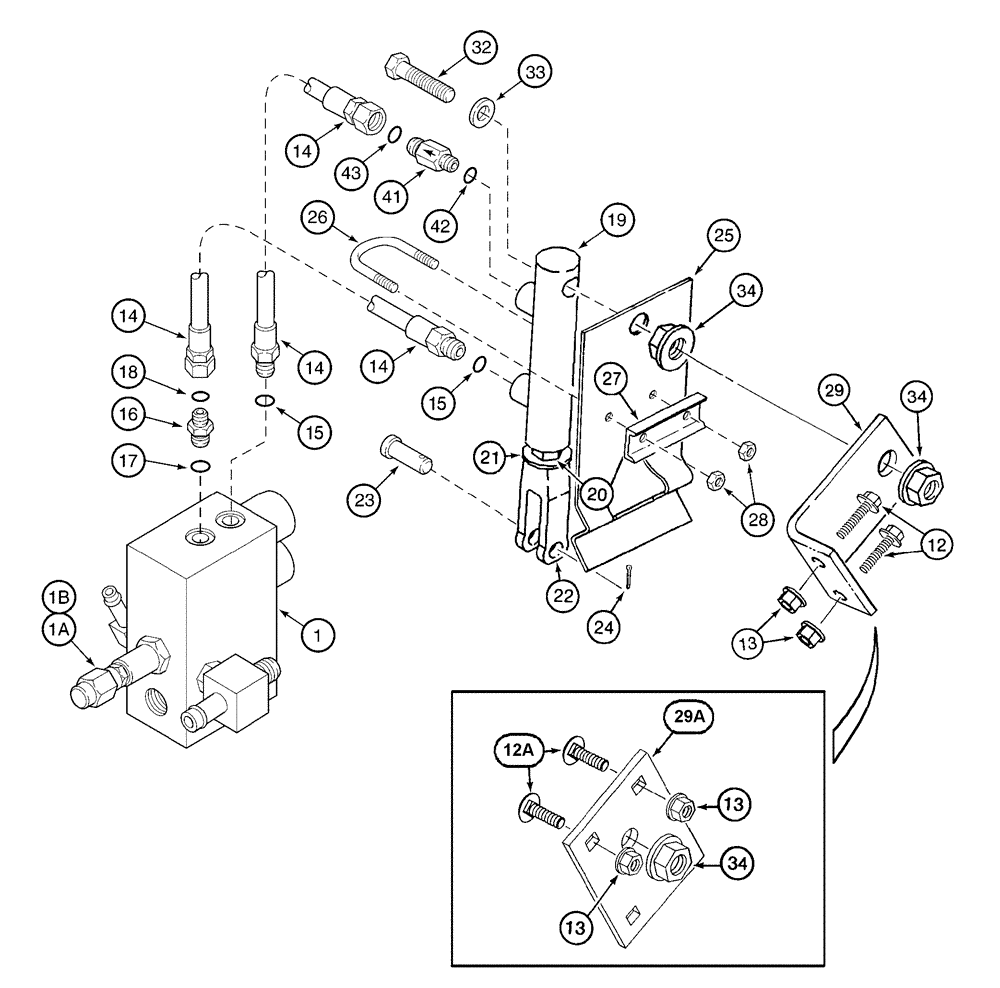

Запчасти Case IH 2388 (08-28[02]) - HYDRAULICS - UNLOADER CLUTCH, ASN JJC0270500 (07) - HYDRAULICS

1

384307A1

SOLENOID VALVE

Pressure Regulator, Includes 1A, 1B, See Figure 08-30 (02)

1шт.

1a

377593A1

VALVE PRESSURE RELIE

Regulator, Includes 1B

1шт.

1b

190709A1

SEAL KIT

Valve Cartridge, Not Illustrated

1шт.

12

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

, Serial Range: -JJC0270499

2шт.

12a

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

, Start Serial: JJC0270500

4шт.

13

231-5146

FLANGE NUT,3/8"-16

2-4шт.

14

128068A2

FLEXIBLE HOSE

760 mm (30"), Includes 15, At Unloader Clutch Cylinder

2шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 17, 18

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

112397A2

CYLINDER

Includes 19A, Unloader Clutch

1шт.

19a

188294A1

SEAL KIT

Not Illustrated

1шт.

20

425-118

NUT,1/2"-20, G5

1шт.

21

189153A1

WASHER

1шт.

22

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

1шт.

23

427-8136

CLEVIS PIN,1/2" x 1.360"

1шт.

24

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

25

175611A2

HOLDER

1шт.

26

188528A1

U-BOLT,1/4" - 20 x 34.80mm W x 44mm L, Gr 5

BOLT "U"

1шт.

27

176023A2

SUPPORT

1шт.

28

425-104

NUT,1/4"-20, Cl 5

2шт.

29

112947A1

SUPPORT

Unloader Valve and Cylinder Support, Serial Range: -JJC0270499

1шт.

29a

112942A2

PLATE

, Start Serial: JJC0270500

1шт.

32

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

33

495-11066

WASHER,5/8", SAE

1шт.

34

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

41

327679A1

CHECK VALVE

Inline, Includes 42, 43, To Slow Unloader Engagement

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
