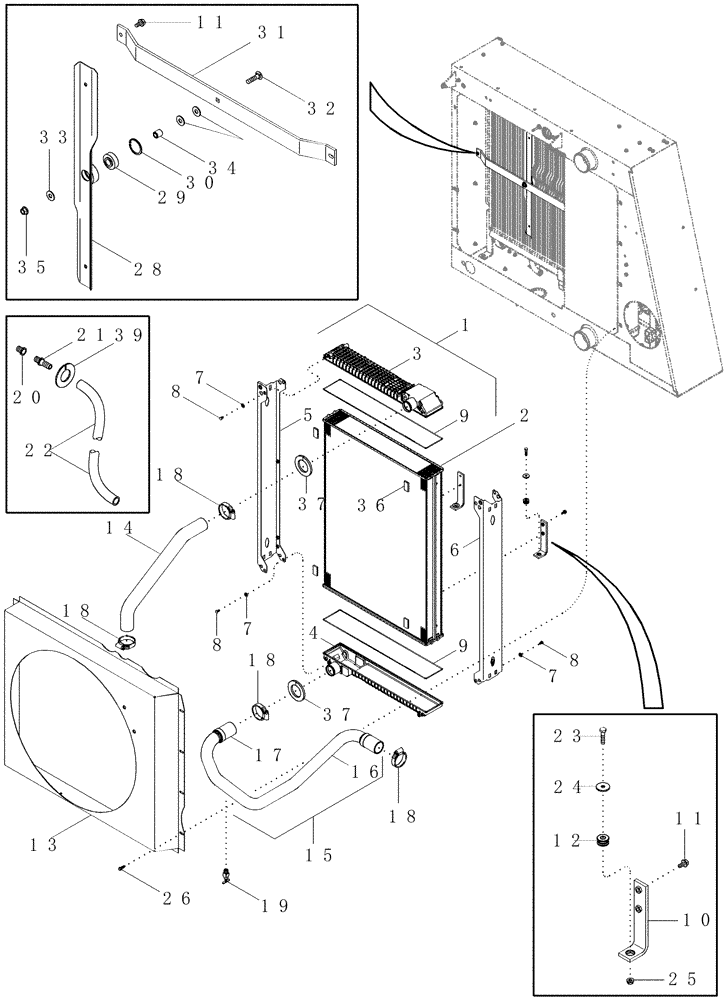

Запчасти Case IH 2388 (02-02) - RADIATOR - FAN SHROUD - ASN JJC0273000 (01) - ENGINE

1

435361A3

RADIATOR,Engine, 1151mm High x 740 Wide

Includes 2-9

1шт.

2

NSS

NOT SOLD SEPARAT

Core, Radiator

1шт.

3

87000189

TANK

Radiator Top

1шт.

4

450622A1

TANK

Radiator Lower

1шт.

5

450624A2

CHANNEL

LH

1шт.

6

450625A2

CHANNEL

RH

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

8

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

9

227240A1

GASKET,3.3mm Thk

2шт.

10

411572A1

BRACKET

Radiator Isomount

2шт.

11

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

12

434177A1

ISOLATOR

2шт.

13

86993934

SHROUD

Fan

1шт.

14

86983603

RADIATOR HOSE,57.20 mm ID x 365.4, 540 mm, SAE 20R4 CLASS D1

Upper

1шт.

15

87407470

TUBE,608.23, 433.77 mm L

Includes 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Tube

1шт.

17

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

1шт.

18

214-3248

HOSE CLAMP,57mm - 79mm

4шт.

19

86982771

VALVE

1/4" PT, Drain Cock

1шт.

20

217-1034

REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF

1шт.

21

241173A1

FITTING

1/8" PT x 5/16" Hose

1шт.

22

87408617

HOSE,7.92mm ID x 4850mm L

Drain, Cut From 86989959

1шт.

23

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

24

495-81120

WASHER,.344" x 1 1/4" x .120"

2шт.

25

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

26

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

5/16"

8шт.

27

87432132

FAN

Assy, Radiator, Includes 28 -35

1шт.

28

87432607

BLADE

Radiator Wiper

1шт.

29

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

1шт.

30

100-21156

SNAP RING,1.562", Int, #156

1шт.

31

87432400

SUPPORT

1шт.

32

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

33

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

3шт.

34

87404683

BUSHING

1шт.

35

231-5146

FLANGE NUT,3/8"-16

1шт.

37

87420911

FOAM INSULATION,31.8mm W x 340mm L x 12.7mm Thk

SEAL Cut 340 mm (13-3/8") from 1319664C3

2шт.

38

87420912

SEAL

SEAL Cut 70 mm (2-3/4") from 1319664C3

4шт.

39

87420945

BALL SOCKET

SEAL Cut 217 mm (8-1/2") from 1319664C3

1шт.
