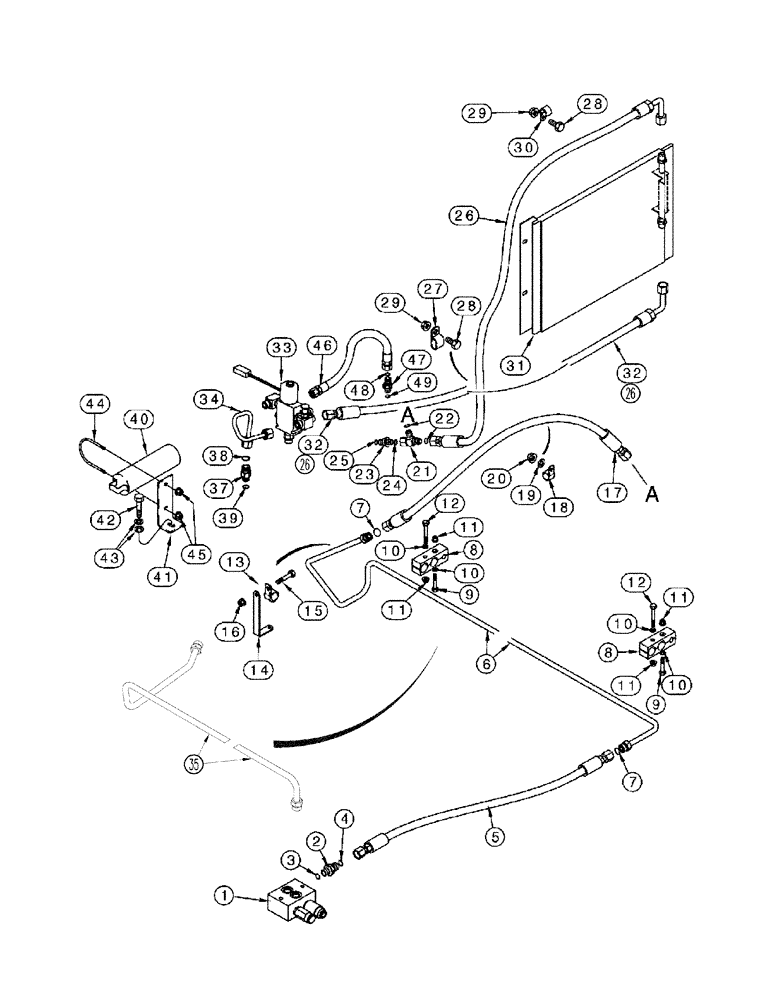

Запчасти Case IH 2388 (08-26) - HYDRAULICS - SEPARATOR CLUTCH - PTO CIRCUIT (07) - HYDRAULICS

1

327580A1

BY-PASS VALVE

See Figure 08-32 (01)

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

257524A2

TUBE,810 mm Length

810 mm (31-57/64"), By-Pass Valve to Tube, Serial Range: -JJC0270499

1шт.

5

391541A1

FLEXIBLE HOSE

By-Pass Valve to Tube, Start Serial: JJC0270500

1шт.

6

257582A2

HYD TUBE

2684 mm (105-43/64"), By-Pass Valve to Clutch, Serial Range: -JJC0269443

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

8

227575A1

CLAMP

2шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

10

495-21038

WASHER,5/16"

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

14

291899A1

SUPPORT

1шт.

15

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

17

292925A1

TUBE,1" ID, 935 mm Length

935 mm (36-13/16"), Tube to Clutch, Serial Range: -JJC0268799

1шт.

17

370263A1

FLEXIBLE HOSE

Tube to Clutch, Start Serial: JJC0268800

1шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

19

495-11028

WASHER,1/4", SAE

1шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

21

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Includes 22

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Includes 24, 25

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

292924A1

HOSE

1460 mm (57-1/2"), PTO to Cooler, Serial Range: -JJC0268799

1шт.

26

390011A1

FLEXIBLE HOSE

PTO to Cooler, Start Serial: JJC0268800

2шт.

27

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

28

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

If Used

2шт.

28

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

30

515-23254

CLAMP,1", Insul, 3/8" Bolt

, Serial Range: -JJC0268799

1шт.

30

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

, Start Serial: JJC0268800

1шт.

31

183747C1

OIL COOLER

1шт.

32

278122A1

HOSE

PTO Cooler Return, Serial Range: -JJC0268799

1шт.

33

275986A2

VALVE

PTO Clutch, Not Serviced as an Assembly, Order 275982A1, See Figure 08-33

1шт.

34

275920A2

HYD TUBE

PTO Cooling

1шт.

35

370261A2

HYD TUBE,1740.9, 327.3 mm Length

By-Pass Valve to Clutch, Start Serial: JJC0268800

1шт.

37

275974A1

CHECK VALVE,13/16" - 16 ORFS x 3/4" - 16 ORB

In-Line, Includes 38, 39

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

40

1541941C1

ACCUMULATOR

1шт.

41

275987A1

SUPPORT

1шт.

42

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

43

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

2шт.

44

186505C1

BOLT,U, 1/4" - 20 x 3.2"

1шт.

45

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

46

278174A1

FLEXIBLE HOSE

PTO, Serial Range: Valve-Clutch

1шт.

47

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Includes 48, 49

1шт.

48

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
