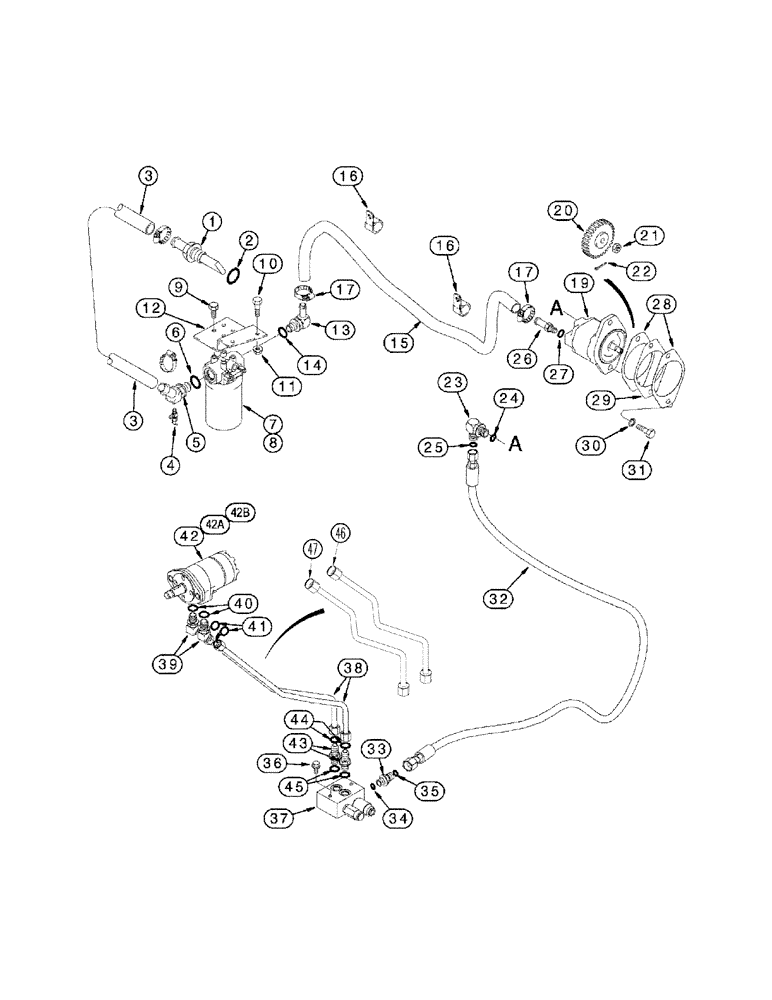

Запчасти Case IH 2388 (08-25[01]) - HYDRAULICS - SEPARATOR CLUTCH - ROTARY AIR SCREEN CIRCUIT- BSN JJC0273000 (07) - HYDRAULICS

1

255276A1

FITTING

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

128080A1

HYDRAULIC HOSE,25.40 mm ID x 760.00 mm

Cut from 1541952C1

1шт.

4

301803R1

SHUT-OFF VALVE

PTO Drain

1шт.

5

255528A1

TEE

PTO Inlet

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

294713A1

FILTER ASSY

Includes 8

1шт.

8

294721A1

HYDRAULIC OIL FILTER

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

10

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

255600A1

SUPPORT

1шт.

13

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

Includes Ref. 14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

257497A2

HYDRAULIC HOSE

1800 mm (70-7/8"), Cut from 1541952C1

1шт.

16

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

17

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

19

244573A1

PUMP, HYDRAULIC

Engine Driven

1шт.

19

87453065R

REMAN-HYD PUMP

2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540, BSN JJC0273000, Engine Driven (1/98-8/04), Reman for New PN 244573A1

1шт.

19

87453065C

CORE-HYDRAULIC PUMP

Return Number

1шт.

20

J924186

GEAR

1шт.

21

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

22

432-616

COTTER PIN,3/32" x 1"

1шт.

23

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 24, 25

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

Includes 27

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27a

258247A1

SEAL KIT

Service Repair for 284516A1, Not Illustrated

1шт.

28

J931608

GASKET

2шт.

29

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

1шт.

30

892-11012

LOCK WASHER,M12

2шт.

31

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

32

257523A2

HOSE

2200 mm (86-5/8"), Pump to By-Pass Valve, Serial Range: -JJC0270499

1шт.

32

391541A1

FLEXIBLE HOSE

Pump to By-Pass Valve, Start Serial: JJC0270500

1шт.

33

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

Includes 34, 35

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

37

327580A1

BY-PASS VALVE

See Figure 08-32

1шт.

38

293604A1

HYD TUBE,0.5" OD, 625.4, 82.7 mm Length

, Serial Range: -JJC0270499

2шт.

39

201-377

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 40, 41

2шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

258622A1

MOTOR, HYDRAULIC,97CC

1шт.

42a

1542724C1

SEAL KIT

Seal

1шт.

Use with Eaton Hydraulics

1шт.

Use with 258622A1

1шт.

42b

393204A1

SEAL KIT

Seal

1шт.

Use with 258622A1

1шт.

Use with Danfoss Hydraulics

1шт.

43

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 44, 45

2шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

46

431286A1

TUBE

Supply, Start Serial: JJC0270500

1шт.

47

431287A1

TUBE

Return, Start Serial: JJC0270500

1шт.
