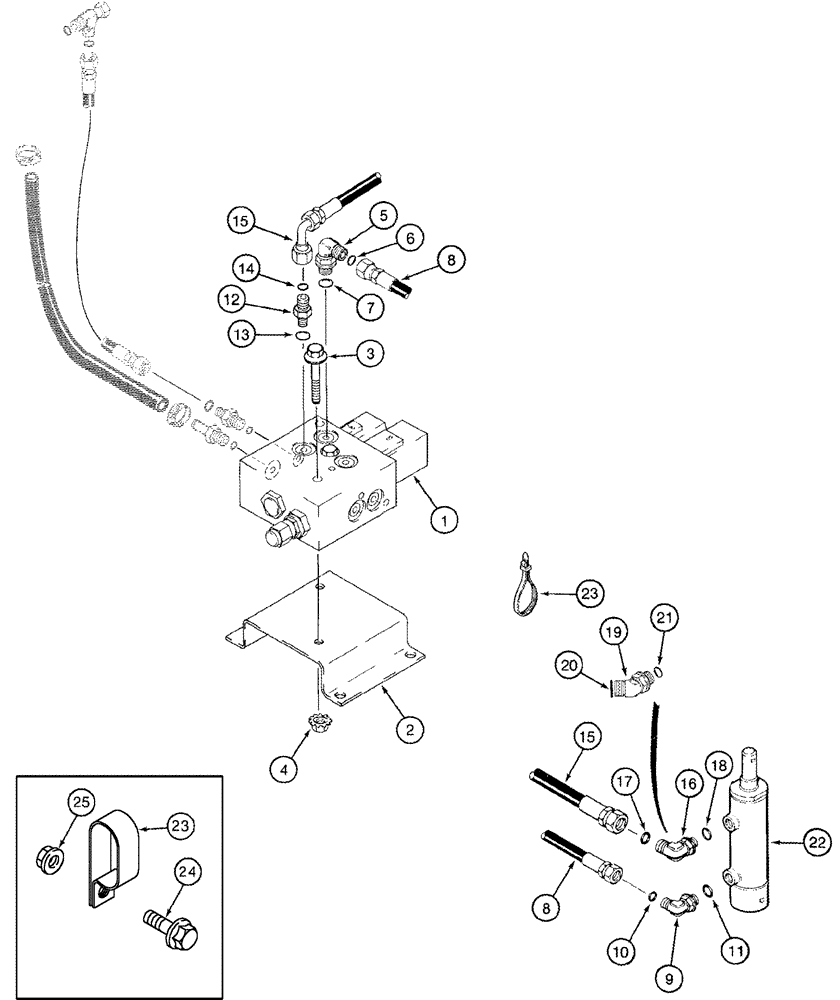

Запчасти Case IH 2388 (08-24) - HYDRAULICS - FEEDER CLUTCH (07) - HYDRAULICS

1

129010A4

CONTROL VALVE

Parking Brake and Feeder Clutch, See Figure 08-18

1шт.

2

128293A1

SUPPORT

1шт.

3

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

4

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

5

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes 6, 7

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

128047A1

HOSE

1570 mm (61-7/8"), Feeder Clutch Cylinder Closed End, Serial Range: -JJC0270499

1шт.

See Parking Brake Hydraulic System, Figure 07-05 for Common Supply and Return Lines used with Feeder Clutch System.

1шт.

8

434296A1

FLEXIBLE HOSE

1570 mm (61-7/8") Feeder Clutch Cylinder Closed End, Start Serial: JJC0270500

1шт.

9

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes 10, 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 13, 14

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

131391A3

FLEXIBLE HOSE

1570 mm (61-7/8"), Feeder Clutch Cylinder Rod End

1шт.

See Parking Brake Hydraulic System, Figure 07-05 for Common Supply and Return Lines used with Feeder Clutch System.

1шт.

16

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 17, 18

1шт.

Without Rock Trap

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes 20, 21

1шт.

With Rock Trap

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

133405C92

CYLINDER

51 ID x 63 mm strk, Feeder Clutch, See Figure 08-34

1шт.

22

87337239R

REMAN-HYD CYLINDER

2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540, 51 ID x 63 mm strk, Feeder Clutch (1/98-8/04), Reman for New PN 133405C92

1шт.

22

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

23

470375C1

CLAMP,1", Insul, 3/8" Bolt

, Start Serial: JJC0270500

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

26

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.
