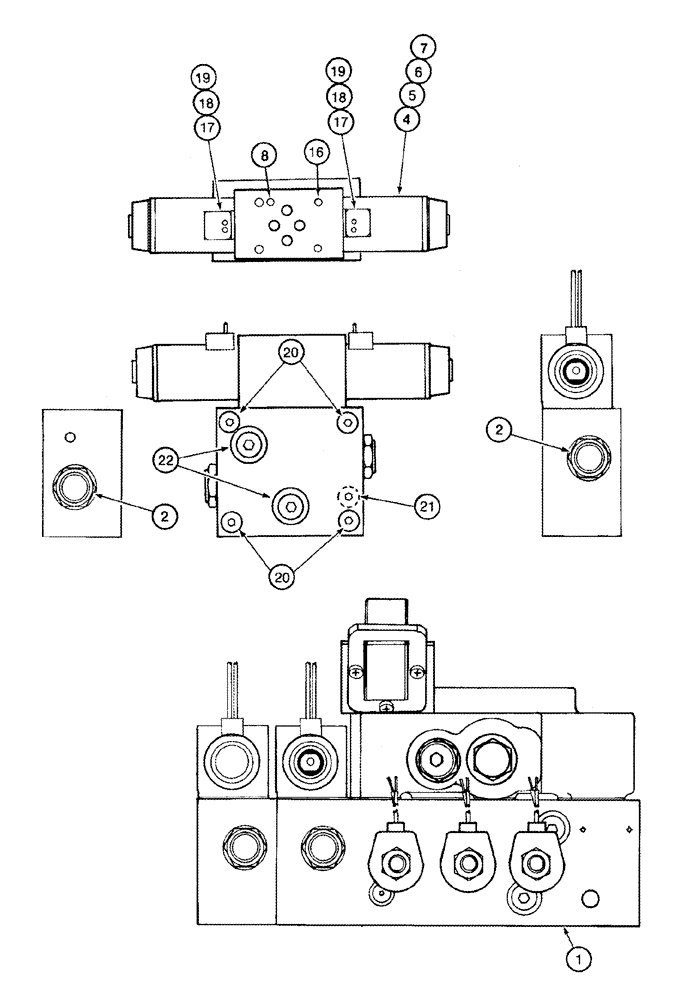

Запчасти Case IH 2388 (08-15) - VALVE ASSY - CONTROL - HEADER LIFT WITH FORE AND AFT VALVE ASSY (07) - HYDRAULICS

124566A3

VALVE, CONTROL

Includes 1 - 22, Header Lift with Reel Fore and Aft

1шт.

1

124565A3

VALVE, CONTROL

Header Lift, See Figure(s) 08-10, 08-11, 08-12, 08-13, 08-16

1шт.

131153A2

CONTROL VALVE

Includes 2 - 22, Reel Fore and Aft

1шт.

2

190712A1

VALVE

Includes 3, Single Pilot Operated

2шт.

3

1260872C91

SEAL KIT

Seal Repair, Not Illustrated

1шт.

190990A1

VALVE

Includes 4 - 19, 4-Way, 3 Position, Stack

1шт.

4

196736A1

BODY

Solenoid

2шт.

5

196737A1

SPLIT PIN/SAFETY PIN

2шт.

6

196738A1

SPRING

2шт.

7

196739A1

WASHER

2шт.

8

196710A1

PLUG

Orifice .030"

1шт.

9

191120A1

SEAL KIT

Includes 10 - 15, Seal Repair, 4-Way, 3 Position Valve, Order Components, Not Illustrated

1шт.

10

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

11

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

12

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

13

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

2шт.

14

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

15

S83071

BACK-UP RING

2шт.

16

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

17

191119A1

SOLENOID

Coil, with Diode, 12 Volt, DC

2шт.

18

188106A1

NUT

2шт.

19

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

20

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

4шт.

21

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

22

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

2шт.
