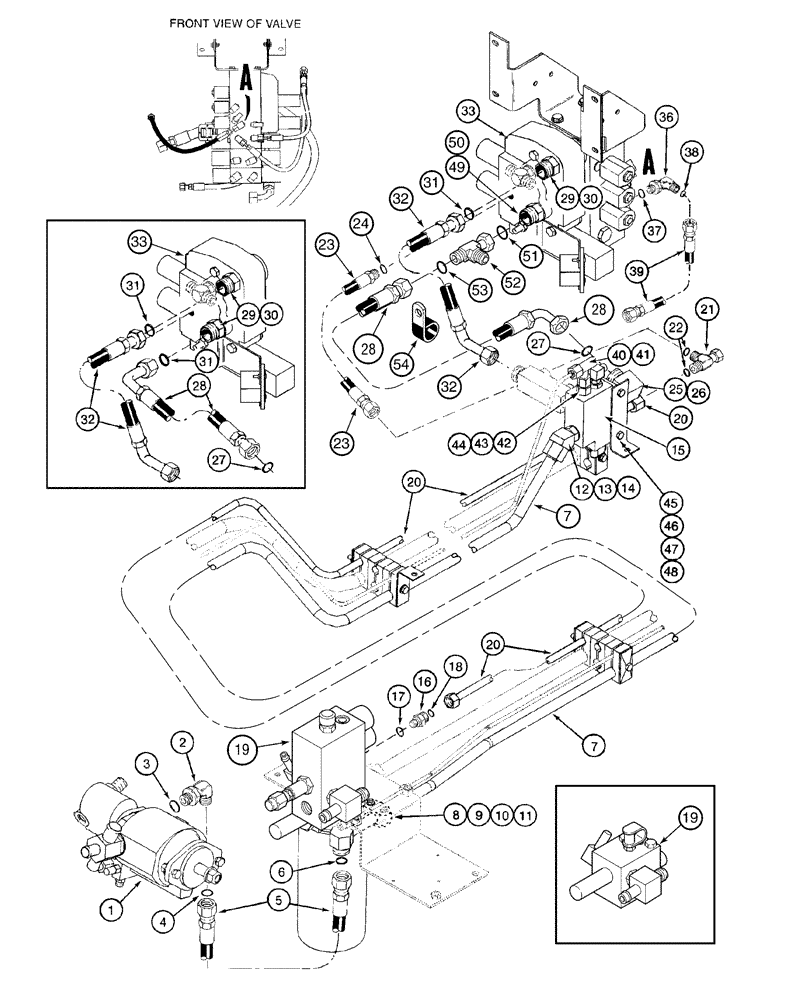

Запчасти Case IH 2388 (08-10[02]) - HYDRAULICS - HEADER LIFT VALVE SUPPLY, ASN JJC0270500 (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

Pump, Hydraulic, Auxiliary, See Figure 08-09

1шт.

Order Component Parts

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 3, 4

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

127988A1

FLEXIBLE HOSE

840 mm (33-1/8"), Header Lift Supply

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

124375A2

TUBE

Header Lift Supply

1шт.

8

1541538C1

CLAMP

Two Piece, 3/4" OD Tube

1шт.

9

1541537C1

PLATE

1шт.

10

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

11

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

12

201-352

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Includes Ref. 13, 14

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

114851A2

VALVE

Steering, See Figure 05-41

1шт.

16

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Includes 17, 18

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

384307A1

SOLENOID VALVE

Pressure Regulator, See Figure 08-30 (02)

1шт.

20

126870A1

TUBE

Supply, From Pressure Regulator

1шт.

21

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Includes 22

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

128101A1

FLEXIBLE HOSE

690 mm (27-1/4"), Includes 24, Header Lift Valve Regulator Supply

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 26, 27, Start Serial: JJC0268800

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

400633A1

FLEXIBLE HOSE,16mm ID x 735mm L

735 mm (28-15/16"), Header Lift Valve Supply, Start Serial: JJC0268800

1шт.

29

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 30, 31

1-2шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

128097A1

HOSE,19.05mm ID x 710mm L

710 mm (28"), Header Lift Valve Return

1шт.

33

124565A3

VALVE, CONTROL

Header Lift, See Figure 08-13

1шт.

33

124566A3

VALVE, CONTROL

Header Lift With Reel Fore and Aft, See Figure 08-15

1шт.

33

124567A3

VALVE, CONTROL

Header Lift With Reel Fore and Aft and Field Tracker, See Figure 08-16

1шт.

33

124567A3R

REMAN-HYD VALVE

Reman Header Lift With Reel Fore and Aft and Field Tracker, See Figure 08-16

1шт.

33

124567A3C

CORE-VALVE HYD

Core Return Number

1шт.

36

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Includes Ref. 37, 38

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

39

127997A1

FLEXIBLE HOSE

640 mm (25-1/4"), Pump Signal to Header Lift Valve

1шт.

40

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

Includes 41

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

42

128328A1

FITTING

With Orifice Check Valve, Includes 43, 44

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

45

124576A1

SUPPORT

1шт.

46

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

47

495-11034

WASHER,5/16", SAE

1шт.

48

231-5315

FLANGE NUT,Flg, 5/16"-18

2шт.

49

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

1-14 fc x 1-1/16-12 Or, Includes 50, 51, Start Serial: JJC0268800

1шт.

50

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

51

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

52

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

, Start Serial: JJC0268800

1шт.

53

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

54

515-23254

CLAMP,1", Insul, 3/8" Bolt

Used with Ref 32

1шт.

55

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

56

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.
