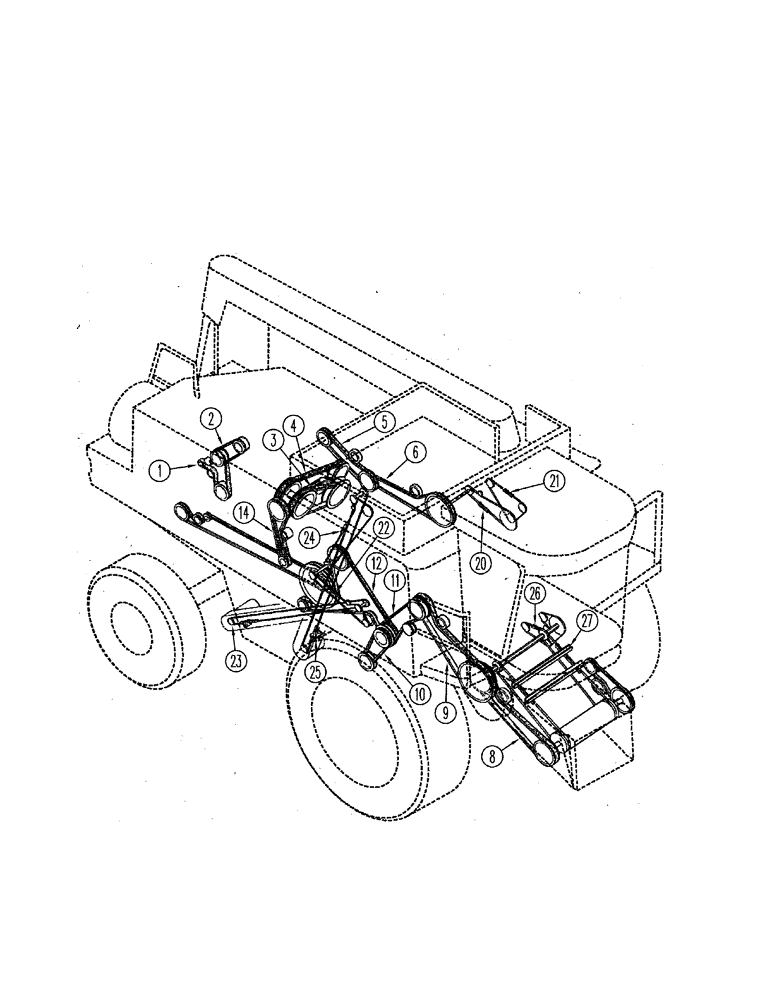

Запчасти Case IH 2388 (01-01) - BELTS - CHAINS (00) - PICTORIAL INDEX

1

Belt See Figure 02-27

1шт.

*

Engine Fan And Alternator

1шт.

2

Belt See Figure 09G-25

1шт.

*

Air Conditioning Compressor

1шт.

3

Belt See Figure 09A-03, 09B-02

1шт.

*

Rotor Drive

1шт.

4

Belt See Figure 09A-05

1шт.

*

Separator Drive

1шт.

5

Belt See Figure 08-09

1шт.

*

Auxiliary Pump Drive

1шт.

6

Belt See Figure 09E-06

1шт.

*

Grain Tank Unloader Drive

1шт.

8

Belt See Figure 09A-12, 09A-13

1шт.

*

Feeder Jackshaft Drive

1шт.

9

Belt See Figure 09A-10

1шт.

*

Feeder Drive

1шт.

10

Belt See Figure 09C-06

1шт.

*

Cleaning Fan Drive

1шт.

11

Belt See Figure 09A-01

1шт.

*

Cleaning Fan Jackshaft

1шт.

12

Belt See Figure 09A-02

1шт.

*

Elevator Drive

1шт.

13

Belt See Figure 09F-02

1шт.

*

Straw Spreader Drive

1шт.

14

Belt See Figure 09A-05 (02)

1шт.

*

Straw Chopper Drive

1шт.

20

Chain See Figure 09E-07

1шт.

*

Grain Tank Unloader Drive

1шт.

21

Chain See Figure 09E-07

1шт.

*

Rear Horizontal Auger Drive

1шт.

22

Chain See Figure 09D-12

1шт.

*

Tailings Elevator Drive

1шт.

23

Chain See Figure 09D-10

1шт.

*

Tailings Elevator Conveyor

1шт.

24

Chain See Figure 09D-04

1шт.

*

Clean Grain Elevator Drive

1шт.

25

Chain See Figure 09D-02

1шт.

*

Clean Grain Elevator Conveyor

1шт.

26

Chain See Figure(s) 09A-25 - 09A-27

1шт.

*

Feeder Reverser Drive

1шт.

27

Chain See Figure 09A-22

1шт.

*

Feeder Conveyor

1шт.

28

Chain See Figure 09B-03

1шт.

*

Rotor Drive Speed Adjustment

1шт.

*

Not Illustrated

1шт.
