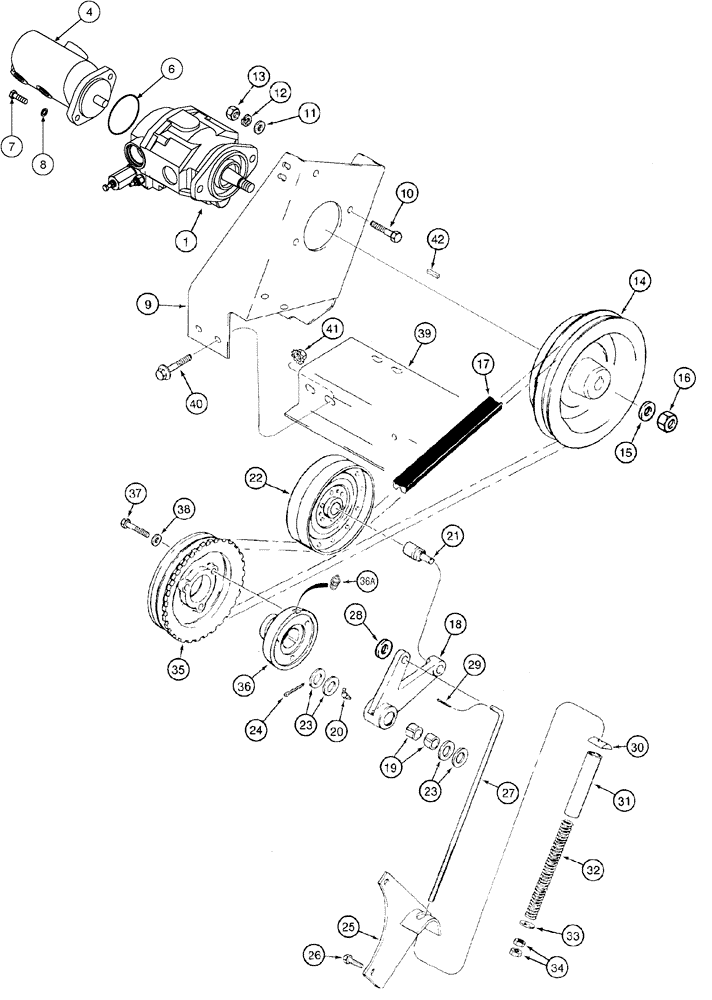

Запчасти Case IH 2388 (08-09) - PUMP, AUXILIARY - MOUNTING AND DRIVE (07) - HYDRAULICS

123266A2

PUMP, HYDRAULIC

Auxiliary, Includes 1 - 8, Serial Range: -JJC0270499

1шт.

NSS

NOT SOLD SEPARAT

Pump, Hydraulic, Auxiliary, Includes 1- 8, 8B, Start Serial: JJC0270500

1шт.

Order Component Parts

1шт.

1

187702A1

PUMP, HYDRAULIC

Piston Type, Front, Includes 2, 3

1шт.

87338787R

REMAN-HYD PUMP

2388 BSN JJC0276540 (1/98-8/04), Reman for New P/N 187702A1

1шт.

87338787C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

187731A1

SEAL KIT

Seal Repair, Piston Pump, Not Illustrated

1шт.

3

187732A1

EQUALIZER

Compensator, Piston Pump, Not Illustrated

1шт.

4

233428A1

PUMP, HYDRAULIC,25.2 CC

Gear Type, Rear, Includes 5, Serial Range: -JJC0270499

1шт.

4

375147A1

PUMP, HYDRAULIC,25.2 CC

Rear, Includes 5, Start Serial: JJC0270500

1шт.

5

233429A1

SEAL KIT

Not Illustrated, Serial Range: -JJC0270499

1шт.

5

291744A1

SEAL KIT

Seal, Not Illustrated, Start Serial: JJC0270500

1шт.

6

238-6042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

Used between pumps

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

495-51041

WASHER,3/8"

, Serial Range: -JJC0270499

2шт.

8

495-81265

WASHER,.391" x 5/8" x .065"

, Start Serial: JJC0273000

2шт.

8a

62-32520

HEX SOC SCREW,1/4"-28 x 1 1/4"

Mounts Regulator to Pump Assembly, Not Illustrated

4шт.

8b

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

112452A1

SUPPORT

Auxiliary Pump, Serial Range: -JJC0272999

1шт.

9

443255A1

SUPPORT

Auxiliary Pump, Start Serial: JJC0273000

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

11

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

2шт.

14

122948A1

PULLEY

Drive, Auxiliary Pump

1шт.

15

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

16

231-46112

LOCK NUT,3/4"-16, GB

1шт.

17

124573A1

V-BELT,2472.76 mm L

Drive, Auxiliary Pump, Serial Range: -JJC0272999

1шт.

17

440498A3

BELT,16.00 mm W x 2550.82 mm L, 2 Ribs

Drive, Start Serial: JJC0273000

1шт.

18

1330517C1

LEVER

Auxiliary Pump Drive, Includes 19

1шт.

19

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

2шт.

20

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

21

274844R91

BEARING ASSY,30mm OD x 73.66mm L

Idler Pulley

1шт.

22

192865C1

PULLEY

8" OD, Idler

1шт.

23

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

1шт.

24

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

25

87614053

BRACKET

Pump Drive

1шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

27

191823C2

ROD

Auxiliary Drive Jackshaft

1шт.

28

495-11053

WASHER,1/2", SAE

1шт.

29

432-1216

COTTER PIN,3/16" x 1"

1шт.

30

194652C1

PIVOT

1шт.

31

1989254C1

SPACER

165 mm (6-1/2")

1шт.

32

V368

SPRING

1шт.

33

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

1шт.

34

425-108

NUT,1/2" - 13, Gr 5

2шт.

35

1330488C1

PULLEY

8.85 OD, Drive, Auxiliary Pump

1шт.

Items 35 - 38 are part of the gearbox assembly. See Figure 06-01.

1шт.

36

196482C3

HUB

Grease Fitting Access Hole

1шт.

36a

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

37

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

38

495-11053

WASHER,1/2", SAE

3шт.

39

112454A3

SUPPORT

Jackshaft and Auxiliary Pump, For Mounting, See Figure 09A-04, Ref. 1, Serial Range: -JJC0270499

1шт.

39

112454A5

SUPPORT

Jackshaft and Auxiliary Pump, For Mounting, See Figure 09A-04, Start Serial: JJC0270500

1шт.

40

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

4шт.

41

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

4шт.

42

194022A1

KEY

Pump Shaft

1шт.
