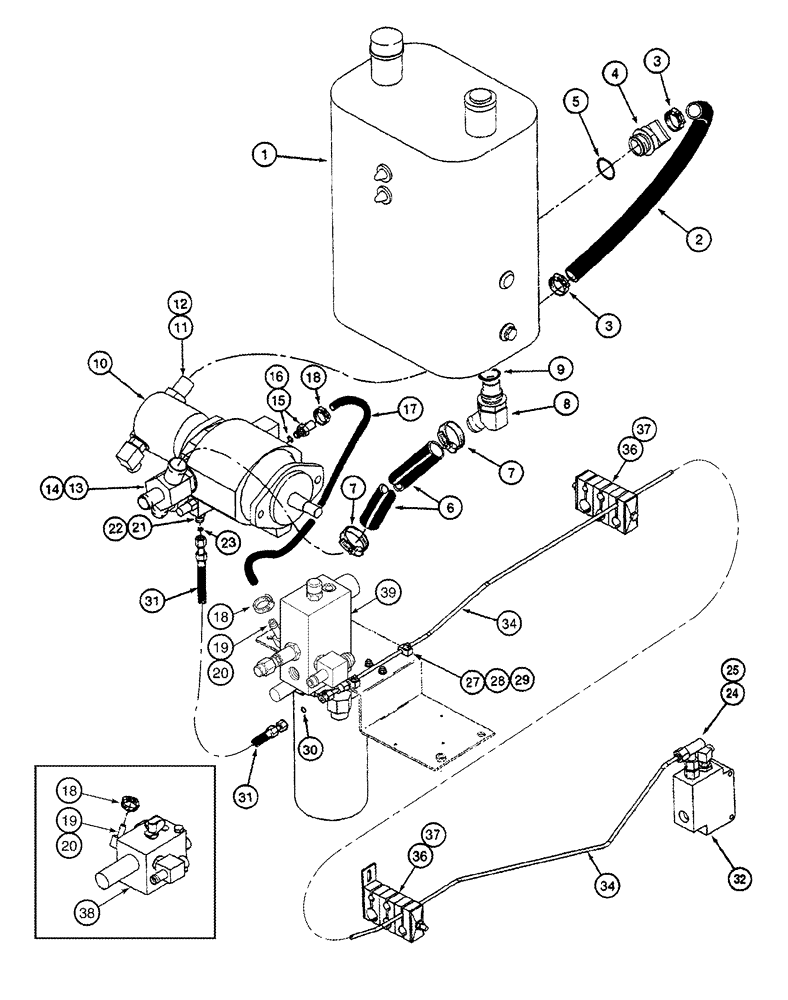

Запчасти Case IH 2388 (08-07[01]) - HYDRAULICS - AUXILIARY PUMP SUPPLY, BSN JJC0270499 (07) - HYDRAULICS

1

123413A3

TANK, HYDRAULIC OIL

See Figure 08-01

1шт.

2

1541692C1

FLEXIBLE HOSE

640 mm (25-1/4"), Suction to Reel Drive Pump, Cut from 1541952C1

1шт.

3

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

4

217-322

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

Incl Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

6

184618A1

FLEXIBLE HOSE

305 mm (12-1/8"), Suction to Header Lift Pump, Cut from 1541953C1

1шт.

7

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

8

182811A1

ELBOW

Includes 9

1шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

10

123266A2

PUMP, HYDRAULIC

Auxiliary, See Figure 08-10

1шт.

11

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Includes 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

182813A1

TEE

1-1/4" x 1" x 1", Includes 14

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

15

217-387

FITTING,3/8" Hose Barb x 9/16" - 18 Male ORB

Includes 16

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

128005A1

HYDRAULIC HOSE,9.52 mm ID x 445.00 mm

Pump Case Drain, Cut from S118400X

1шт.

18

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

19

113896A1

TEE

Includes 20, Serial Range: -JJC0268799

1шт.

19

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

Includes 20, Start Serial: JJC0268800

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Includes 22, 23

1шт.

22

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

24

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

Includes 25

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

27

236558A1

CLAMP

2шт.

28

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

29

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

31

255209A1

FLEXIBLE HOSE

530 mm (20-7/8"), Pump Signal

1шт.

31a

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Not Illustrated

1шт.

32

114851A2

VALVE

Steering, See Figure 05-41

1шт.

34

252596A1

TUBE,0.375" OD, 2106.5 mm Length

Signal

1шт.

36

255212A1

CLAMP

1шт.

37

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

38

REF

INSTRUCTION

Valve, Pressure, See Figure 08-19, Serial Range: -JJC0268799

1шт.

39

REF

INSTRUCTION

Valve, Pressure, See Figure 08-30 (01), Start Serial: JJC0268800

1шт.
