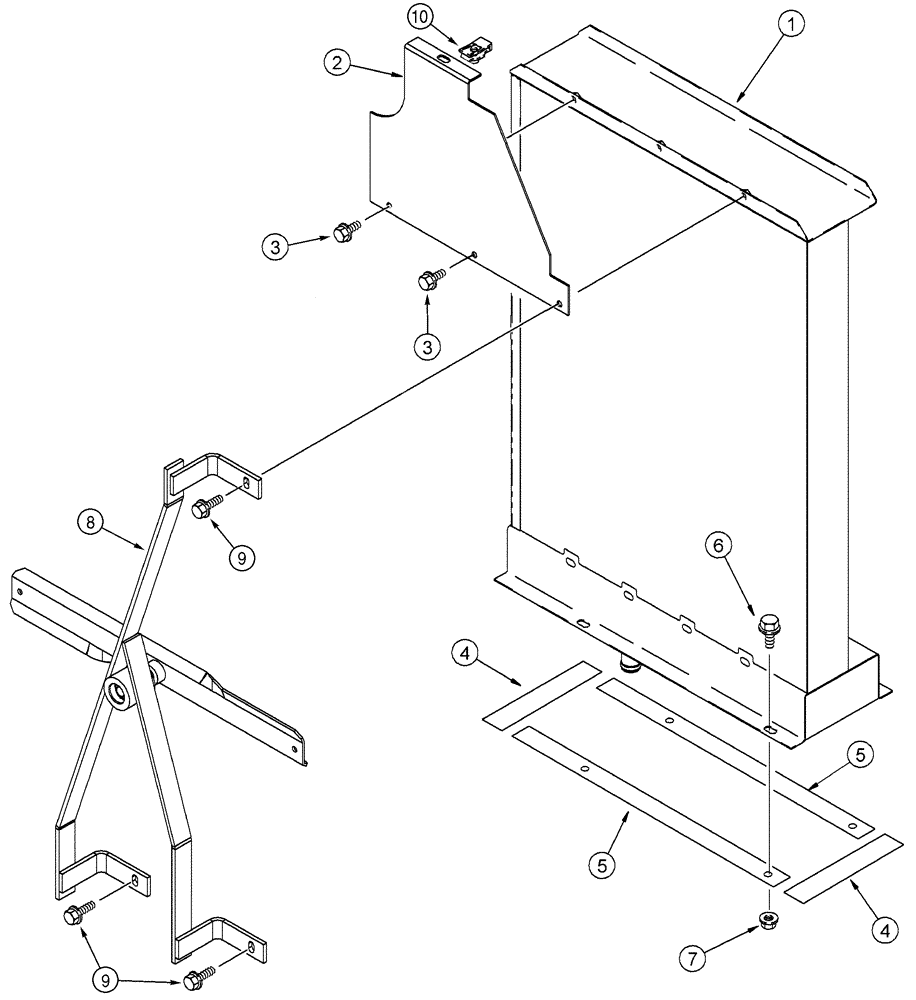

Запчасти Case IH 2388 (08-06) - OIL COOLER - MOUNTING - BSN JJC0273000 (07) - HYDRAULICS

1

275096A2

OIL COOLER,Corn/Grain

1шт.

Corn and Grain Combine

1шт.

1

275098A2

OIL COOLER

1шт.

Rice Combine

1шт.

2

277806A3

SHEET

Also, See Figure 02-12, Order Ref. 3 or 3A

1шт.

3

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

4

278844A1

SEAL

192 mm (7-1/2") Cut from 195917C1

2шт.

5

278845A1

SEAL

524 mm (20-5/8") Cut from 195917C1

2шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

7

231-5146

FLANGE NUT,3/8"-16

4шт.

8

339571A1

FAN

Oil Cooler Cleaning Blade

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

10

488837C1

SPRING NUT

5/16"

1шт.
