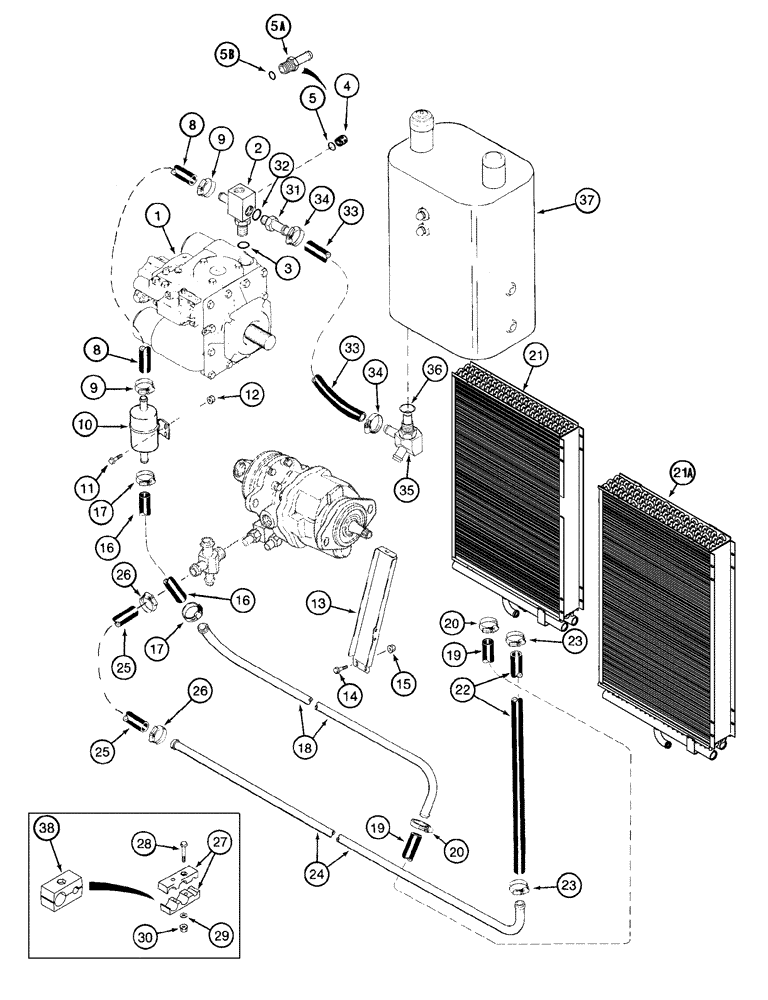

Запчасти Case IH 2388 (08-05) - OIL COOLER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP Assy, Hydrostatic, See Figure(s) 06-09 - 06-13

1шт.

2

123521A2

TEE

Includes 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

76349

PLUG,9/16" - 18 ORB

Incl. 5

1шт.

Without Power Guide Axle

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5a

217-397

FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB

Incl 5B

1шт.

With Power Guide Axle

1шт.

5b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

177678A1

TEMPERATURE SWITCH

Includes 7, Oil Temperature, Not Illustrated, See Figure 04-03, Ref. 22

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not Illustrated, See Figure 04-03, Ref. 22A

1шт.

8

241035A1

HOSE,25.40 mm ID x 510.00 mm

Pump to Filter, Cut from 364361C1

1шт.

9

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

10

123488A1

FILTER SCREEN

In-Line

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.

13

237714A1

SUPPORT

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

15

231-5146

FLANGE NUT,3/8"-16

2шт.

16

127983A1

HYDRAULIC HOSE,25.40 mm ID x 430.00 mm

Filter to Tube, Cut from 1541952C1

1шт.

17

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

18

126851A1

TUBE,1832, 284 mm Length

Oil Cooler Return

1шт.

19

121298A1

HYDRAULIC HOSE,25.40 mm ID x 890.00 mm, SAE 16

Tube to Cooler, Cut from 364361C1, Serial Range: -JJC0273000

1шт.

19

238622A1

HYDRAULIC HOSE,737.00 mm

Cut from 364361C2, Start Serial: JJC0273000

1шт.

20

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1-2шт.

20

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

, Start Serial: JJC0273000

1шт.

21

275096A2

OIL COOLER,Corn/Grain

For Mounting, See Figure 08-06, Serial Range: -JJC0272999

1шт.

Corn and Grain Combine

1шт.

21

444921A2

OIL COOLER

Shown, Start Serial: JJC0273000

1шт.

Corn and Grain Combine

1шт.

21a

275098A2

OIL COOLER

For Mounting, See Figure 08-06, Serial Range: -JJC0272999

1шт.

Rice Combine

1шт.

21a

446343A2

COOLER

Oil, Shown, Start Serial: JJC0273000

1шт.

Rice Combine

1шт.

22

121298A1

HYDRAULIC HOSE,25.40 mm ID x 890.00 mm, SAE 16

Cooler to Tube, Cut from 364361C1

1шт.

23

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

24

126850A1

TUBE,1832, 127 mm Length

Cooler Supply

1шт.

25

128080A1

HYDRAULIC HOSE,25.40 mm ID x 760.00 mm

Cut from 1541952C1

1шт.

26

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

27

227575A1

CLAMP

, Serial Range: -JJC0270499

2шт.

28

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

28a

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

Not Illustrated

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

30

231-5345

FLANGE NUT,Flg, 5/16"-18

4шт.

31

123487A1

VALVE

40 psi, Includes 32

1шт.

32

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

33

1347315C3

HYDRAULIC HOSE,1.00" ID x 26.00"

Cut from 3 x 364361C1

1шт.

34

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

35

182812A1

TEE

Includes 36

1шт.

36

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

37

REF

INSTRUCTION

TANK, Hydraulic Oil, See Figure 08-01

1шт.

38

1347071C1

CLAMP

1" Dual, Start Serial: JJC0270500

2шт.
