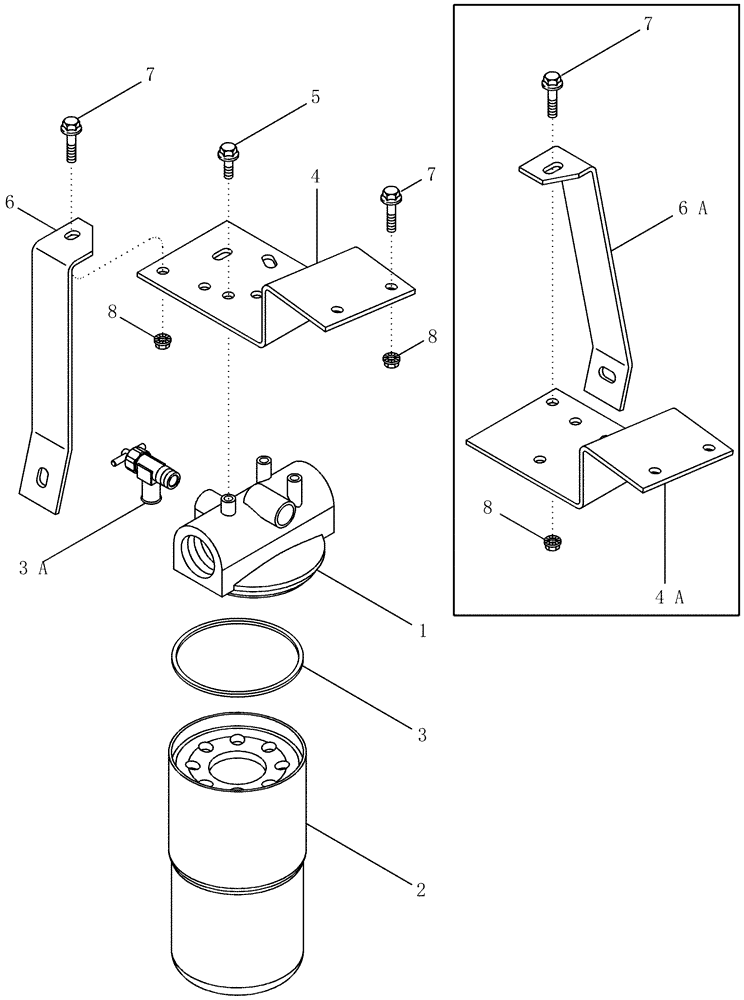

Запчасти Case IH 2388 (08-04) - HYDROSTATIC - FILTER, PUMP SUCTION - SUCTION FILTER MOUNTING (07) - HYDRAULICS

87784C92

HYDRAULIC OIL FILTER

Includes 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

Head, Order 87784C92

1шт.

2

A177605

HYDRAULIC OIL FILTER

Order Kit 1329214C1

1шт.

Note: Both elements must be changed at the same time.

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

Order Kit 1329214C1

1шт.

3a

301803R1

SHUT-OFF VALVE

1шт.

4

1979993C2

SUPPORT

, Serial Range: -JJC0272999

1шт.

4a

444454A1

BRACKET

, Start Serial: JJC0273000

1шт.

5

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

4шт.

6

1989389C1

SUPPORT

Replaced By 444455A1, Serial Range: -JJC0272999

1шт.

6a

444455A1

STRAP

, Start Serial: JJC0273000

1шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

3шт.

8

231-5146

FLANGE NUT,3/8"-16

1шт.

1329214C1

HYDRAULIC OIL FILTER

Includes Two Elements and Four Seals

1шт.

Note: Both elements must be changed at the same time.

1шт.
