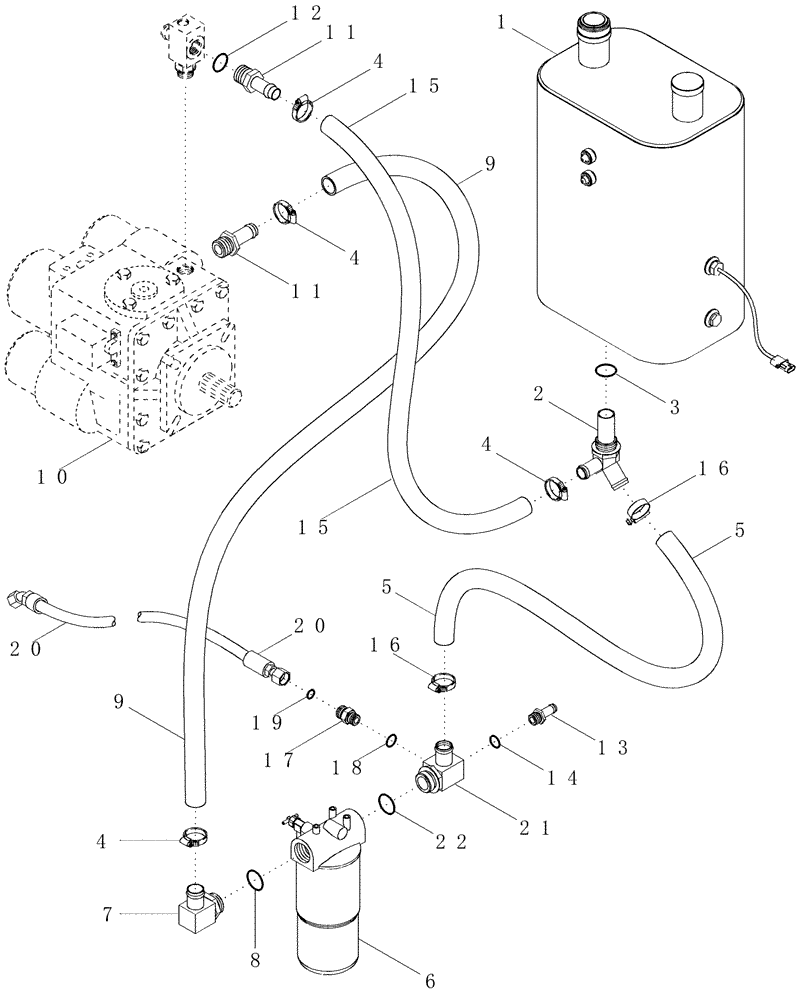

Запчасти Case IH 2388 (08-02[02]) - HYDRAULICS - RESERVOIR TO HYDROSTATIC PUMP - ASN JJC0273000 (07) - HYDRAULICS

1

86991459

RESERVOIR, HYDRAULIC

See Figure 08-01

1шт.

2

182812A1

TEE

Includes 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

4шт.

5

1541691C1

FLEXIBLE HOSE

815 mm (32"), Serial Range: Filter-Reservoir

1шт.

6

87784C92

HYDRAULIC OIL FILTER

Return, See Figures 08-03, 08-04

1шт.

7

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Includes 8

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

109207A1

FLEXIBLE HOSE

737 mm (29"), Charge Pump Suction, Cut from 1541953C1

1шт.

10

REF

INSTRUCTION

PUMP, Hydrostatic Charge, See Figure(s) 06-09 - 06-13

1шт.

11

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

Includes 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

86990109

HOSE,15.88 mm ID x 635.00 mm

To Unloader Clutch Valve, Cut from S118576X

1шт.

16

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

17

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 18, 19

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

370263A1

FLEXIBLE HOSE

660 mm (26"), To Air Screen Motor

1шт.

21

370228A1

FITTING,1 5/8"-12 ORB x 7/8"-14 x M31.75 Bead x 7/8"-14

90, Special, Incl. 22

1шт.

22

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.
