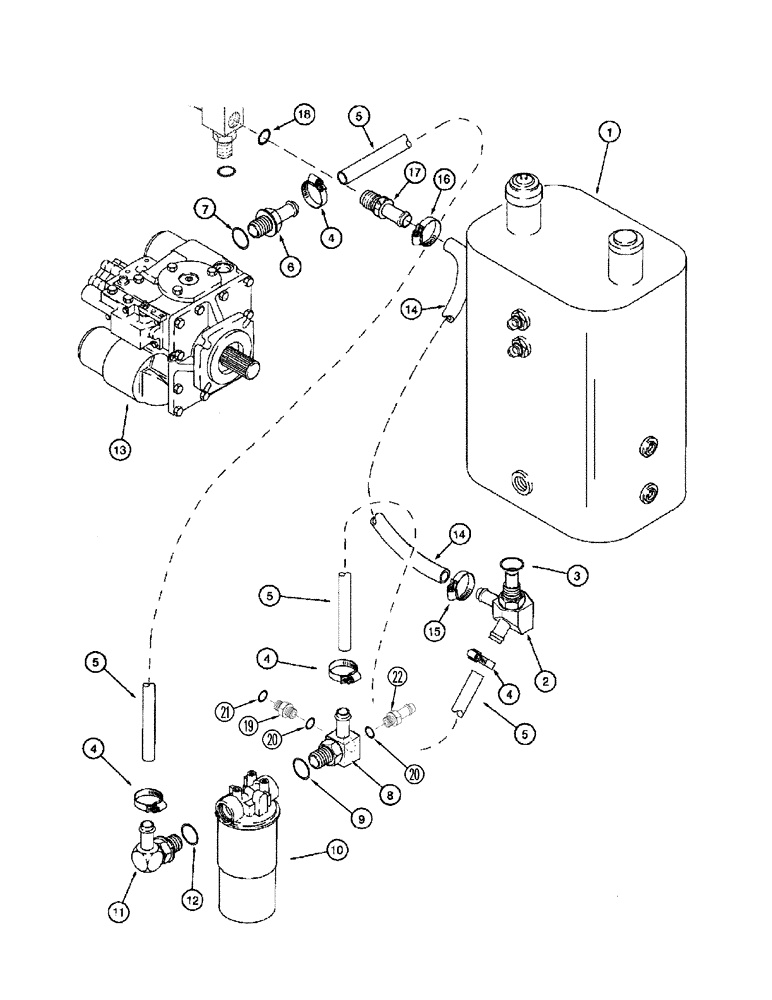

Запчасти Case IH 2388 (08-02[01]) - HYDRAULICS - RESERVOIR TO HYDROSTATIC PUMP - BSN JJC0273000 (07) - HYDRAULICS

1

123413A3

TANK, HYDRAULIC OIL

See Figure 08-01

1шт.

2

182812A1

TEE

Includes 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

3шт.

5

109207A1

FLEXIBLE HOSE

Charge Pump Suction, 737 mm (29"), Cut from 123487A1

2шт.

6

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

123522A1

FITTING

Includes 9, Serial Range: -JJC0270499

1шт.

8

370228A1

FITTING,1 5/8"-12 ORB x 7/8"-14 x M31.75 Bead x 7/8"-14

90, Special, Incl. 9, Start Serial: JJC0270500

1шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

10

87784C92

HYDRAULIC OIL FILTER

See Figure(s) 8-03, 8-04

1шт.

11

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Includes 12

1шт.

12

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

13

REF

INSTRUCTION

PUMP Assy, Hydrostatic, See Figure(s) 06-09 - 6-13

1шт.

14

1347315C3

HYDRAULIC HOSE,1.00" ID x 26.00"

Tee to Cooler Bypass Valve, Cut From 364361C1

1шт.

15

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

16

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

17

123487A1

VALVE

40 psi, Includes 18

1шт.

18

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

19

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 20, 21

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

22

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

Includes 20

1шт.
