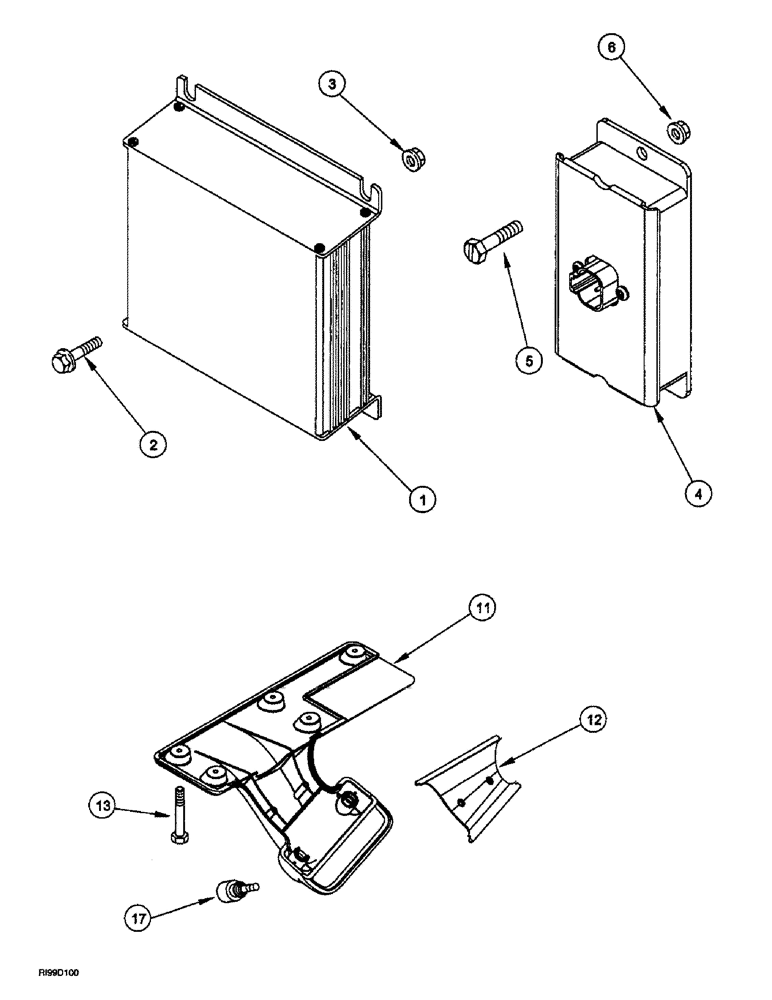

Запчасти Case IH 2388 (04-52) - AFS YIELD MONITOR INTERFACE UNIT PACKAGE (06) - ELECTRICAL

336469A2

PACKAGE

Yield Monitor Interface Unit

1шт.

1

348084A3

AFS PARTS & PACKAGES

MONITOR - Yield Monitor Interface Unit Without Software

1шт.

1

86976394R

REMAN ELECT CONTROL

2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540, MONITOR - Yield Monitor Interface Unit Without Software (1/98-8/04), Reman for New PN 348084A3

1шт.

1

86976394C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

3шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

4

284638A2

ELEC CONNECTOR,4 Pin

Terminator

1шт.

5

363-31012

SCREW,Hex Wash Hd, #10-24 x 3/4"

2шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

7

365513A1

WIRE HARNESS

Main Yield Monitor Interface Unit Exterior

1шт.

8

365512A1

WIRE HARNESS

Yield Monitor Cab Display (See Page 04-50)

1шт.

9

105849A1

RELAY

20 amp, Continuous Duty, (Not Illustrated)

1шт.

10

121412A1

FUSE,10A, Mini, Red

(Not Illustrated)

2шт.

11

351004A2

SUPPORT

Includes 17

1шт.

12

327387A1

COVER

Display Mounting

1шт.

13

463-11016

SCREW,Hex Hd, #10-24 x 1"

5шт.

14

131-893

CLIP,#10 - 24

Not Illustrated

2шт.

15

231-51409

SERRATED NUT,Flg, USR, #10-24

Not Illustrated

3шт.

16

495-31022

WASHER,#10

Not Illustrated

5шт.

17

319731A1

SCREW

Retractable, M5

2шт.

18

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

Not Illustrated

2шт.

19

318575A1

WIRE HARNESS

Yield Sensor (Not Illustrated)

1шт.

20

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP (Not Illustrated)

1шт.

21

232801A1

DOOR SEAL

Door, 1016 mm (40 inch) long, (Not Illustrated)

1шт.

22

6-5951

MANUAL, OPERATORS

Universal Display and Universal Display Plus Yield Monitor (Not Illustrated) (Order Direct from DMC)

1шт.

23

7-88591

INSTRUCTION

CARD - Quick Reference, AFS Display Operation (Not Illustrated) (Order Direct from DMC)

1шт.

24

7-89241

INSTRUCTION

Yield Monitor Interface Installation, 2000 series combines (Not Illustrated) (Order Direct from DMC)

1шт.
