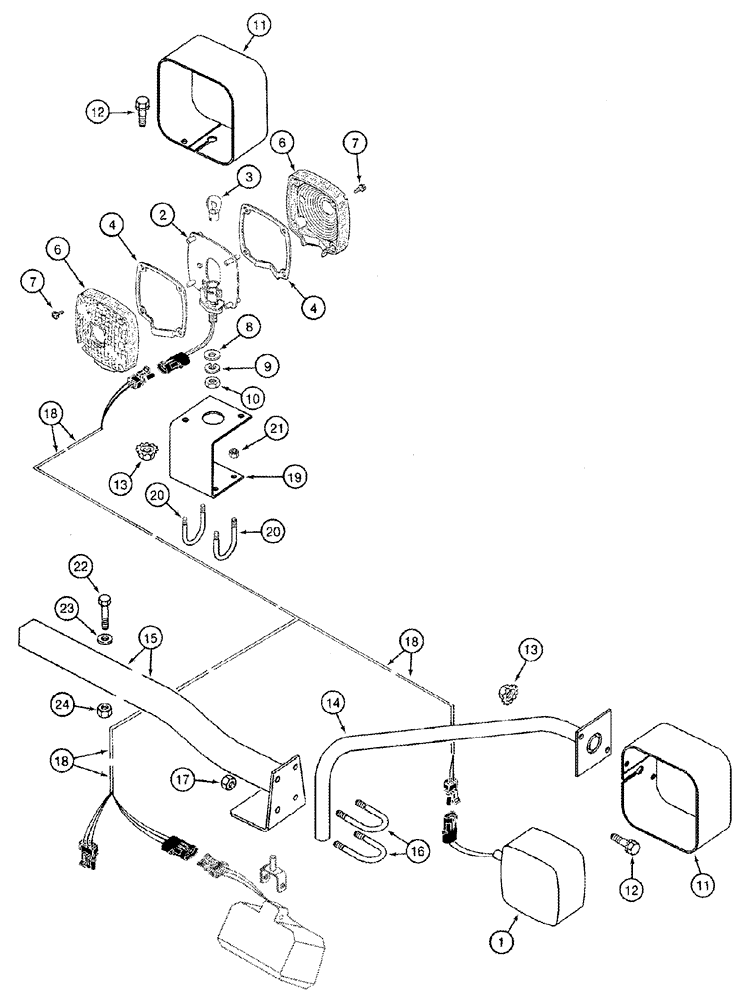

Запчасти Case IH 2388 (04-44) - LAMP ASSY - FLASHERS - SIDE 144 INCH AND 180 INCH AXLES - EXTENDED DECKS BSN JJC0268799 (06) - ELECTRICAL

1

134454A1

LAMP,Halogen, 12V, 32W, Clear

Includes 2 - 10

2шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

A43731

GASKET

2шт.

A44202

KIT

Includes 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Lens

2шт.

7

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

8шт.

8

495-11053

WASHER,1/2", SAE

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

10

425-118

NUT,1/2"-20, G5

1шт.

11

126890A1

SHIELD

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

14

191919A1

SUPPORT

Lamp Extension, Marker Lamp, RH

1шт.

15

192112A1

SUPPORT

Lamp Mounting, Aftercut Lamp, RH

1шт.

16

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

2шт.

17

231-1445

NUT,5/16"-18, GB

4шт.

18

192474A1

WIRE HARNESS

Extension, Flasher Lamps

1шт.

19

192093A1

SUPPORT

Lamp Mounting, Marker Lamp, LH

1шт.

20

188528A1

U-BOLT,1/4" - 20 x 34.80mm W x 44mm L, Gr 5

BOLT "U"

2шт.

21

231-1444

NUT,1/4"-20, GB

4шт.

22

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

23

495-11034

WASHER,5/16", SAE

2шт.

24

231-1445

NUT,5/16"-18, GB

2шт.
