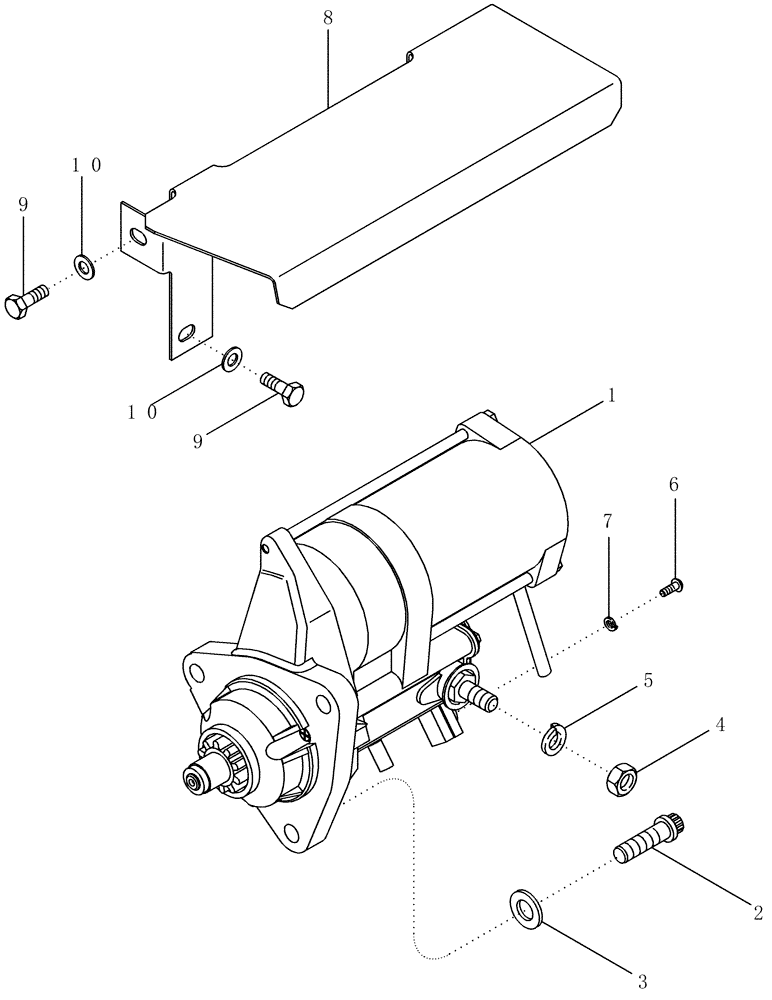

Запчасти Case IH 2388 (04-39) - STARTER - MOUNTING - BSN JJC0274396 (06) - ELECTRICAL

1

87413500

STARTING MOTOR

Replaces 193432A2, See Figure 04-41

1шт.

1

193432A2R

REMAN-STARTER,12V, 4.8kW

Remanufactured Starter 12 volt, 4.0 KW

1шт.

1

193432A2C

CORE-STARTER,12V, 4.8kW

Return Part Number, Starter 12 volt, 4.0KW

1шт.

2

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

3шт.

3

892-11012

LOCK WASHER,M12

3шт.

4

825-1412

NUT,M12, Cl 8

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

258820A1

SCREW

M5 x 8

1шт.

7

892-11005

LOCK WASHER,M5

1шт.

8

430382A2

SHIELD

Starter

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.
