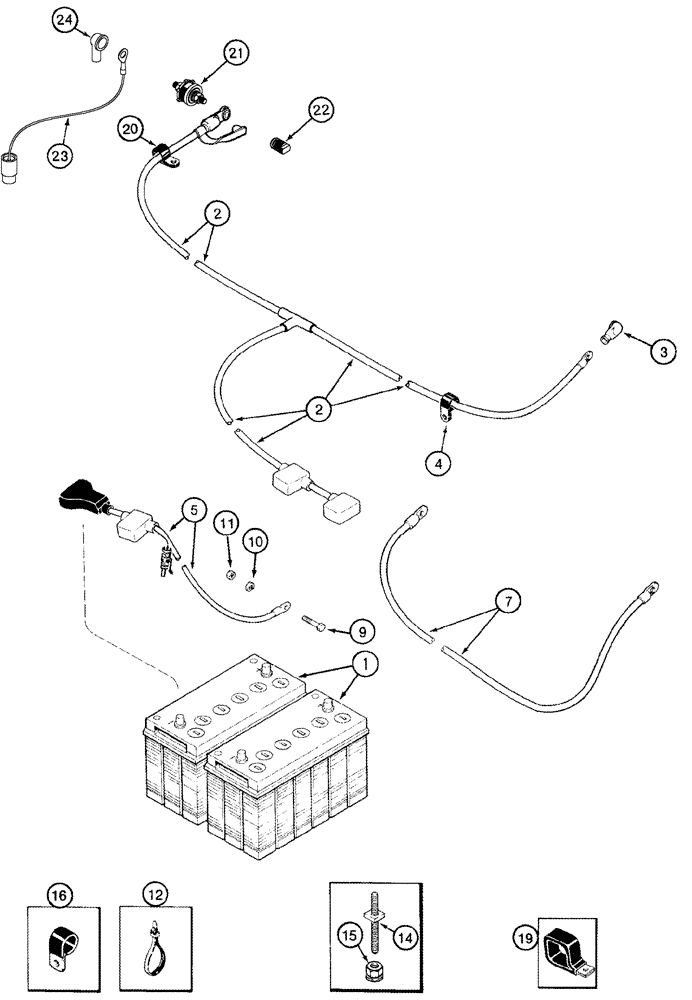

Запчасти Case IH 2388 (04-36) - BATTERY - CABLES (06) - ELECTRICAL

1

BMF31G

BATTERY, DRY

BATTERY DRY 12V

2шт.

2

278034A2

CABLE

Positive, Includes 3, Serial Range: -JJC0274396

1шт.

2

87419381

POS BATTERY CABLE

, Start Serial: JJC0274450

1шт.

3

S115407

BOOT

1шт.

4

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

16шт.

4

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

1шт.

5

278043A1

NEG BATTERY CABLE

Ground, Cab Power

1шт.

7

128742A2

NEG BATTERY CABLE

Engine Ground

1шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15"

2шт.

14

128289A1

BOLT,5/16" - 18 x 2 3/16"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

231-5146

FLANGE NUT,3/8"-16

3шт.

18

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Not Illustrated

1шт.

19

1301387C2

CLIP

2" ID, Square

1шт.

20

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

21

190158A1

BLOCK

Junction

1шт.

22

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

Jump Start

1шт.

23

277019A2

CABLE

Cab Power

1шт.

24

399470R1

BOOT

1шт.
