Запчасти Case IH 2388 (04-26) - POTENTIOMETER, FEEDER POSITION - MOUNTING - YIELD MONITOR (06) - ELECTRICAL

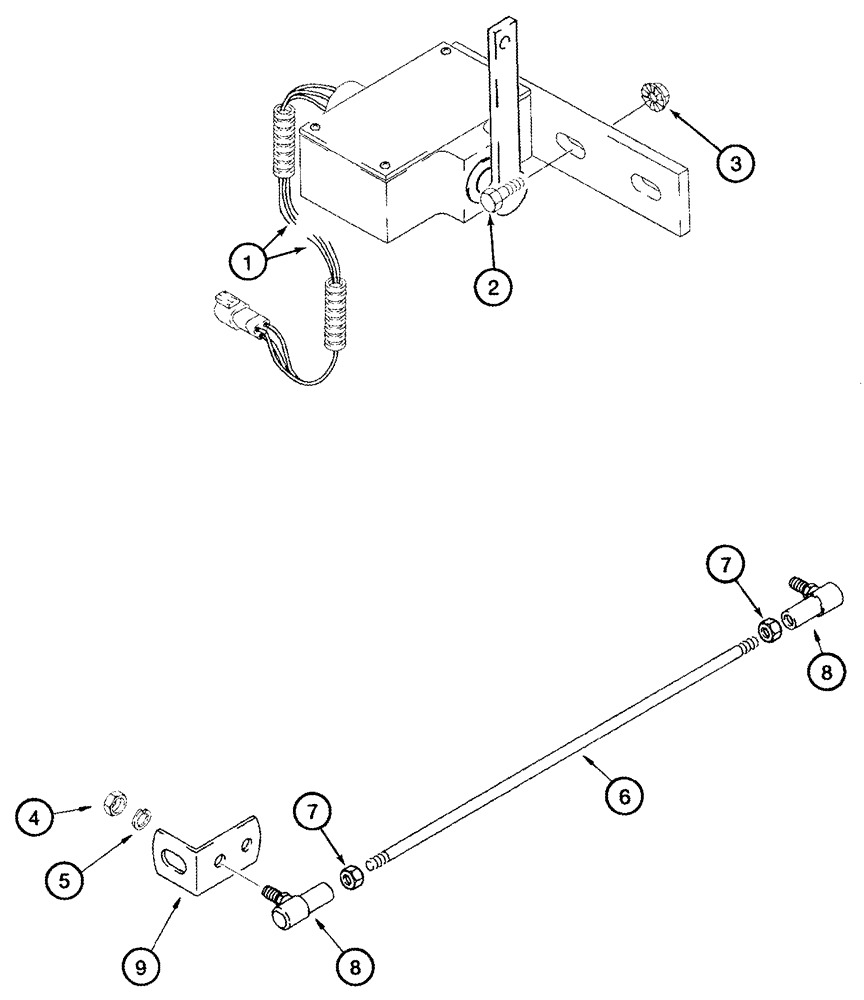

Схема запчастей Case IH 2388 - (04-26) - POTENTIOMETER, FEEDER POSITION - MOUNTING - YIELD MONITOR (06) - ELECTRICAL
8
7
4
2
1
6
8
5
7
3
9

Артикул

Название

Примечание

Количество

1

239136A1

POTENTIOMETER

Yield Monitor, Right-Hand, See Figure 04-25

1шт.

1

87315265R

REMAN-SENSOR

2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540, Yield Monitor, Right-Hand (1/98-8/04), Reman for New PN 239136A1

1шт.

1

87315265C

CORE-SENSOR

Return Number

1шт.

2

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

4

425-114

NUT,1/4"-28, G5

2шт.

5

492-11025

LOCK WASHER,1/4"

2шт.

6

301522A1

THREADED TIE-ROD

Includes 7

1шт.

7

425-114

NUT,1/4"-28, G5

2шт.

8

A10329

BALL JOINT,1/4" - 28 x 1"

1/4" NF

2шт.

9

127308A2

SUPPORT

1шт.

Выбрано товаров: 11
