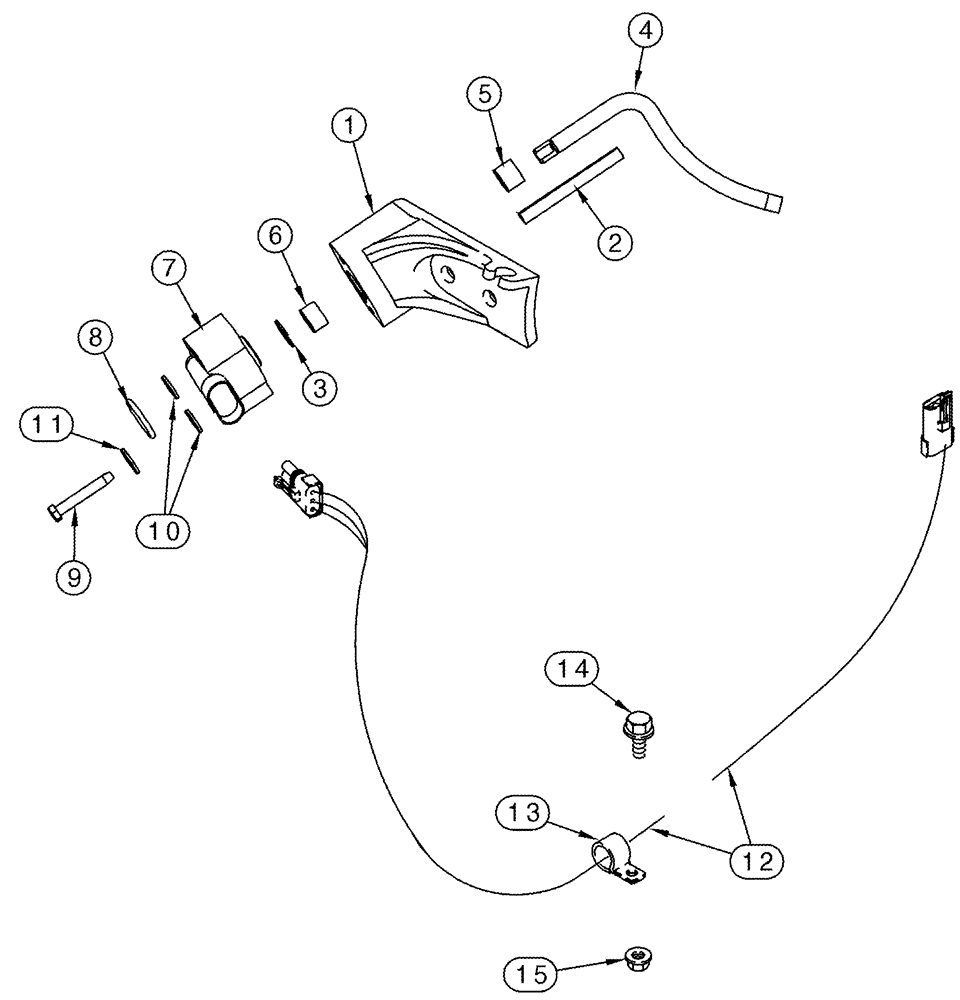

Запчасти Case IH 2388 (04-22) - HARNESS - TAILINGS MONITOR (06) - ELECTRICAL

225763A6

SENSOR

Includes 7 - 11

1шт.

225762A6

HOUSING

Tailings Sensor, Includes 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

38-31636

PIN,1/4" x 2 1/4", Coiled

1шт.

3

103-3431

SNAP RING,#31, Ext, E-Type

1шт.

4

NSS

NOT SOLD SEPARAT

Arm

1шт.

5

239246A1

NEEDLE BEARING,7.94 mm ID x 12.7 mm OD x 9.53 mm

1шт.

6

247223A1

NEEDLE BEARING,7.94 mm ID x 12.7 mm OD x 7.92 mm

1шт.

7

221847A1

SENSOR

Tailings Sensor

1шт.

8

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

9

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

2шт.

10

495-31022

WASHER,#10

2шт.

11

239809A1

WASHER,8mm ID x 14mm OD x 1.2mm Thk

1шт.

12

225384A4

WIRE HARNESS

Tailings Monitor

1шт.

13

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

15

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.
