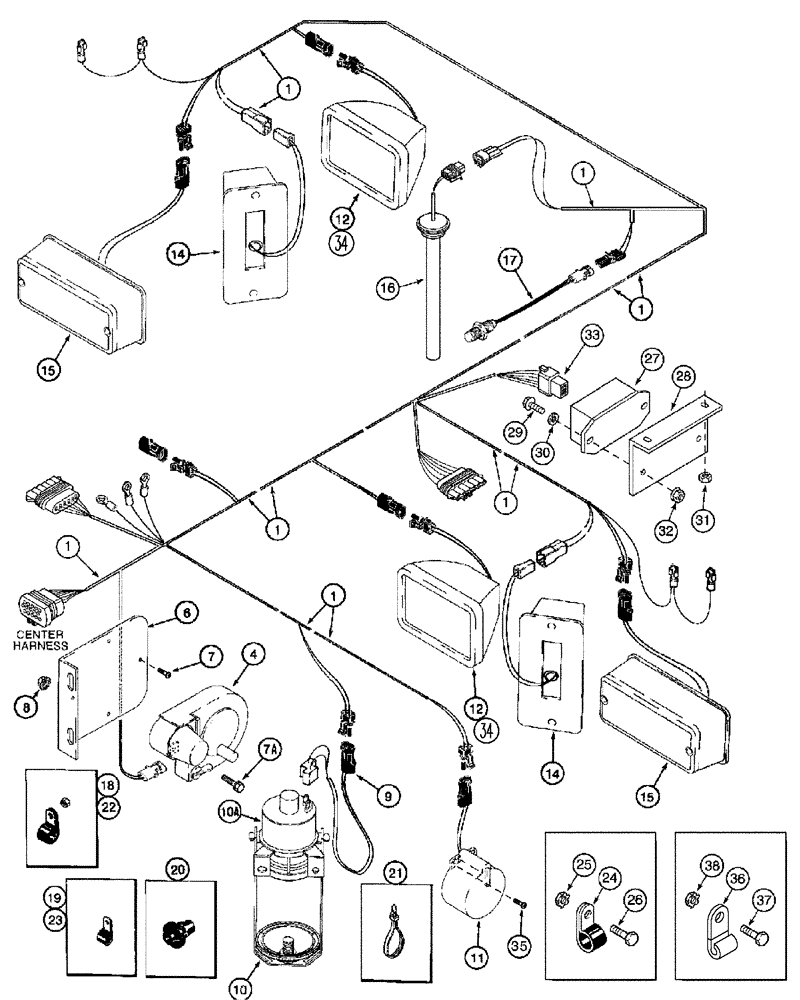

Запчасти Case IH 2388 (04-18) - HARNESS, REAR ASN JJC0268800 (06) - ELECTRICAL

1

388318A5

WIRE HARNESS

Rear, Includes 2, 3, Serial Range: JJC0268800-JJC0272999

1шт.

1

441972A1

WIRE HARNESS

Rear, Includes 2, 3, Start Serial: JJC0273000

1шт.

2

187308A1

CAP

Not Illustrated

1шт.

3

187309A1

BAR

Splice, Not Illustrated

1шт.

4

127813A1

LAMP

Service, RH, Includes 5

1шт.

5

H40556

BULB

12V, Not Illustrated

1шт.

6

139049A2

SUPPORT

1шт.

7

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

3шт.

7a

905-8020

BOLT,Hex Flg, M8 x 20mm

4шт.

8

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

9

141730A1

WIRE HARNESS

Ether Injection

1шт.

10

185552A2

SOLENOID

12V, Ether Injection, See Figure 02-20, Includes 10A

1шт.

10a

190752A1

HOUSING

1шт.

11

1345485C3

TRANSMITTER

Rotary Air Screen

1шт.

12

185116A1

HEADLIGHT,12V, 37.5W

Rear Flood, Includes 13, Serial Range: -JJC0270499

2шт.

13

139120A1

BULB

Type C-6, No. 894, Not Illustrated

1шт.

14

130882C91

LAMP

See Figure 04-33

2шт.

15

92260C1

LAMP,12V, 27W, Red

Stop, Tail, See Figure 04-33

2шт.

16

356872A1

SENDER UNIT

SENDER Fuel Level

1шт.

17

245193C2

SENSOR

Speed, Straw Spreader

1шт.

18

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

3шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

7шт.

18

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

4шт.

19

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

4шт.

20

195804C1

GROMMET

2шт.

21

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

23

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

24

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

1шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

26

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

27

86561136

MODULE

Flasher

1шт.

28

393955A1

BRACKET

1шт.

29

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

30

495-11028

WASHER,1/4", SAE

2шт.

31

231-4144

NUT,1/4"-20, GB

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

396377A1

MULTIPOLE CONNECTOR,6 Pin

6 Pin

1шт.

34

430505A1

LAMP,Halogen, 12V, 35W, Clear

See Figure 04-46, Start Serial: JJC0270500

2шт.

35

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.

36

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

1шт.

37

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

38

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

39

87300598

KIT

Brake Lights, Australian Production Machines, Includes 40 - 44, Not Illustrated

1шт.

40

87300500

HARNESS

Brake Light

1шт.

41

296462A1

SUPPORT

Brake Light Mounting

1шт.

42

1983341C1

SWITCH

2шт.

43

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

44

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

15шт.
