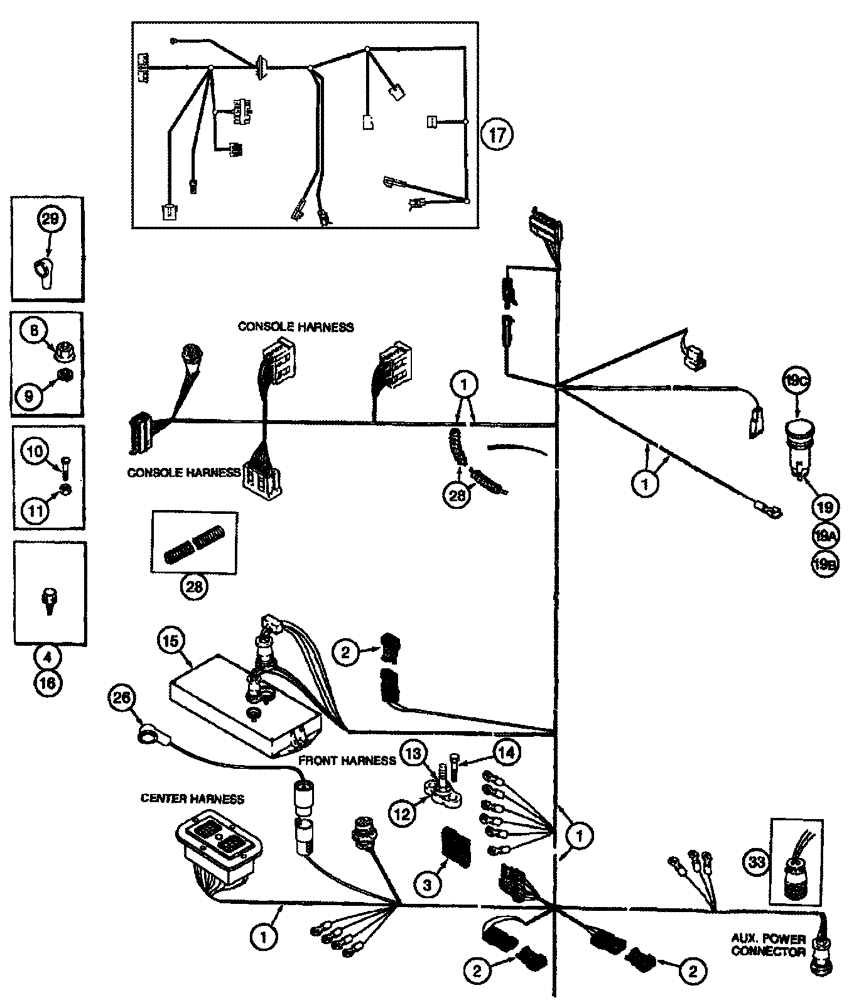

Запчасти Case IH 2388 (04-11) - HARNESS - CAB, LOWER REAR ASN JJC0267150 (06) - ELECTRICAL

1

370779A1

WIRE HARNESS

Cab, See Figure 04-12, Serial Range: -JJC0268799

1шт.

1

388671A2

HARNESS

Cab, See Figure 04-12, Serial Range: JJC0270499-JJC0268800

1шт.

1

388671A3

WIRE HARNESS

Cab, See Figure 04-12, Start Serial: JJC0270500

1шт.

2

A187874

MODULE

Unloader Auger, Concave Clearance Request

2шт.

3

127290A1

DIODE

Rotor/Fan Speed Request

1шт.

4

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Bulkhead Connector

4шт.

8

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

2шт.

10

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

4шт.

11

231-14106

NUT,#6-32, GB

4шт.

12

303717A1

JUNCTION BLOCK

Junction, Switched, B+, Replaces 20-1451T1

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

2шт.

15

239938A5

CONTROL

Header Control

1шт.

15

239938A8R

REMAN-MODULE

Reman for New PN 239938A5

1шт.

15

239938A8C

CORE-MODULE

Return Number

1шт.

16

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

17

377537A1

WIRE HARNESS

Heating and Air Conditioning, Component of 366852A1, See Figure 9G-20 (01)

1шт.

See Figure(s) 09G-14, 09G-15 for seat switch and operator presence harness.

1шт.

See Figure(s) 09G-19, 09G-20 for cab related connections.

1шт.

17

431091A1

WIRE HARNESS

Heating and Air Conditioning, Component of 431088A1 See Figure 09G-20 (02)

1шт.

19

1964773C1

CIGAR LIGHTER

12V, Serial Range: -JJC0268799

1шт.

19a

371831A1

CIGAR LIGHTER

12V, Serial Range: JJC0268800-JJC0273000

1шт.

19b

432212A1

CIGAR LIGHTER

Socket Assy, Start Serial: JJC0273000

1шт.

19c

190812A1

COVER

Cigar Lighter, Start Serial: JJC0273000

1шт.

26

277019A2

CABLE

Cab Power, Inc. 29, See Figure 04-36

1шт.

28

236586A1

CONDUIT

990 mm (39 in)

1шт.

29

399470R1

BOOT

JJC0268800 to

1шт.

33

187103A1

ELEC CONNECTOR

Auxiliary Power

1шт.

Note : Order to use with add-on radios, phones, and other accessories.

1шт.

35

83822C1

TAPE

610 mm (24"), Cut from 1954475C1, Not Illustrated

2шт.

311906A1

KIT

Cab Power, Includes 37 - 39, Not Illustrated

1шт.

These connectors, 277424A1 and 277431A1 are located behind Refs. 6 and 7 on page 09G-03.

1шт.

If broken or loose cab power may be lost and emergency parking brake will engage. Purchase 311906A1 kit to repair.

1шт.

37

277424A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

38

277431A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

39

311905A1

TOOL

Not Illustrated

1шт.

40

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Not Illustrated

3шт.

41

87306774

WIRE HARNESS

1шт.
