Запчасти Case IH 2388 (04-09) - RADIO (06) - ELECTRICAL

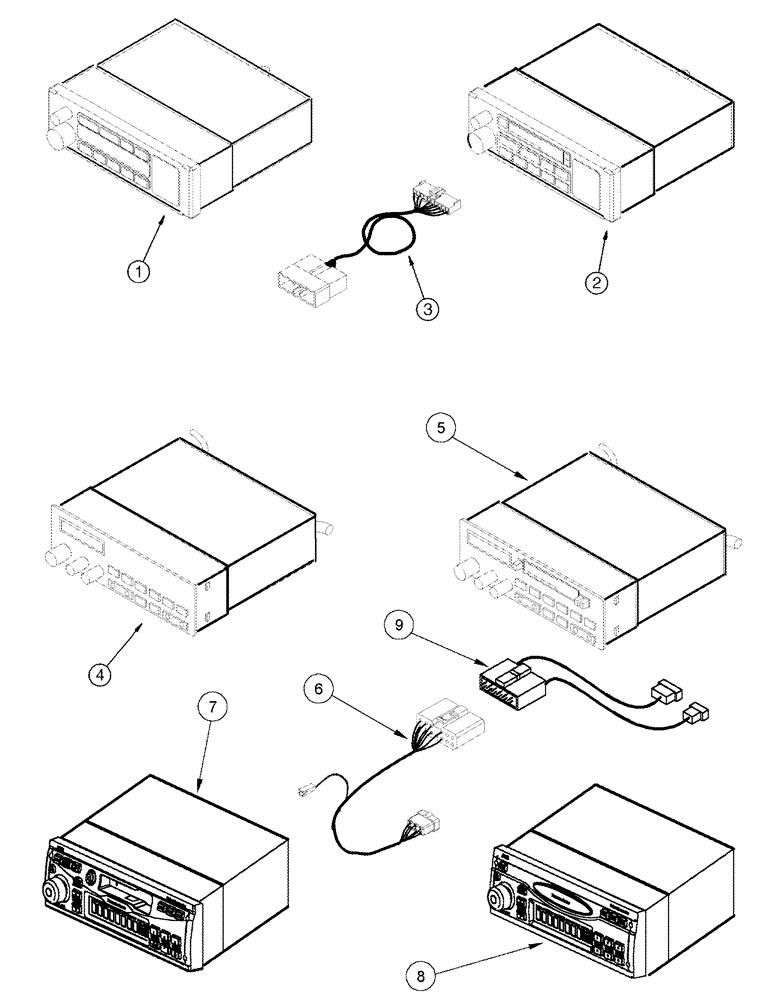

Схема запчастей Case IH 2388 - (04-09) - RADIO (06) - ELECTRICAL
1
5
6
9
4
2
8
7
3

Артикул

Название

Примечание

Количество

1

ZAE1001

RADIO

AM-FM Stereo, Order From Ship Direct, Also Order 321658A1 Harness for Combines P.I.N. JJC0265306 and After, Replaces ZAE1000

1шт.

2

ZAE3001

RADIO

AM-FM Stereo, With Cassette Tape Player, Order From Ship Direct, Also Order 321658A1 Harness for Combines P.I.N. JJC0265306 and After, Replaces ZAE3000

1шт.

3

321658A1

WIRE HARNESS

Adapter

1шт.

4

253772A1

RADIO

Delco, AM-FM Stereo, Also Order 245770A1 Harness for Combines Prior to P.I.N. JJC0265306, - JJC0267774

1шт.

5

253773A1

RADIO

Delco, AM-FM Stereo, Also Order 245770A1 Harness for Combines Prior to P.I.N. JJC0265306, - JJC0267774

1шт.

With Cassette Tape Player

1шт.

6

245770A1

WIRE HARNESS

Adapter

1шт.

7

366631A2

RADIO

Delco, AM-FM-WB Stereo, Start Serial: JJC0267775

1шт.

8

355623A1

RADIO

Delco, AM-FM Stereo, Start Serial: JJC0267775

1шт.

With Cassette Tape Player

1шт.

9

366526A1

WIRE HARNESS

Adapter JJC0267775, Serial Range: -JJC0268799

1шт.

Выбрано товаров: 11
