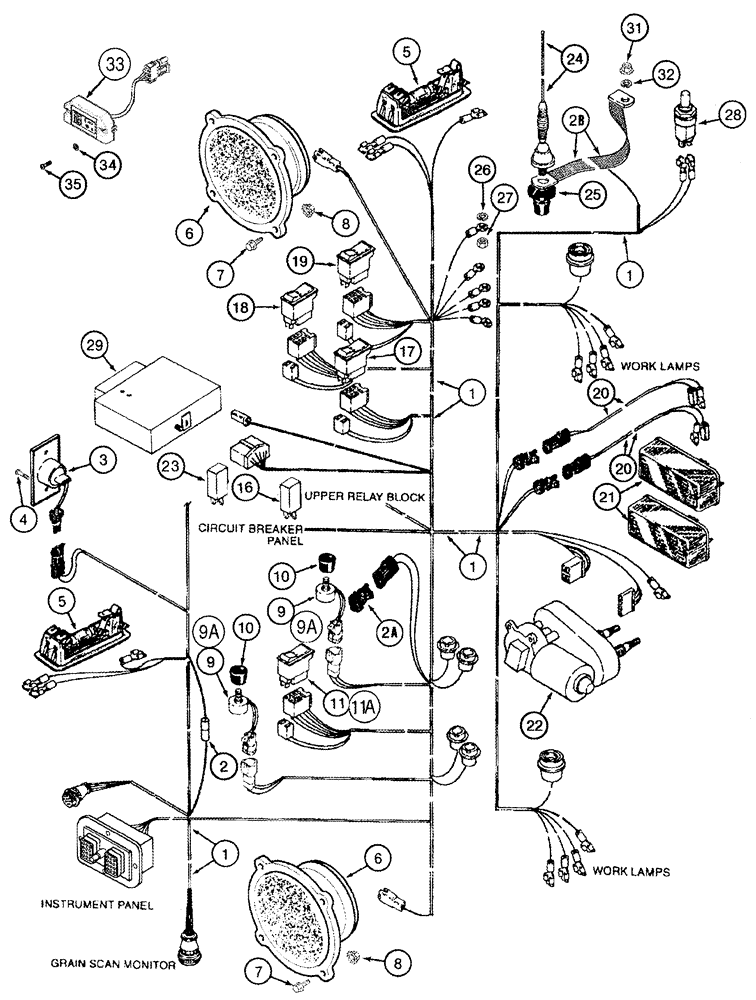

Запчасти Case IH 2388 (04-08) - HARNESS - CAB, OVERHEAD (06) - ELECTRICAL

1

276603A2

WIRE HARNESS

Cab, See Figure(s) 04-10, 04-12, Serial Range: -JJC0265305

1шт.

Note: Circuit breakers, Refs. 13 - 15, are located in cab headliner upper relay block on 276603A2 harness only.

1шт.

With Overhead Circuit Breaker Panel

1шт.

1a

315073A1

WIRE HARNESS

Cab, See Figure(s) 04-10, 04-12, Serial Range: JJC0265306-JJC0267149

1шт.

Note: Circuit breakers, Refs. 13 - 15, are located in cab headliner upper relay block on 276603A2 harness only.

1шт.

Without Overhead Circuit Breaker Panel

1шт.

Note: See Figure 04-13 for switch for cabs with Automatic Temperature Control

1шт.

1b

370779A1

WIRE HARNESS

Cab, See Figure(s) 04-11, 04-12, Not Illustrated, Serial Range: JJC0267150-JJC0268799

1шт.

Note: Circuit breakers, Refs. 13 - 15, are located in cab headliner upper relay block on 276603A2 harness only.

1шт.

Without Overhead Circuit Breaker Panel

1шт.

Note: See Figure 04-13 for switch for cabs with Automatic Temperature Control

1шт.

1c

388671A2

HARNESS

Cab, See Figure(s) 04-11, 04-12, Not Illustrated, Serial Range: JJC0270499-JJC0268800

1шт.

Note: Circuit breakers, Refs. 13 - 15, are located in cab headliner upper relay block on 276603A2 harness only.

1шт.

Without Overhead Circuit Breaker Panel

1шт.

Note: See Figure 04-13 for switch for cabs with Automatic Temperature Control

1шт.

1c

388671A3

WIRE HARNESS

Cab, See Figure(s) 04-11, 04-12, Not Illustrated, Start Serial: JJC0270500

1шт.

Without Overhead Circuit Breaker Panel

1шт.

2

113699A1

RECTIFIER

2-5/8"

1шт.

2a

A187874

MODULE

2шт.

2b

278032A1

GROUND STRAP

Radio, Serial Range: Antenna-Cab

1шт.

3

83882C91

LAMP

Console Illumination, See Figure 04-33

1шт.

4

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

5

429726A1

COURTESY LIGHT

DOME LIGHT See Figure 04-33

2шт.

6

182721A2

SPEAKER

5-1/2", Serial Range: -JJC0267774

2шт.

6

375389A1

SPEAKER

5-1/2" JJC0267775 to

2шт.

7

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

8шт.

8

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

9

114551A1

POTENTIOMETER,2500 Ohm, 500V

Air Conditioning, Fan Speed, Serial Range: -JJC0267149

2шт.

9a

369794A1

POTENTIOMETER,10,000 Ohm

Air Conditioning, Fan Speed, Start Serial: JJC0267150

2шт.

10

1977521C1

BUTTON

2шт.

11

124535A1

SWITCH

Air Conditioning, Serial Range: -JJC0267149

1шт.

Without Automatic Temperature Control

1шт.

11a

369892A1

SWITCH

Air Conditioning JJC0267150 to

1шт.

12

26069R1

BULB

No. 192, Not Illustrated

4шт.

13

139718A1

CIRCUIT-BREAKER,10 Amp, Mini

Not Illustrated, Used with 276603A2

1шт.

Note: Circuit breakers, Refs. 13 - 15, are located in cab headliner upper relay block on 276603A2 harness only.

1шт.

14

139719A1

CIRCUIT BREAKER,15 Amp, Mini

Not Illustrated, Used with 276603A2

2шт.

Note: Circuit breakers, Refs. 13 - 15, are located in cab headliner upper relay block on 276603A2 harness only.

1шт.

15

139720A1

CIRCUIT-BREAKER,20 Amp, Mini

Not Illustrated, Used with 276603A2

3шт.

Note: Circuit breakers, Refs. 13 - 15, are located in cab headliner upper relay block on 276603A2 harness only.

1шт.

16

105849A1

RELAY

20 amp, Continuous Duty, Mounted in Relay Block

5шт.

17

176854A1

WINDSHIELD WIPER SWI

1шт.

18

124095A1

LIGHT SWITCH

, Serial Range: -JJC0268799

1шт.

18

391065A1

SWITCH

Lamp JJC0268800 to

1шт.

19

279263A1

FLASHER SWITCH

Warning Lamp

1шт.

20

143062A1

WIRE HARNESS

Warning Lamp

2шт.

21

130882C91

LAMP

See Figure 04-33

2шт.

22

137838A1

WIPER MOTOR

MOTOR, WIPER See Figure 04-43

1шт.

23

391066A1

RELAY

Time Delay JJC0268800 to

1шт.

24

97080C1

ANTENNA

1шт.

25

R54547

GROMMET

1шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

27

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

28

1983341C1

SWITCH

Door Jam

1шт.

29

REF

INSTRUCTION

Radio

1шт.

Note: If Cab Is Not Equipped With A Radio, 1535219C1 Plate Is Used To Cover Opening. See Figure 09G-07 REF 10

1шт.

31

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

32

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

33

308910A2

DISPLAY

Air Conditioning, Start Serial: JJC0267150

1шт.

34

495-31022

WASHER,#10

2шт.

35

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.
