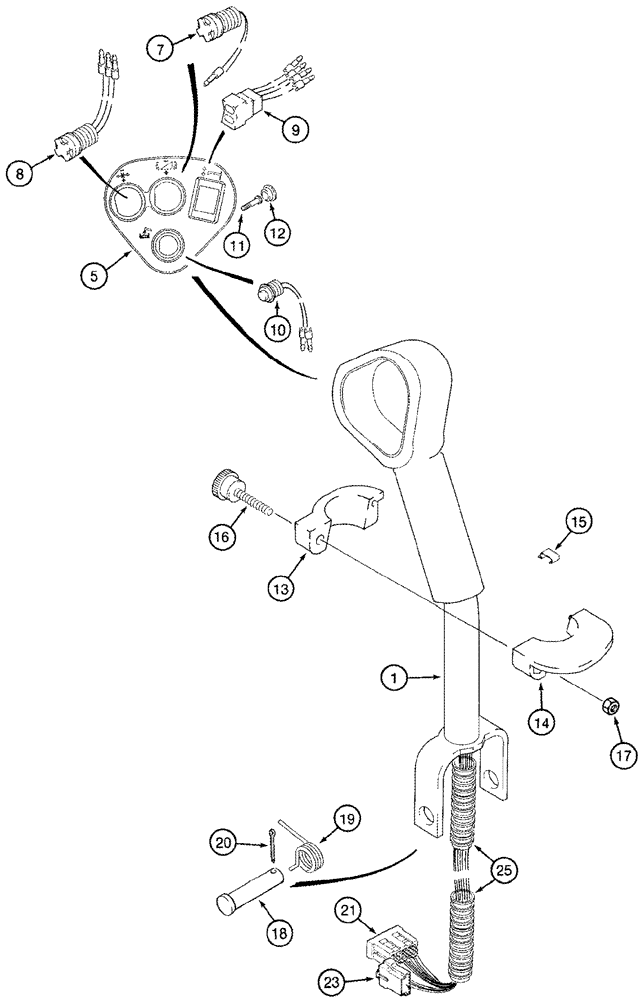

Запчасти Case IH 2388 (04-07) - LEVER ASSY - PROPULSION CONTROLS (06) - ELECTRICAL

1

113314A2

CONTROL LEVER

Propulsion

1шт.

5

124669A1

PLATE

1шт.

6

144109A2

DECAL

Not Illustrated, See Figure 09H-27

1шт.

7

132001A1

SWITCH

Header Control

1шт.

8

118680A1

SWITCH

Reel Control

1шт.

9

118683A1

SWITCH

Unloader Swing

1шт.

10

127597A1

SWITCH

Unloader Auger

1шт.

11

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

1шт.

12

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

13

116150A1

SUPPORT

Palm Rest, LH

1шт.

14

116152A1

SUPPORT

Palm Rest, RH

1шт.

15

1343962C1

CLIP,ELECTRICAL

1шт.

16

96860C1

KNOB

Palm Rest, Serial Range: -JJC0272999

1шт.

16

86987885

KNOB

Palm Rest, Start Serial: JJC0273000

1шт.

17

425-104

NUT,1/4"-20, Cl 5

1шт.

18

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

19

128593A1

SPRING

1шт.

20

432-816

COTTER PIN,1/8" x 1"

1шт.

21

225388C1

ELEC CONNECTOR,Male, 12 Pin

Type NA

1шт.

22

225390C1

WEDGE

Type NF, Not Illustrated

1шт.

23

225350C1

ELEC CONNECTOR,Male, 6 Pin

Type LY

1шт.

24

225353C1

WEDGE,Lock, Black

Type W6P, Not Illustrated

1шт.

25

120344C1

CONDUIT

184 mm (7-1/4")

1шт.
