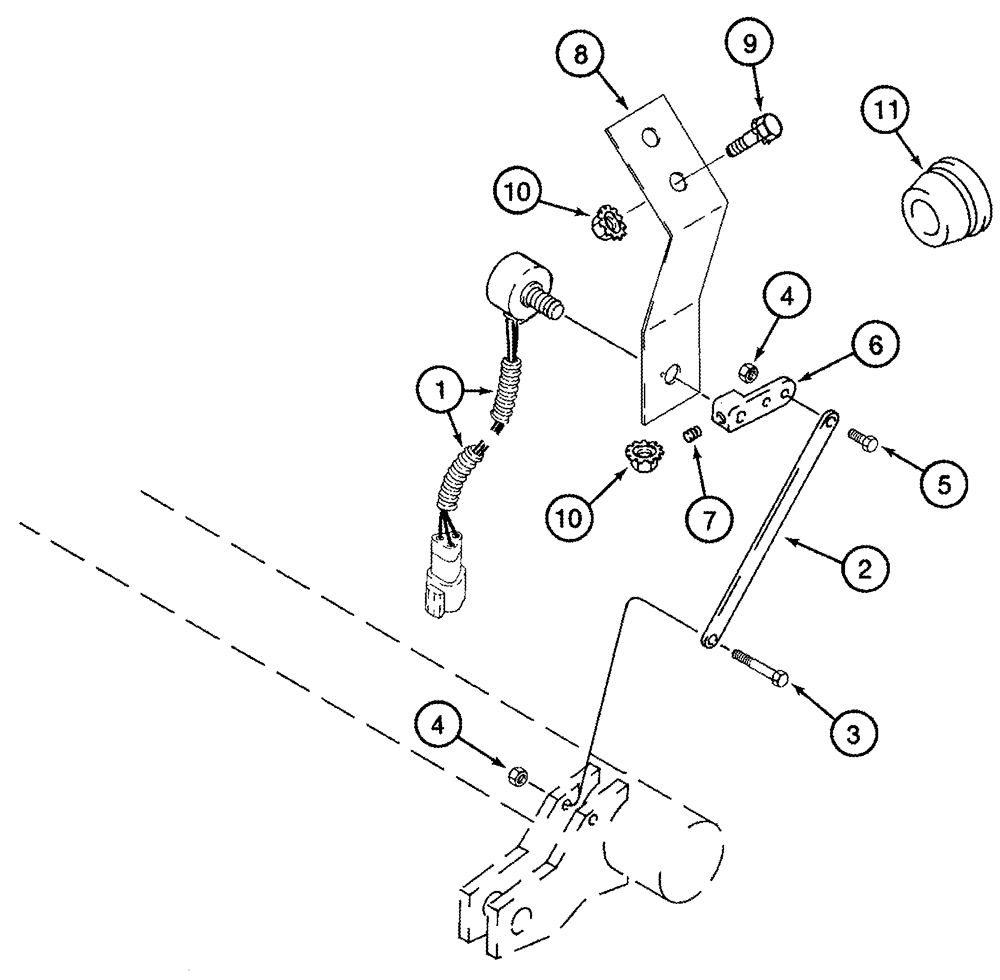

Запчасти Case IH 2388 (04-02) - POTENTIOMETER, CONCAVE POSITION - MOUNTING (06) - ELECTRICAL

1

122756A3

POTENTIOMETER,1000 Ohm, 8V

1K, Concave Position

1шт.

Note: See Figure 04-01 For Front Harness

1шт.

2

181760A2

LEVER

1шт.

3

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

1шт.

4

230-42409

NUT,#10-24, GA

2шт.

5

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

1шт.

6

131175A1

ARM

1шт.

7

483-1084

SET SCREW,Hex Soc, #8-32 x 1/4"

1шт.

8

142402A2

SUPPORT

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

11

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2" ID

1шт.
