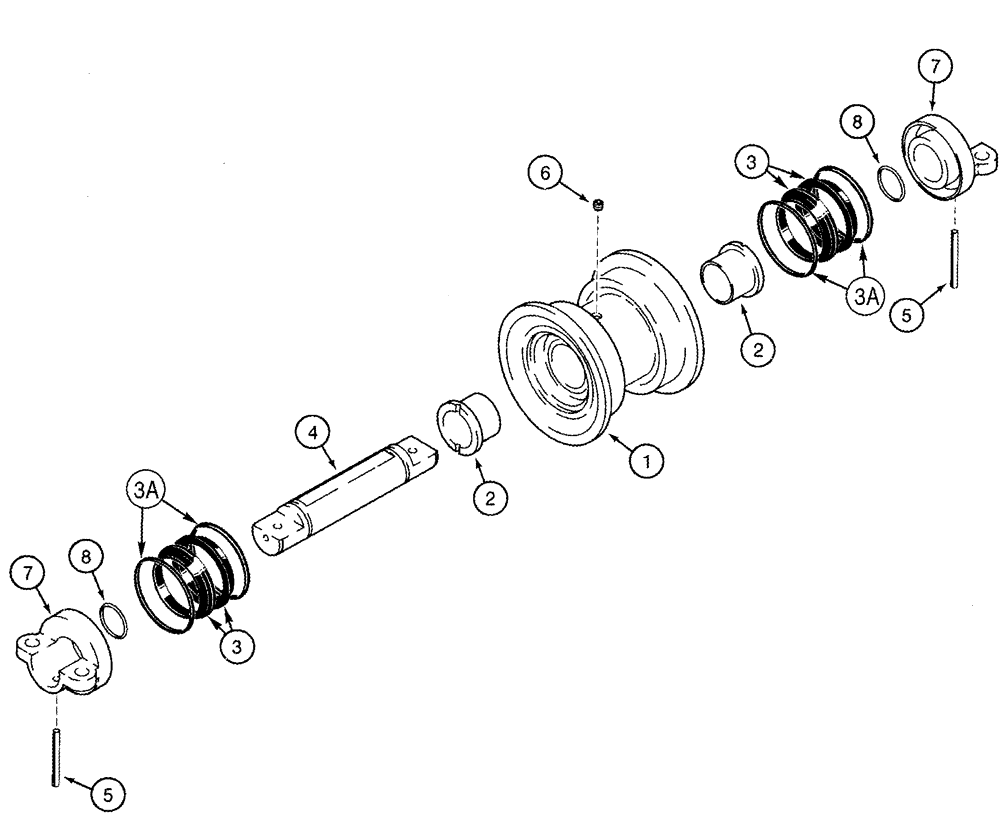

Запчасти Case IH 2388 (06-34) - TRACK - ROLLER (03) - POWER TRAIN

R57357

TRACK ROLLER

Track, Includes 1 - 8

12шт.

1

NSS

NOT SOLD SEPARAT

Shell, Includes 2

1шт.

2

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

2шт.

S113075

SEAL

Shaft

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

2шт.

3a

N6846

O-RING,75.7mm ID x 9.5mm Width

2шт.

4

R33569

SHAFT

Roller

1шт.

5

R33570

PIN

2шт.

6

R33557

PLUG

1шт.

7

R33568

BRACKET

2шт.

8

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.
