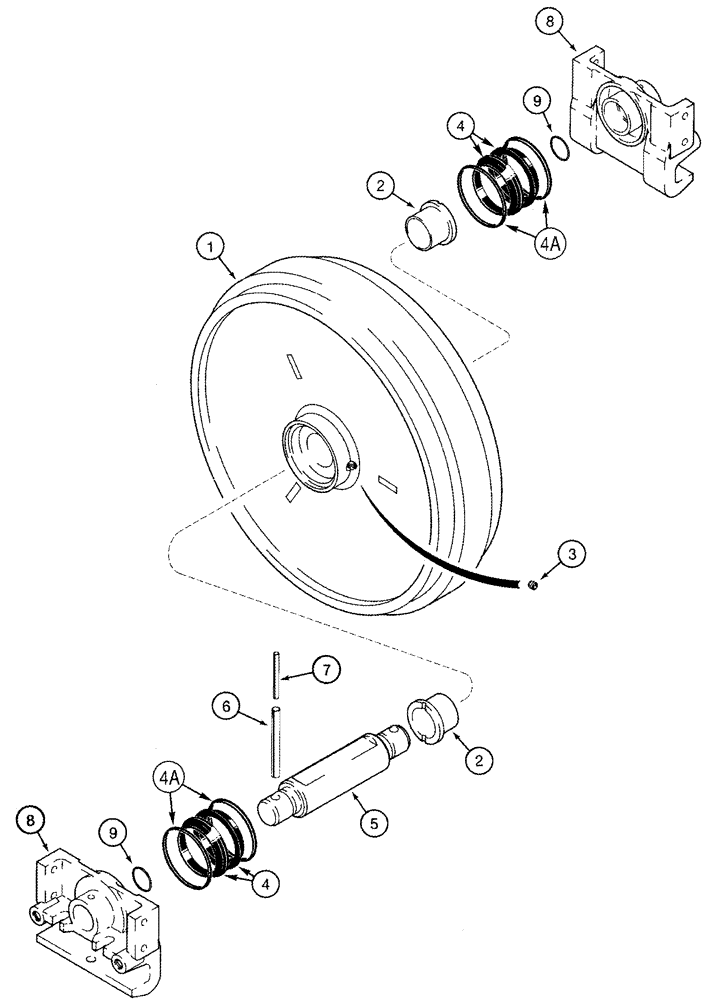

Запчасти Case IH 2388 (06-33) - TRACK - IDLER (03) - POWER TRAIN

R53591

FRONT IDLER

Track, Front And Rear, Includes 1 - 9

4шт.

1

NSS

NOT SOLD SEPARAT

Idler Assy, Track, Includes 2

1шт.

2

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

2шт.

3

R33557

PLUG

1шт.

S113075

SEAL

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

2шт.

4a

N6846

O-RING,75.7mm ID x 9.5mm Width

2шт.

5

R53596

SHAFT

Idler

1шт.

6

838-51065

LOCK PIN,M10 x 65, Slotted

2шт.

7

R53595

PIN, ROLL

6 x 65 mm

2шт.

8

R53599

BRACKET

Idler End Cap

2шт.

9

238-5221

O-RING,0.139" Thk x 1.421" ID, -221, Cl 5, 75 Duro

2шт.
